TGA300 Rev180405
34

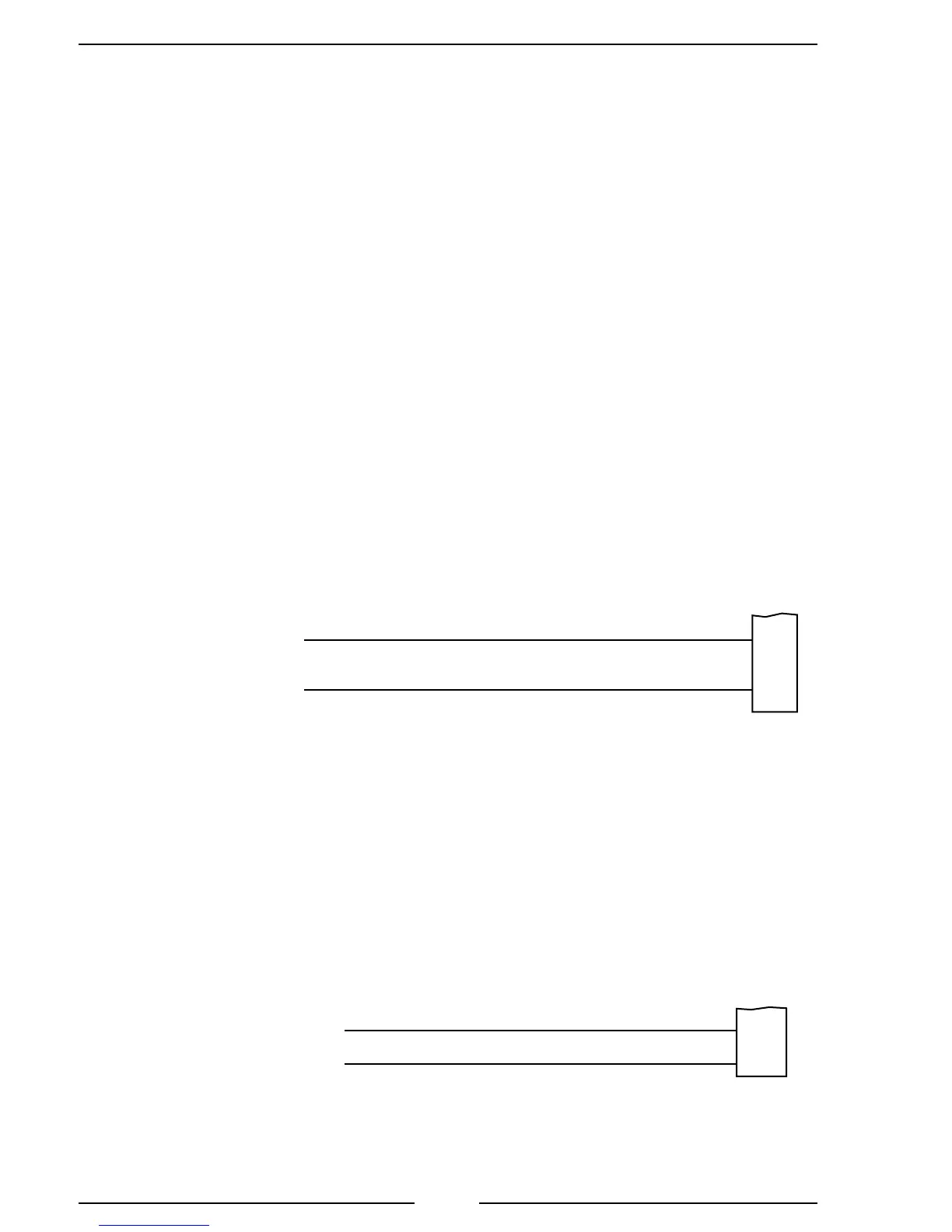

Figure 11. Navistar/International Chassis TGA304/404 Wiring
Navistar / International Chassis Harness Connections
Interface Information
Note: This function is not available on custom chassis, refer to Figure 10.
Navistar TGA304/404 Wiring.
Vehicles must be equipped with an Electronic System Controller (ESC) and have
the Body Builder J1939 Datalink available.
Remote Engine Speed must be set to ON (Feature Code 0595AHA)
Connect the Body Builder J1939 Datalink to the FRC Datalink for engine control
as shown below.
Note: Refer to Figure 4. TGA 12-Pin Connector
Wiring for power and interlock wire connections.
Note: The Body Builder J1939 Datalink is for
engine control, the J1939 CAN Bus provides
engine information to the governor.
Body Builder
J1939 Datalink (–)
Body Builder
J1939 Datalink (+)
FRC Datalink (–)
FRC Datalink (+)
F5
F6
8-Pin
Connector
(Refer to
Figure 5)
1602
(ESC J5)
Connector
Pin 6 Yellow Wire
Pin 5 Green Wire
Engine Control Output
ATA
Datalink
Connector
J1939 CAN (+)
J1939 CAN (–)
Pin 4 Red Wire
Pin 5 Black Wire
Pin C
Pin D
12-Pin
Connector
(Refer to
Figure 4)
Engine Information Input
