TGA300 Rev180405
30
Common OEM Diagnostic Connector

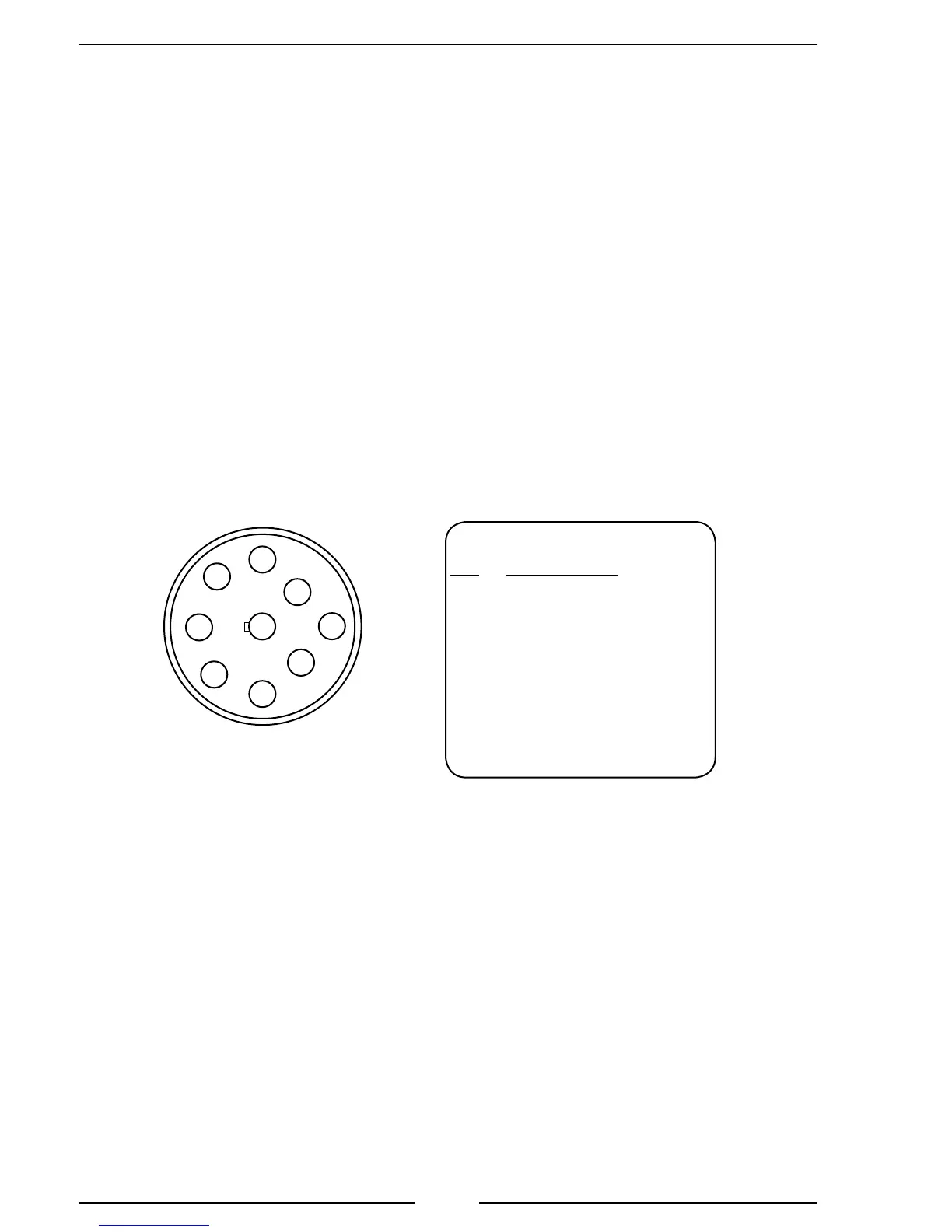

Figure 7. Common OEM 9-Pin Diagnostic Connector
Front View
B
F
E
A
C
D
G
H
J
Typical 9-Pin Deutsch Diagnostic Connector.
Commonly found under the driver side dashboard.
9-Pin Connector
Pin Description
A Battery Ground
B +12 VDC
C J1939 CAN (+)
D J1939 CAN (–)
E J1939 Shield
F J1587 DATA BUS (+)
G J1587 DATA BUS (–)
H Plug
J Plug
