Scania BCI Harness Connections—Type D
Interface Information
For use with BCI (Bodywork Communication Interface) module.

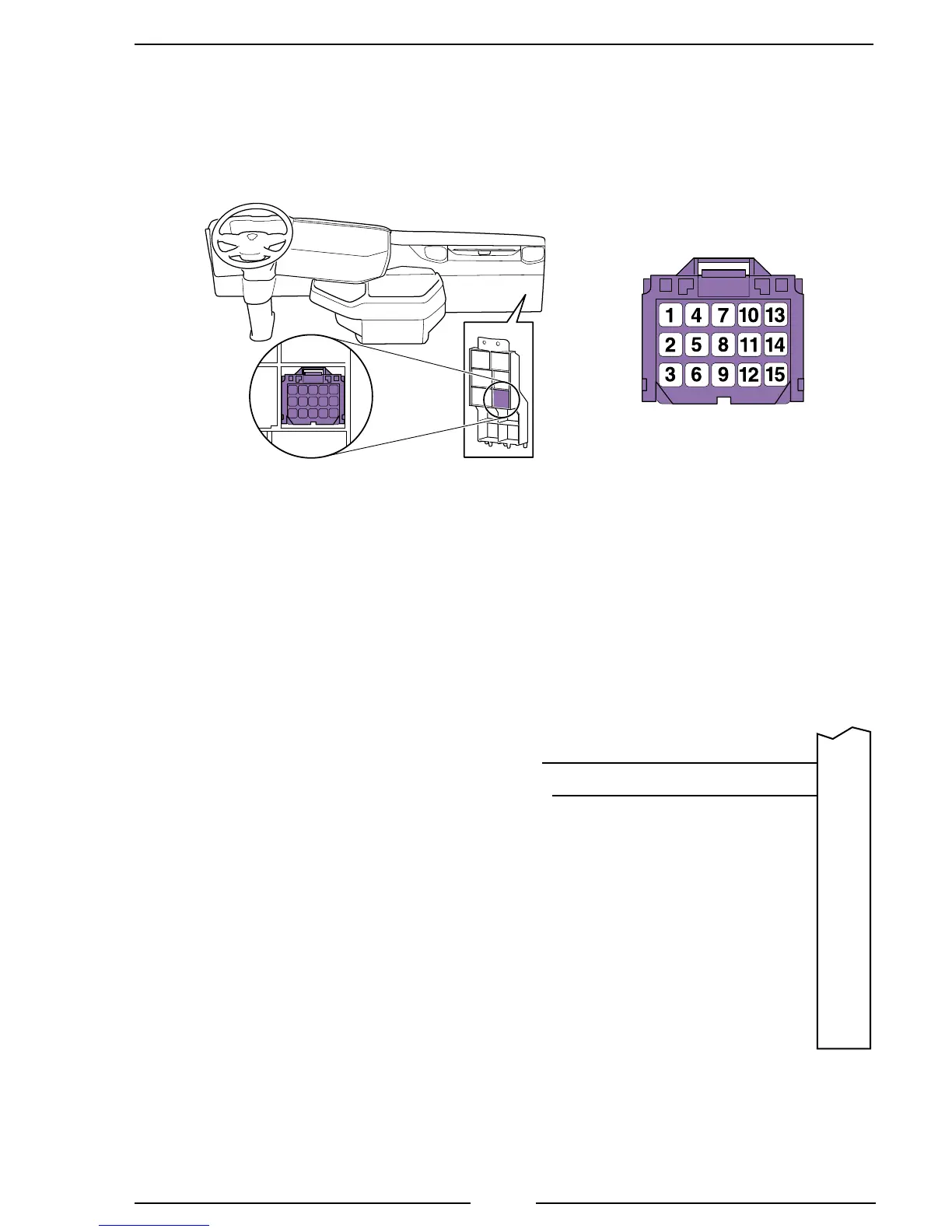

Figure 17. Scania TGA308/408 Wiring—Type D
Note: Refer to Figure 4. TGA Connector Wiring for
power and interlock wire connections.
Connector C493 is located in
the bodywork console.
Positions in
connector C493
12-Pin
Connector
(Refer to
Figure 4)
J1939 CAN high
4
J1939 CAN low
3
Pin 4 Red Wire
Pin 5 Black Wire
C493
Connector
