Removing an d installing components
during servicing

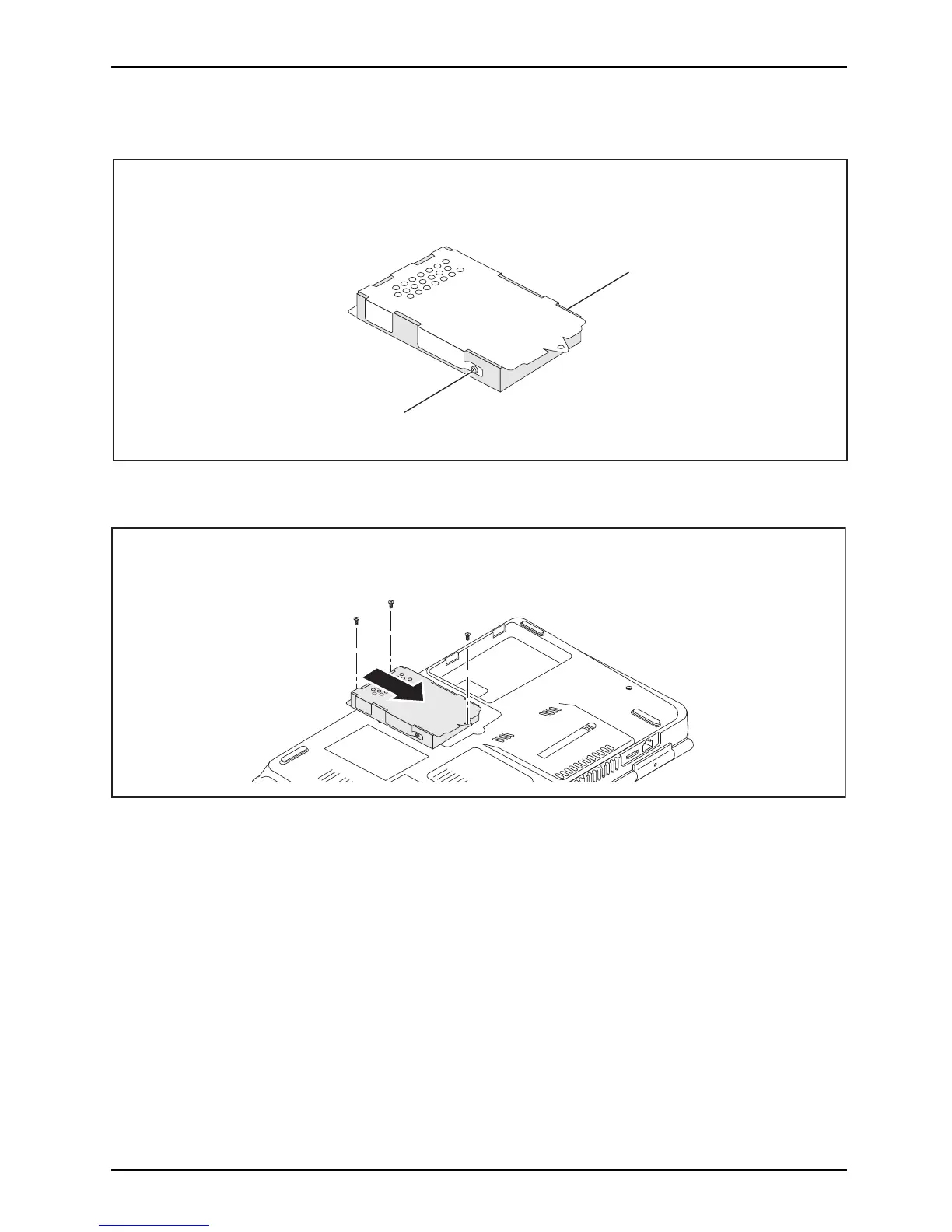

Installing a hard disk
1
1
► Insert the hard disk into the hard disk carrier.
► Fasten the hard disk carrier with the screws (1).
1
2
2
2
1
► Place the hard disk in the hard disk compartment and push it into the h ard disk
compartment (1). Ensure that the contact s engage.
► Fasten the scr
ews (2).
Fujitsu Technology Solutions 63
