Furuno FCV-800 - System Configuration

ix

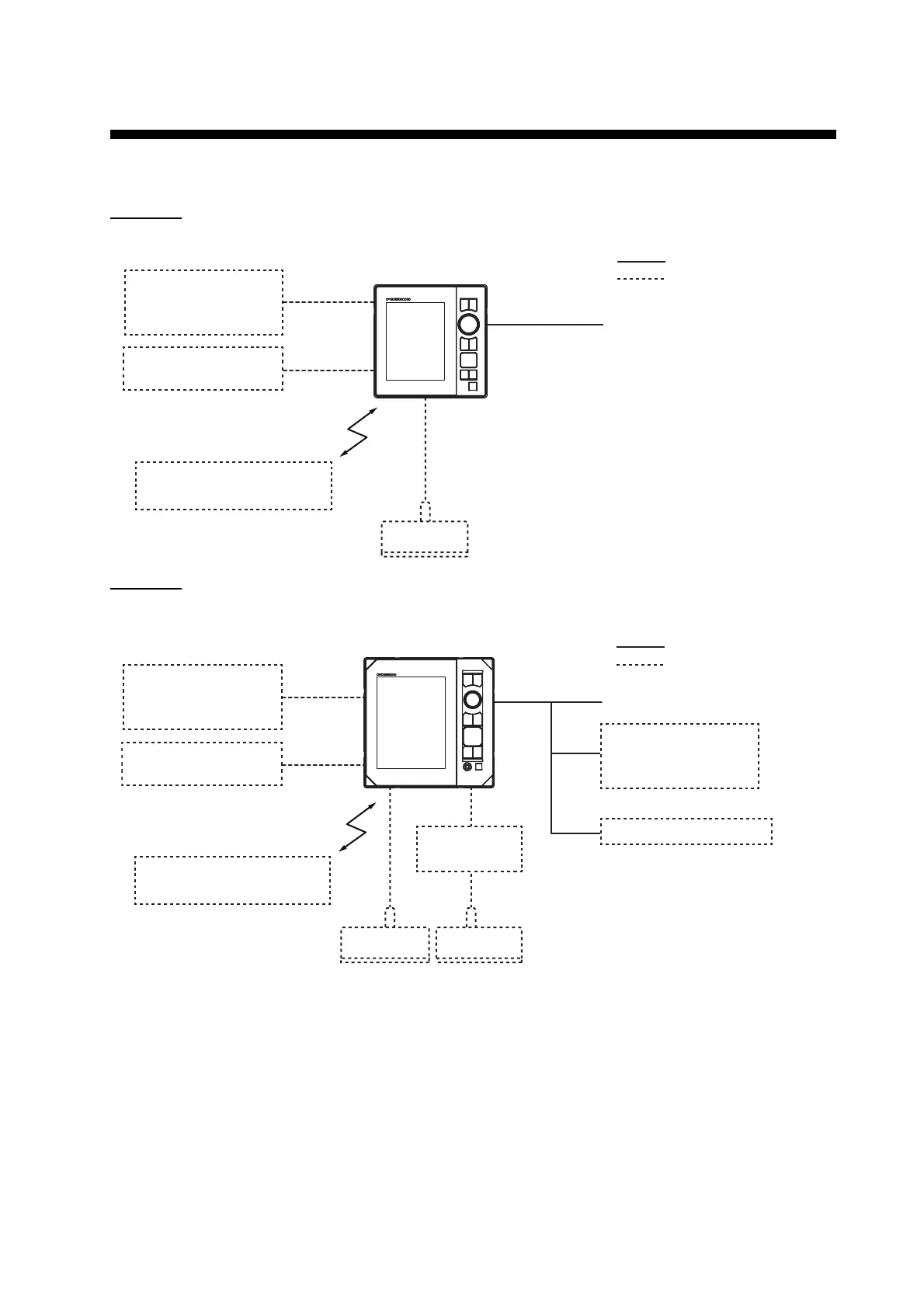

SYSTEM CONFIGURATION
Note 1: See "TRANSDUCER LIST" on page AP-5 for compatible transducers.
FCV-600
FCV-800
FISH FINDER
FCV-600
12-24VDC
Transducer
䠖
Standard supply
䠖
Optional or local supply
iOS/Android
TM
device
FCV-600 unit䠄Submonitor䠅
Wireless LAN Connection
USB Flash memory
䠄For maintenance䠅
NMEA2000 Device
䠄GPS Receiver㻘
Satellite Compass
TM
䠅
FISH FINDER䚷
FCV-800
12-24VDC
Transducer
䠖
Standard Supply
䠖
Optional or local supply
iOS/Android
TM
device
FCV-800 unit䠄Submonitor䠅
Wireless LAN Connection
USB Flash memory
䠄For maintenance䠅
NMEA2000 Device
䠄GPS Receiver㻘
Satellite Compass
TM
䠅
Transducer
Matching Box
MB-1100*
External KP Equipment
NMEA0183 Device
䠄GPS Navigator㻘
Wind Indicator䠅
*: Required when 200B-5S, 50B-6, 50B-6B or 50/200-1T is connected only.
Note 2: The optional cable assembly (type: FRU-MJ10CCB12-300) is required for
B265LH-FJ12/ TM265LH-FJ12/ CM265LH-FJ12 transducers (FCV-800 only).
