Furuno FCV-800 User Manual

AP-1

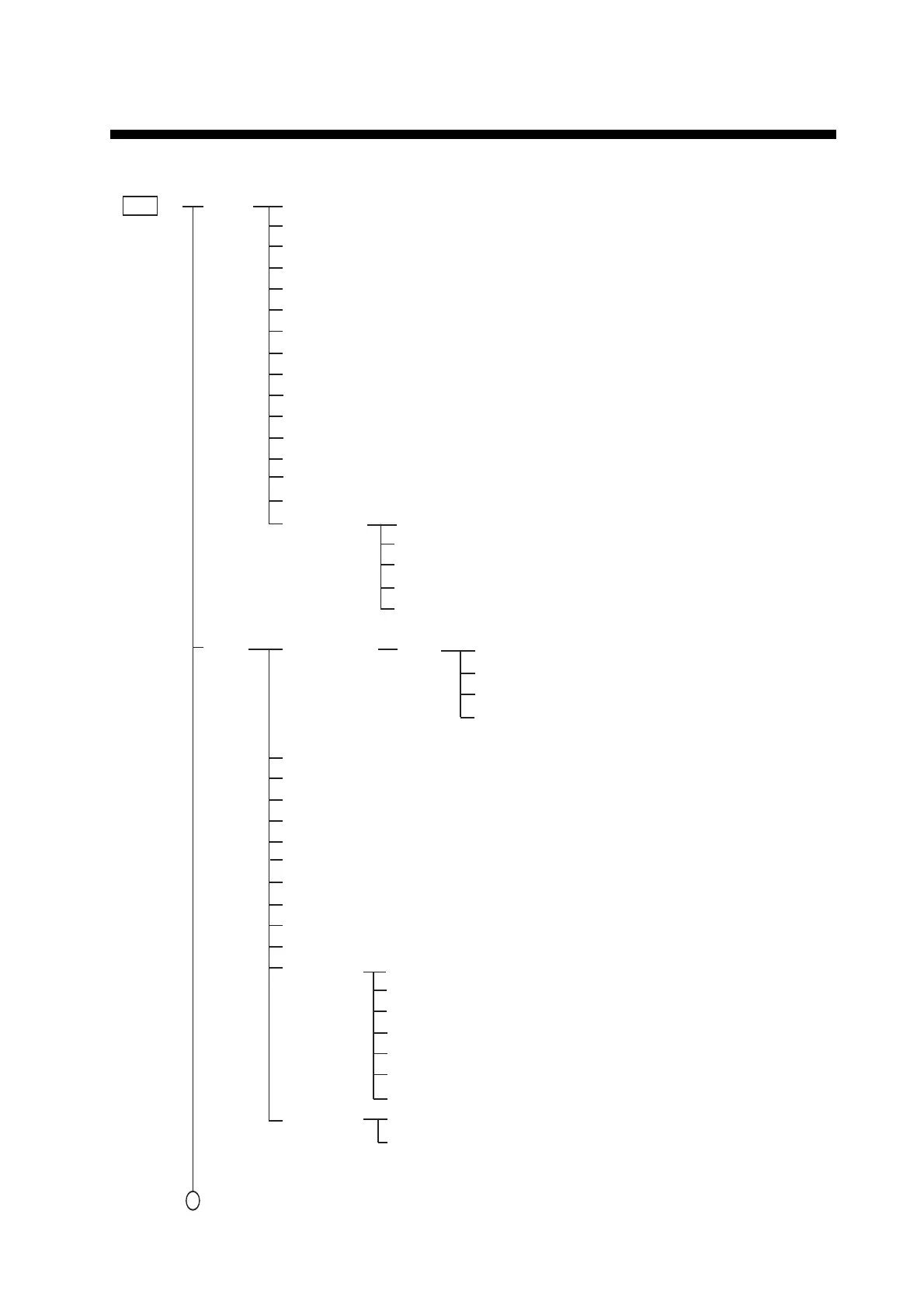

APPX. 1 MENU TREE
Window Size*¹⁰
,
#
A-Scope (Off, Normal, Peak)
Depth Size (Off, Large, Medium, Small)
Zoom Marker (Off, On)
Graph (Off, Narrow, Wide)
Color Bar (Off, On)
Color Scheme (White, Blue, Black, Yellow, Sunlight)
Echo Colors (64,16,8)
Header Info (Off, On)
Header Scale (Time, Distance)
ACCU-FISH*¹¹
Bottom Disc.*¹²
MENU key
Sounder
Display
Bold Italic: Default
Pic. Advance (x8, x4, x2, x1, 1/2, 1/4, 1/8, 1/16, Stop)
Range Shift*¹
,
*³ (0 - 4000 ft, 0 ft)
Interference (Auto, High, Medium, Low, Off)
Color Erase (0 - 50%, 0%)
Clutter*² (0 - 100%, 0%)
Color Expand*² (Off, On)
White Line (0 - 100%, Edge)
Marker
TVG Distance*² (100~3000 ft, 300 ft)
TVG Level*² (0~9, 3)
Smoothing (Off, On)
Bottom Zone
#
,
*³
TX Power*⁴
,
#
(1~5, Off, 5)
TX Rate
#
(1 - 10, S, Max, 10)
RezBoost*⁵
,
#
(Off, On)
CHIRP Preset
#
,
*⁶ Select (1,2,3)
TX Mode HF*⁷ (Auto CHIRP, Manual CHIRP, CW)
TX Mode LF*⁷ (Auto CHIRP, Manual CHIRP, CW)
Center Freq.*⁸
CHIRP Width*⁸
ACCU-FISH (Off, On)
Fish Info (Off, Fish Size, Depth)
Info Size (Small, Large)
Fish Symbols (Off, Striped, Solid, Circle, Square)
Symbols Area (Dual, Right Disp., Left Disp.)
Fish Detect From (+10~199cm, +10cm)
Fish Detect Span (+1~199cm, +150cm)
Bottom Disc. (Off, Graphic, Probability)
Legend (Off, On)
*¹: Available when [Range] is set to [Manual].
*²: Available when [Auto Gain] is set to [Off].
*³: Available when [Bottom Disc.] is set to [Off].
Disp Mode Config
#
Mode1-
Mode7
Disp Setting*⁹ (Off, No Split, Split)
Disp Select*⁹ (Select from the list)
Right Disp Select*⁹ (CHIRP HF, CHIRP MF, CHIRP LF, CW HF, CW LF)
Left Disp Select*⁹ (CHIRP HF, CHIRP MF, CHIRP LF, CW HF, CW LF,
Bottom Lock, Bottom Zoom, Marker Zoom, NAV2, NAV3, NAV4)
*⁹: Default value differ depending on the connected transducer.
*⁴: Available when [Bottom Disc.] or [ACCU-FISH]
is set to [Off].
*⁵: Shown when CW transducer is connected only.
(For FCV-800, not shown if CW and CHIRP transducers
are connected at the same time.)
*⁶: Shown when CHIRP transducer is connected only.
*⁷: Displayed menu items differ depending
on the connected transducer.
*¹¹: Shown when transducer for ACCU-FISH
TM
is connected only.
*¹⁰: Available when [A-Scope] is set to [Off].
*
¹²: Shown when transducer for Bottom Disc. is connected only.
*⁸: Setting range and default value differ depending
on the connected transducer.
#
: Grayed-out on the sub-monitor side.
