1. OPERATION

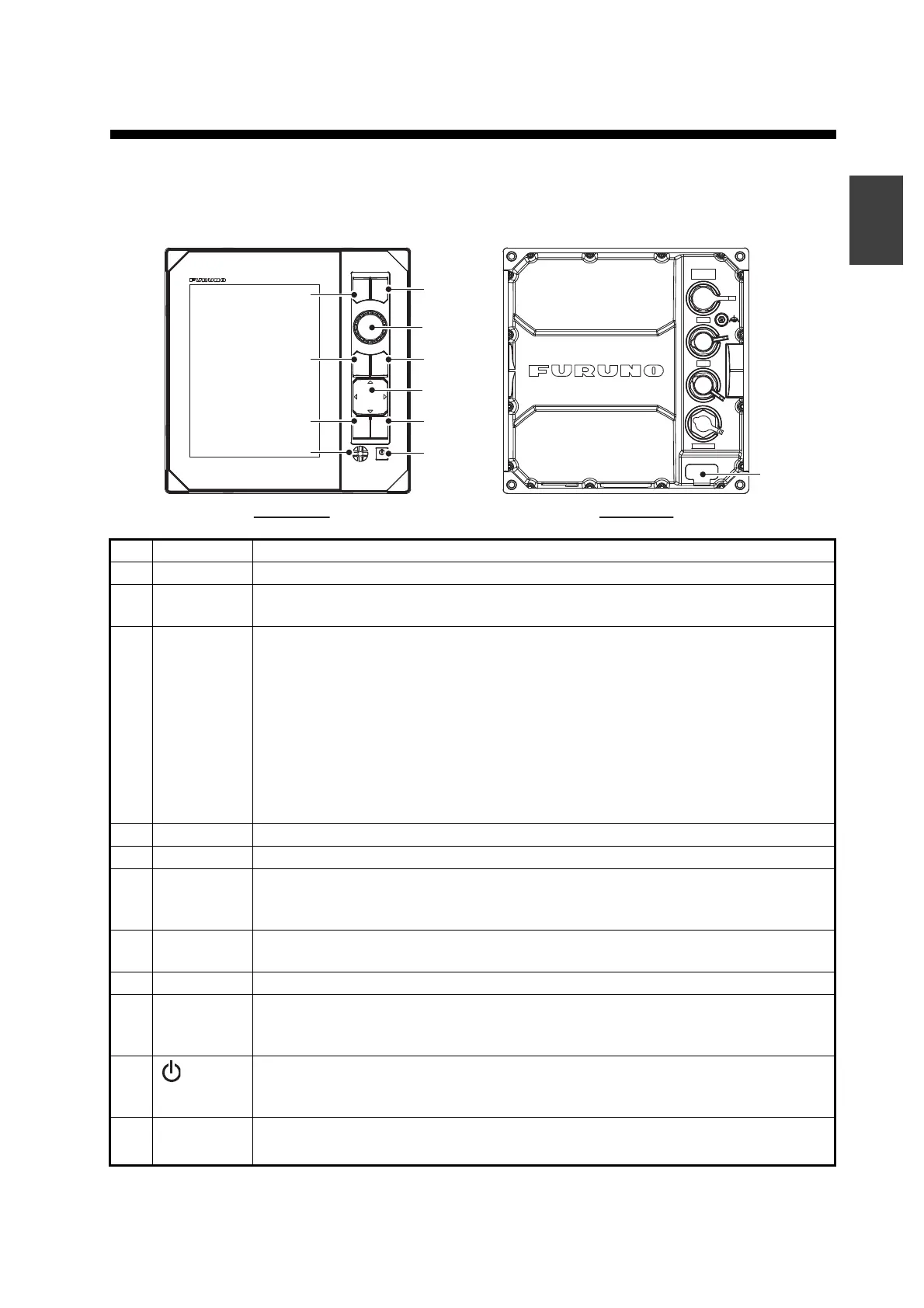

1.1 Control Description
No. Control Function
1 MODE Opens [MODE] selection window.
2MENU/
ESC
• Opens/closes the menu.
• Escapes from current operation and go back one page in menu.
3KNOB Rotate*:
• Selects items on the menu.
• Changes settings.
• Adjusts gain (Requires [Auto Gain] to be set as [Off].)
*: Clockwise: Increases numerical value. Moves the cursor down (or right).
Counter-clockwise: Decreases numerical value. Moves the cursor up (or left).
Press:
• Confirms the selected menu/operation.
• Applies the gain adjustment. (Selected by rotating; requires [Auto Gain] to be
set as [Off].)
4 RANGE Opens range selection window.
5 GAIN Opens [Auto Gain] setting window.
6
(TrackPad)
• : Moves marker cursor.
• : Moves the VRM (Variable Range Marker). Disabled for nav display.
• : Switches to scroll back mode. Disabled for nav display.
7 FUNC Short press: Opens programmed window.
Long press: Opens setting window for function key.
8 MARK Registers waypoint.
9Buzzer
(FCV-800
only)
Activates/deactivates key beeps and alarm sounds.
10
/BRILL
Short press: Turns on power; opens the [Brilliance/Panel Dimmer] adjustment
window.
Long press: Turns off power.
11 USB port
cover
Open the cover and insert USB flash memory.
Note: Make sure to close the cover when not used.
MODE
MENU/
ESC
RANGE GAIN
FUNC MARK
BRILL
XDR1
XDR2
PWR/KP
NMEA0183
NMEA2000
䐟䐟
䐠
䐡
Front side Back side
䐢䐢 䐣
䐤
䐥䐥
䐦
䐨
䐩
䐧䐧
To Next Page
