1. OPERATION
1-4

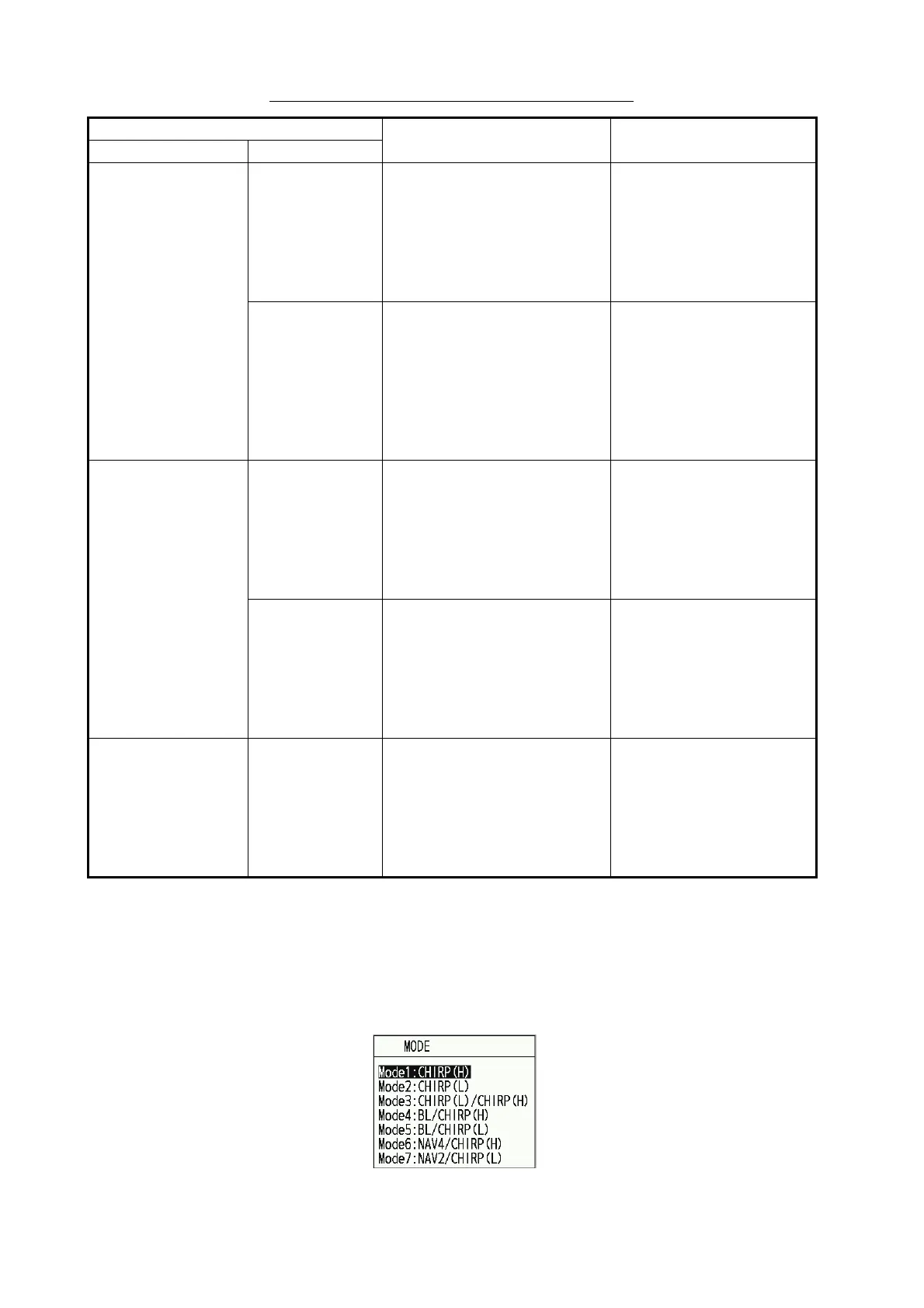

Default settings of [Mode] window (for FCV-800)
*: M or H is entered depending on the type of connected transducer.
1.5.1 How to change the display mode
1. Press the MODE key to open the [Mode] setting window. The window automati-
cally closes if there is no key operation for approx. six seconds.
Transducer
[Mode] window Abbreviation
Setting Type
When XDR1 / XDR2
is set to [On]
XDR1: CHIRP
XDR2: CHIRP
Mode1: CHIRP (*)
Mode2: CHIRP (L)
Mode3: CHIRP (L)/ CHIRP (*)
Mode4: BL/ CHIRP (*)
Mode5: BL/ CHIRP (L)
Mode6: NAV4/ CHIRP (*)
Mode7: NAV2/ CHIRP (L)
CHIRP: CHIRP transducer
L: Low frequency
M: Medium frequency
H: High frequency
BL: Bottom lock
NAV: Navigation (split into
2:2 or 4:4 display)
XDR1: CW (L/H)
XDR2: CHIRP
Mode1: CHIRP (*)
Mode2: CW (H)
Mode3: CW (L)/ CW (H)
Mode4: BL/ CHIRP (*)
Mode5: BL/ CW (H)
Mode6: NAV4/ CHIRP (*)
Mode7: NAV2/ CW (H)
CW: CW transducer
CHIRP: CHIRP transducer
L: Low frequency
M: Medium frequency
H: High frequency
BL: Bottom lock
NAV: Navigation (split into
2:2 or 4:4 display)
When XDR1 is set
to [On], XDR2 is set
to [Off]
XDR1: CHIRP Mode1: CHIRP (L)
Mode2: CHIRP (L) BL
Mode3: BL/ CHIRP (L)
Mode4: NAV4/ CHIRP (L)
Mode5: NAV2/ CHIRP (L)
Mode6: Off
Mode7: Off
CHIRP: CHIRP transducer
L: Low frequency
BL: Bottom lock
NAV: Navigation (split into
2:2 or 4:4 display)
XDR1: CW (L/H) Mode1: CW (H)
Mode2: CW (L)
Mode3: CW (L) / CW (H)
Mode4: BL / CW (H)
Mode5: BL / CW (L)
Mode6: NAV4 / CW (H)
Mode7: NAV2 / CW (L)
CW: CW transducer
L: Low frequency
H: High frequency
BL: Bottom lock
NAV: Navigation (split into
2:2 or 4:4 display)
When XDR1 is set
to [Off], XDR2 is set
to [On]
XDR2: CHIRP Mode1: CHIRP (*)
Mode2: CHIRP (*) BL
Mode3: BL/ CHIRP (*)
Mode4: NAV4/ CHIRP (*)
Mode5: NAV2/ CHIRP (*)
Mode6: Off
Mode7: Off
CHIRP: CHIRP transducer
M: Medium frequency
H: High frequency
BL: Bottom lock
NAV: Navigation (split into
2:2 or 4:4 display)
