7-1
7. NBDP SYSTEM OVERVIEW
7.1 How to Turn on the NBDP System
Turn on the terminal unit and the printer with their respective power switches.
Note 1: To power on the system, turn on the control unit then turn on the NBDP ter-
minal unit.
Note 2: The printer PP-510 prints messages. Refer to its operator's manual for oper-
ation.
7.2 Description of Equipment
7.2.1 Terminal unit
The terminal unit is a visual display incorporating a floppy disk drive (for IB-583) or an
SD card drive (IB-585). To adjust the brilliance, press the Alt key while pressing the
F6 key to lower the brilliance; the F7 key to raise it. 8 levels of brilliance are available
for IB-583 and 11 levels for IB-585.
When the terminal unit is turned on, the communication status screen, shown on the
next page, appears. This is where all phases of telex communications begin.

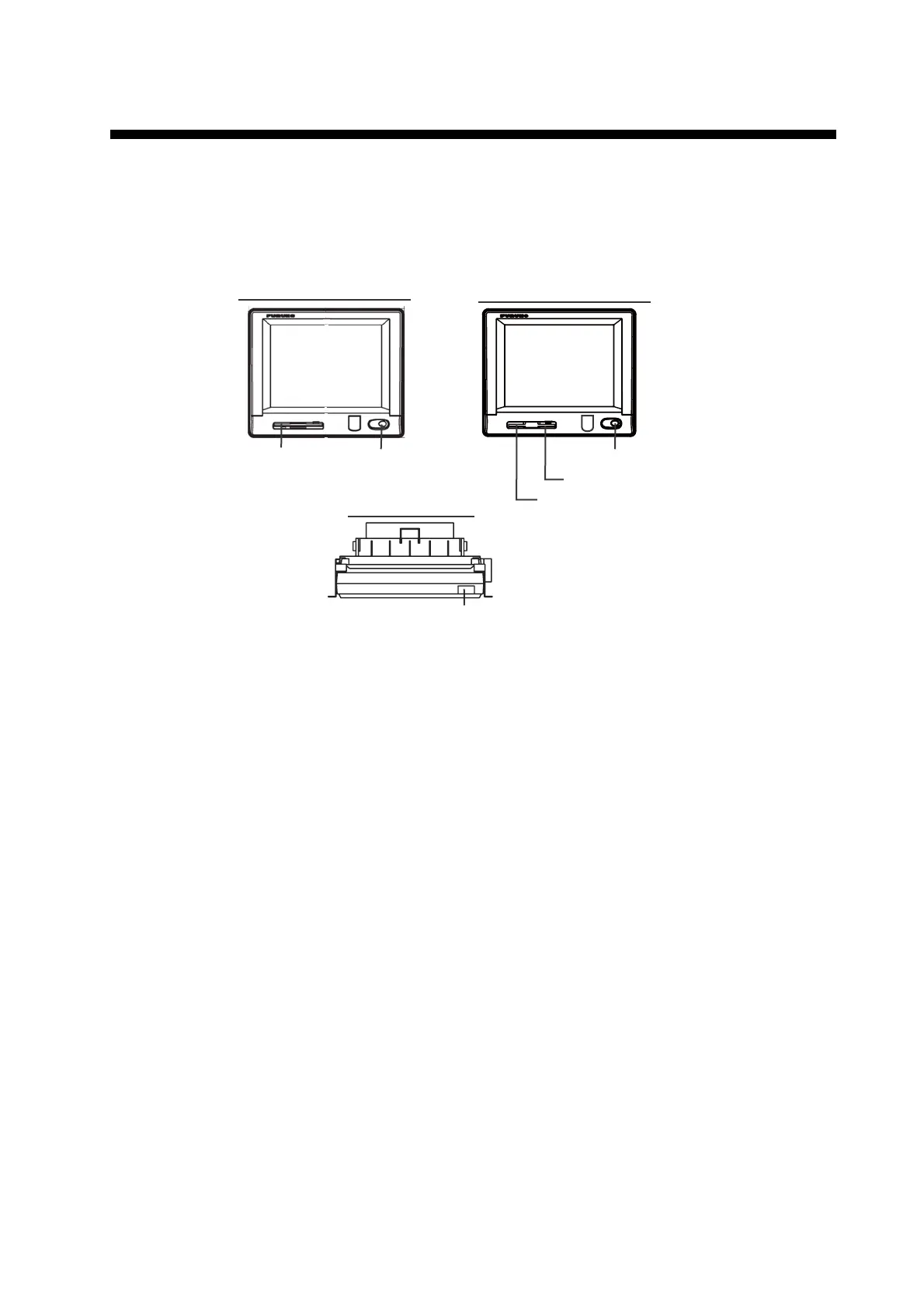

TERMINAL UNIT IB-583
Power switch
Floppy disk drive
PRINTER PP-510
Power switch
TERMINAL UNIT IB-585
Power switch
SD card drive
The power switch
backlights for
IB-583 and IB-585
light in green
during power-on.
USB connector (Connect the
keyboard here.)
To Next Page
