6. MENU OPERATION
6-11
4. Rotate the ENTER knob to select [ENABLE] or [DISABLE] then push the knob.
For [ENABLE], "FAX" is added to the class of emission selection menu.
6.11 How to Select the Antenna
Select the antenna to use for TX and RX, common or separate.
1. Rotate the ENTER knob to select [SYSTEM] on the [MENU] screen then push the
knob.
2. Rotate the ENTER knob to select [RX SETUP] then push the knob.
3. Rotate the ENTER knob to select [ANT SELECT] then push the knob.
4. Rotate the ENTER knob to select [TRX ANT] or [RX ANT] then push the knob.
Note 1: You can not select [RX ANT] without R_ANT. Contact your dealer.
Note 2: When sharing the WR antenna with R_ANT, select [RX ANT] so that you
can always watch the frequency during transmission.
6.12 Clarifier Setting
You can fine-tune the receiving frequency with the clarifier.
1. Rotate the ENTER knob to select [SYSTEM] on the [MENU] screen then push the
knob.
2. Rotate the ENTER knob to select [RX SETUP] then push the knob.
3. Rotate the ENTER knob to select [CLARIFIER] then push the knob.
4. Rotate the ENTER knob to select [ON] or [OFF] then push the knob.

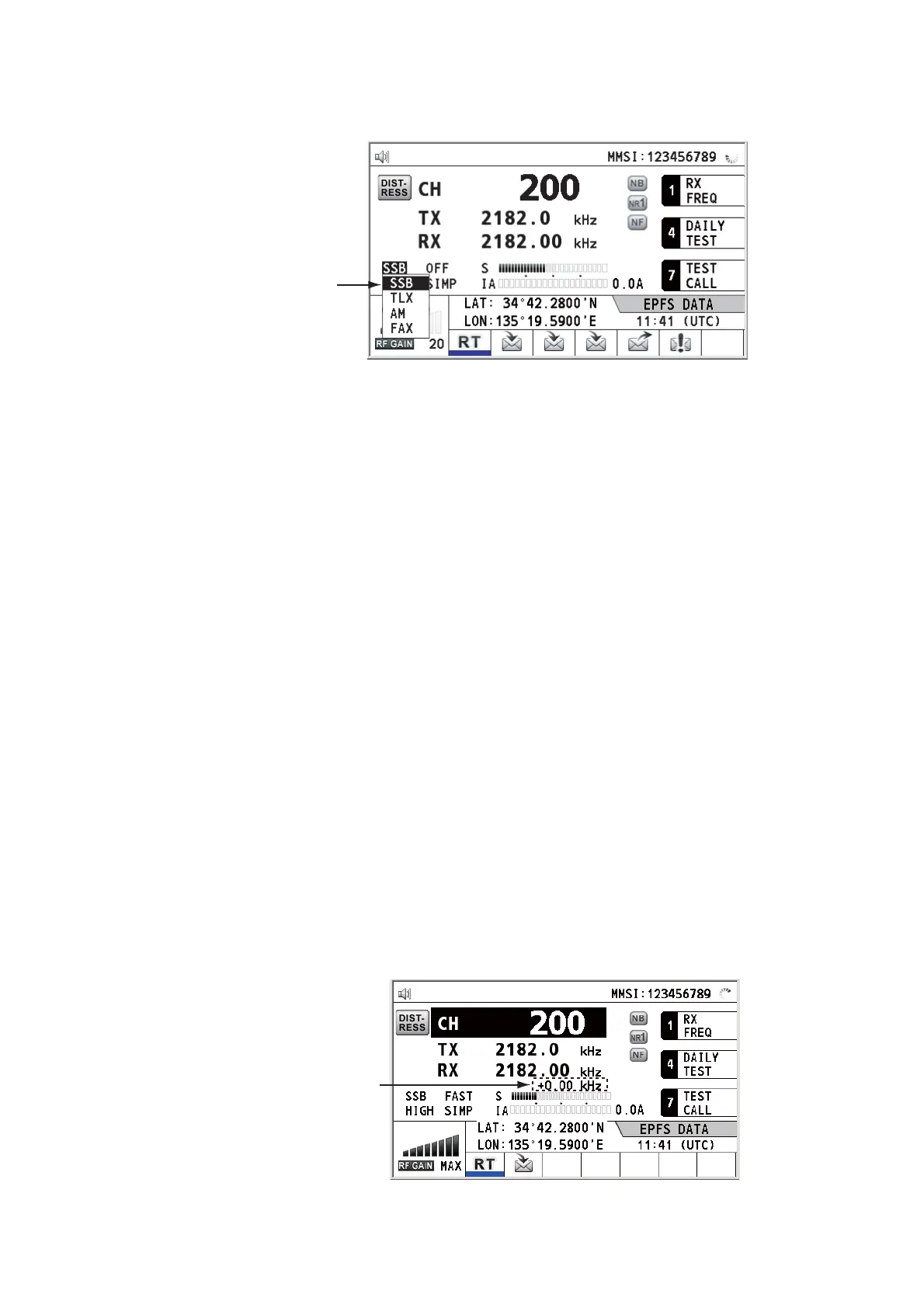

For [ON], the indication for clarifier setting appears on the RT screen as shown
below.
Class of
emission
Indication for
clarifier setting
To Next Page
