190-02692-00 Rev. AGarmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga114
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

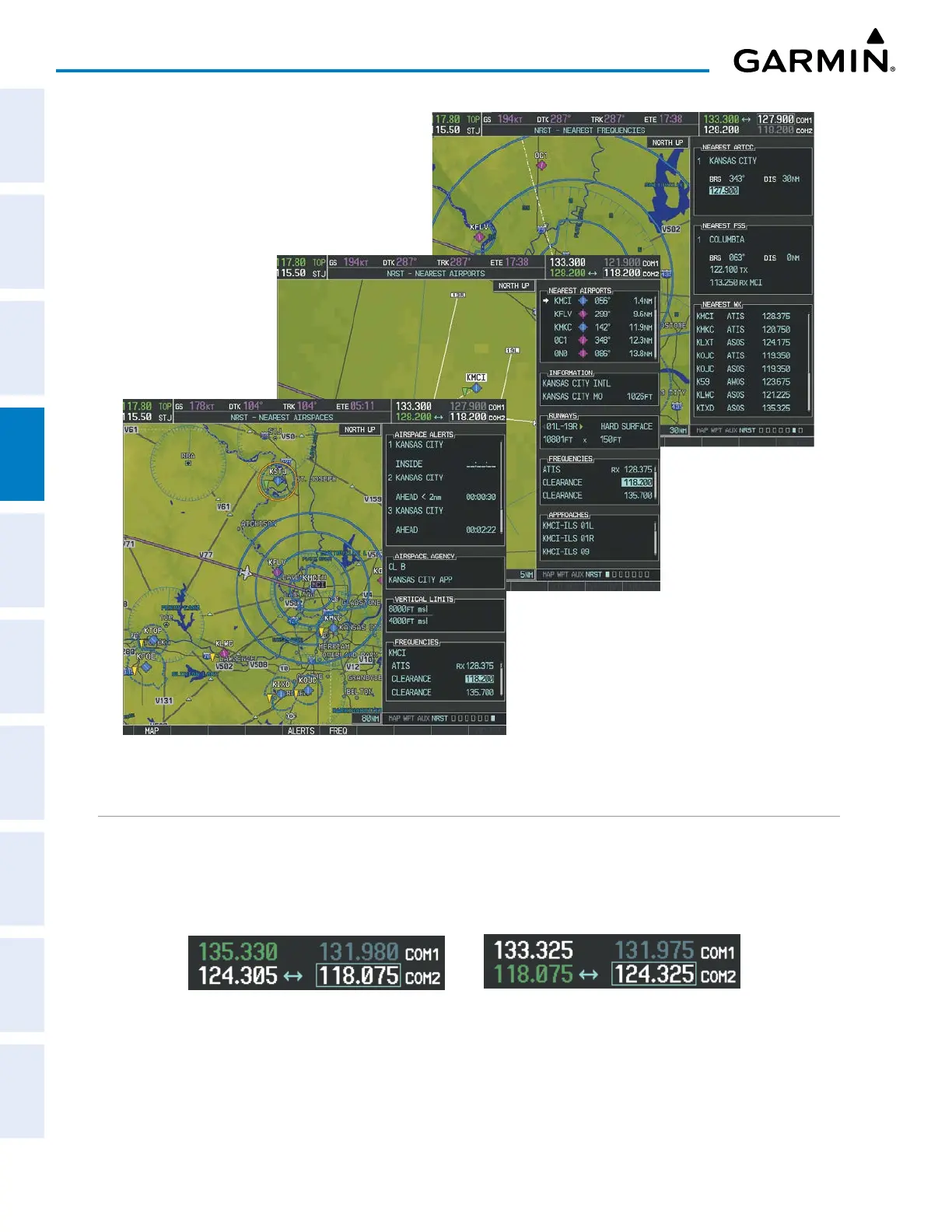

Figure 4-12 NRST Page Group
FREQUENCY SPACING
The G1000 COM radios can tune either 25-kHz spacing (118.000 to 136.975 MHz) or 8.33-kHz spacing
(118.000 to 136.990 MHz) for 760-channel or 3040-channel configuration. When 8.33-kHz channel spacing
is selected, all of the 25-kHz channel spacing frequencies are also available in the complete 3040-channel list.
COM channel spacing is set on the AUX - SYSTEM SETUP Page.
Figure 4-13 COM Channel Spacing
25-kHz Channel
Spacing
8.33-kHz Channel
Spacing
To Next Page
