190-02692-00 Rev. A
Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
133
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
4.5 ADDITIONAL AUDIO PANEL FUNCTIONS
POWER APPLICATION
The audio panel performs a self-test when power is applied. During the self-test all audio panel annunciation
lights illuminate for approximately two seconds. Once the self-test is completed, most of the settings are
restored to those in use before the unit was last turned off.
MONO/STEREO HEADSETS
Stereo headsets are recommended for use in this aircraft.
Using a monaural headset in a stereo jack shorts the right headset channel output to ground. While this does
not damage the audio panel, a person listening on a monaural headset hears only the left channel in both ears.
If a monaural headset is used at one of the passenger positions, any other passenger using a stereo headset hears
audio in the left ear only.
SPEAKER
All of the radios can be heard over the cabin speaker. Pressing the
SPKR
Key selects and deselects the cabin
speaker. Speaker audio is muted when the PTT is pressed. Certain aural alerts and warnings (autopilot, traffic,
altitude) are always heard on the speaker, even when the speaker is not selected.
The speaker volume is adjustable within a nominal range. Contact a Garmin-authorized service center for
volume adjustment.

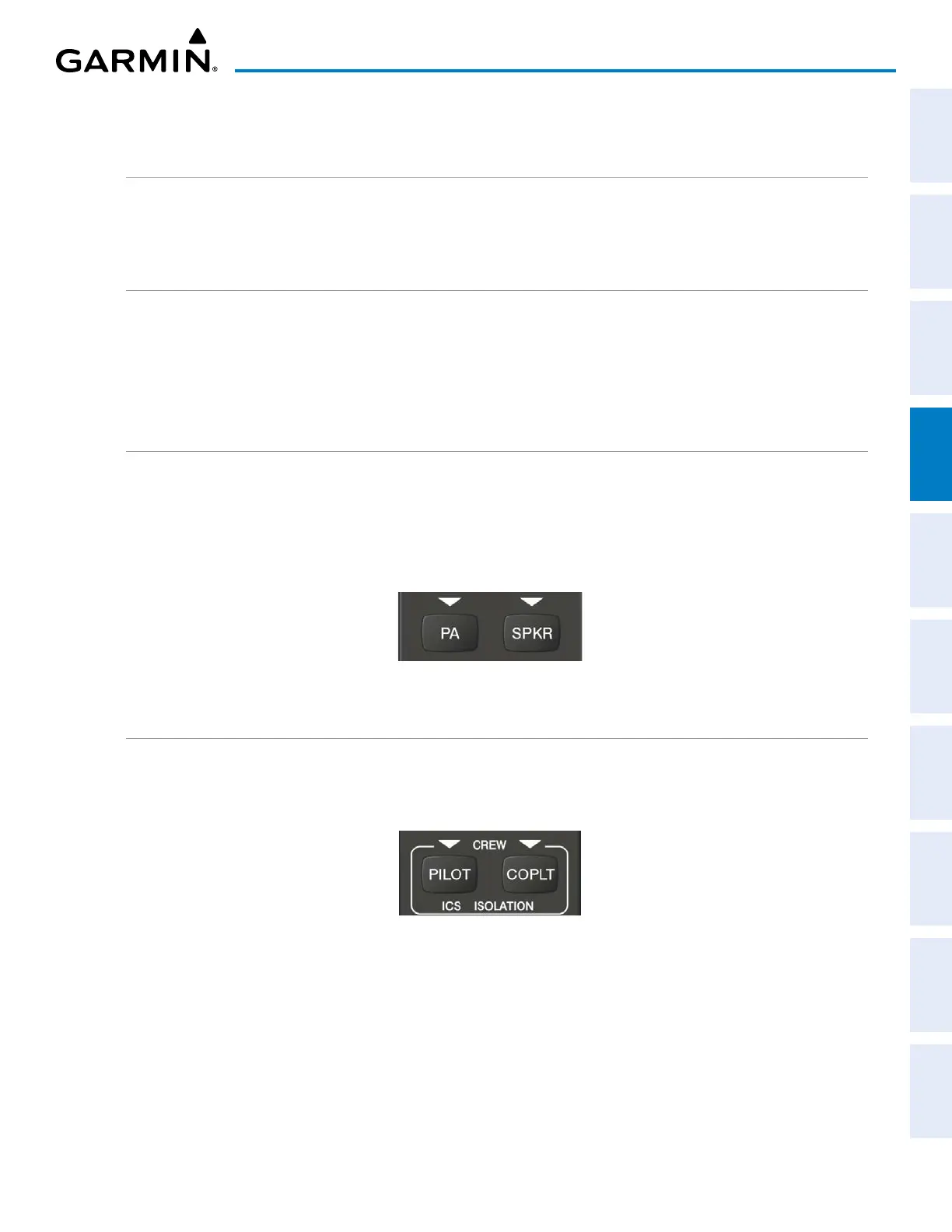

Figure 4-40 Passenger Address and Speaker Keys
INTERCOM
The audio panel includes a six-position intercom system (ICS) and two stereo music inputs for the pilot,
copilot and up to four passengers. The intercom keys provide pilot and copilot isolation from passengers and
aircraft radios.
Figure 4-41 Intercom Controls
