NOTE: Map orientation can only be changed on the MAP – NAVIGATION MAP Page. Any other displays
that show navigation data reflect the orientation selected for the MAP – NAVIGATION MAP Page.

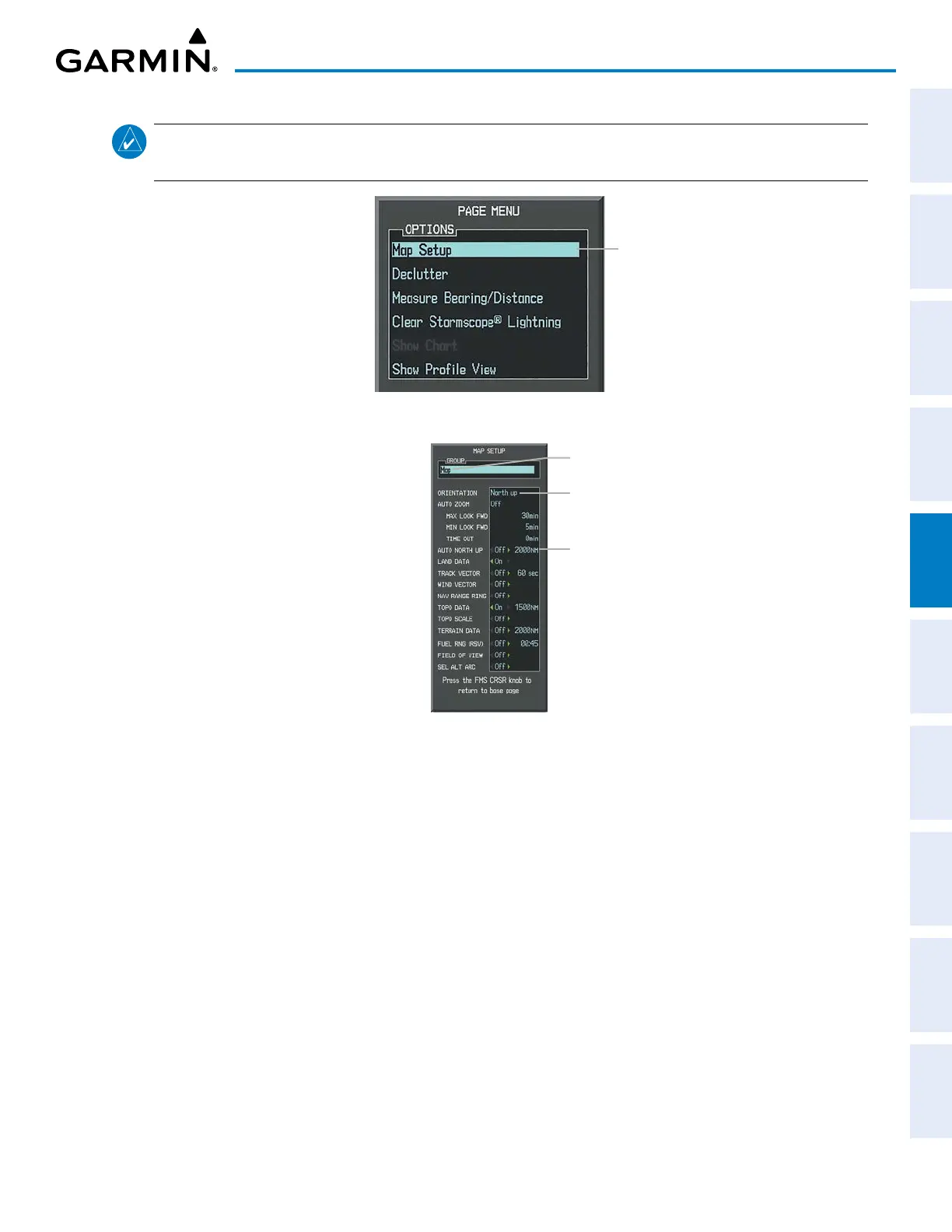

Figure 5-6 Navigation Map Page Menu
Map Setup
Option
Figure 5-7 MAP SETUP Window – ‘Map’ Group
Orientation Field
‘Map’ Group
Auto North Up Field
Changing the Navigation Map orientation:
1) With the MAP – NAVIGATION MAP Page displayed, press the MENU Key. The cursor flashes on the ‘Map Setup’
option.
2) Press the ENT Key to display the MAP SETUP Window.
3) With the ‘Map’ Group selected, turn the large FMS Knob, or press the ENT Key once, to select the ORIENTATION
Field.
4) Turn the small FMS Knob to select the desired orientation.
5) Press the ENT Key to select the new orientation.
6) Push the FMS Knob to return to the base page.
The map can be configured to switch automatically to a north up orientation when the map range reaches a
minimum range.
