Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
190-02692-00 Rev. A200
FLIGHT MANAGEMENT
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

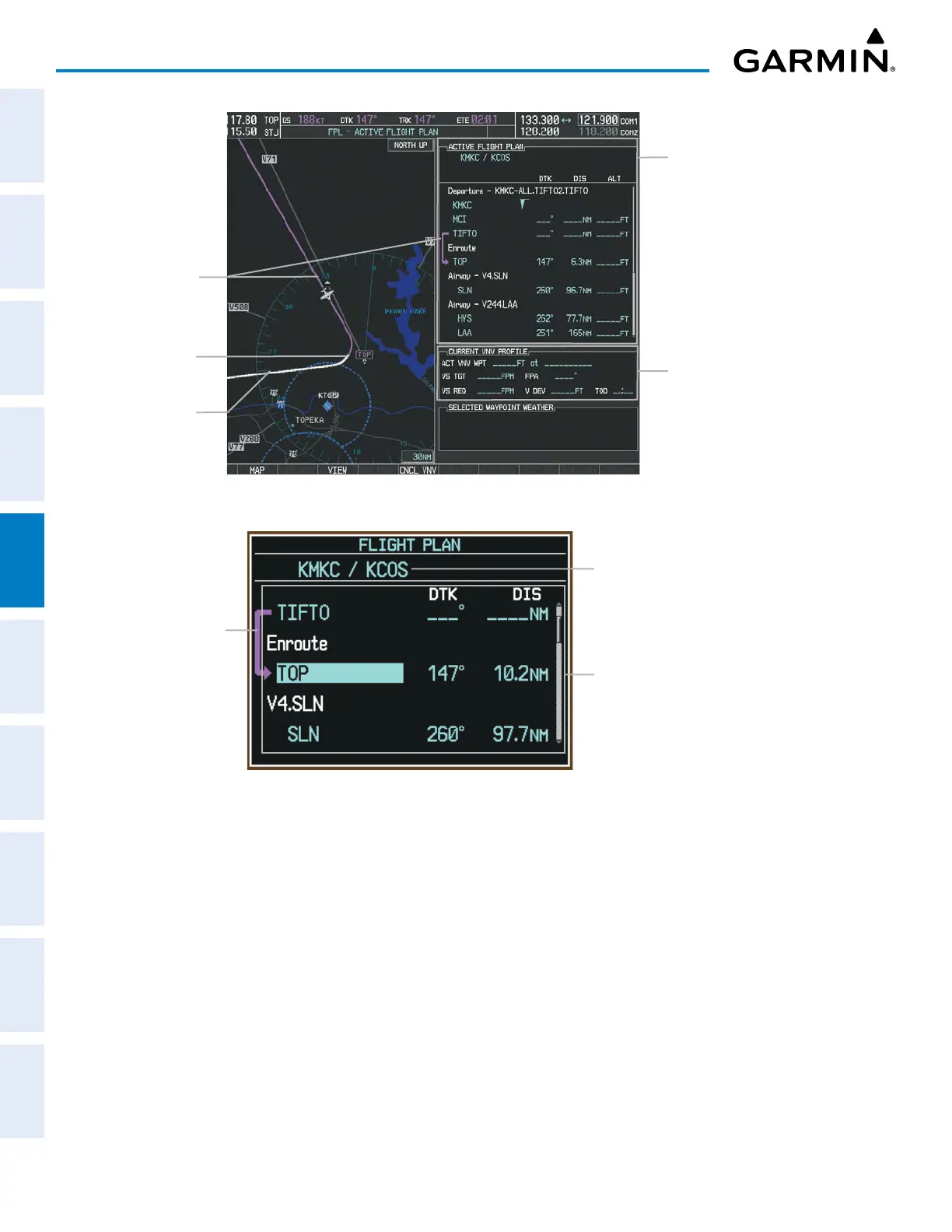

Figure 5-49 FPL – ACTIVE FLIGHT PLAN Page
Active FPL Waypoint List
– Comment
– Procedure Header
– Waypoint Identifier
– Airway Identifier
– Desired Track to Waypoint
– Distance to Waypoint
– Waypoint Altitude Constraint
Vertical Navigation Profile
– Active Vertical WPT Alt/ID
– Vertical Speed Target
– Flight Path Angle
– Vertical Speed Target
– Time to Top of Descent
– Vertical Deviation
Active Flight Plan
Leg
Turn Anticipation
Arc
Non-Active,
Flight Plan Leg
Active Flight Plan Comment
Figure 5-50 FLIGHT PLAN Window on PFD
Active Flight
Plan Leg
Active Flight Plan Waypoint List
– Waypoint ID
– Desired Track to Waypoint
– Distance to Waypoint
– Airway Identifier
