When the system detects a new Traffic Advisory (TA), the following occur:
- The system issues a single “Traffic!” voice alert, followed by additional voice information about the bearing,
relative altitude, and approximate distance from the intruder that triggered the TA. For example, the
announcement “
Tr a
ffic! 12 o’clock, high, four miles,” would indicate the traffic is in front of own aircraft,
above own altitude, and approximately four nautical miles away.
- A ‘TRAFFIC’ annunciation appears at the top right of the airspeed on the PFD, flashes for five seconds, and
remains displayed until no TAs are detected in the area.
- The PFD Inset Map is automatically displayed with TA traffic.
- If the bearing of TA traffic cannot be determined, an amber text banner will be displayed in the center of the
Traffic Map Page and in the lower-left of the PFD inset map instead of a TA symbol. The text will indicate ‘TA’
followed by the distance, relative altitude, and vertical trend arrow for the TA traffic, if known.
A TA will be displayed for at least eight seconds, even if the condition(s) that initially triggered the TA are no
longer a factor.

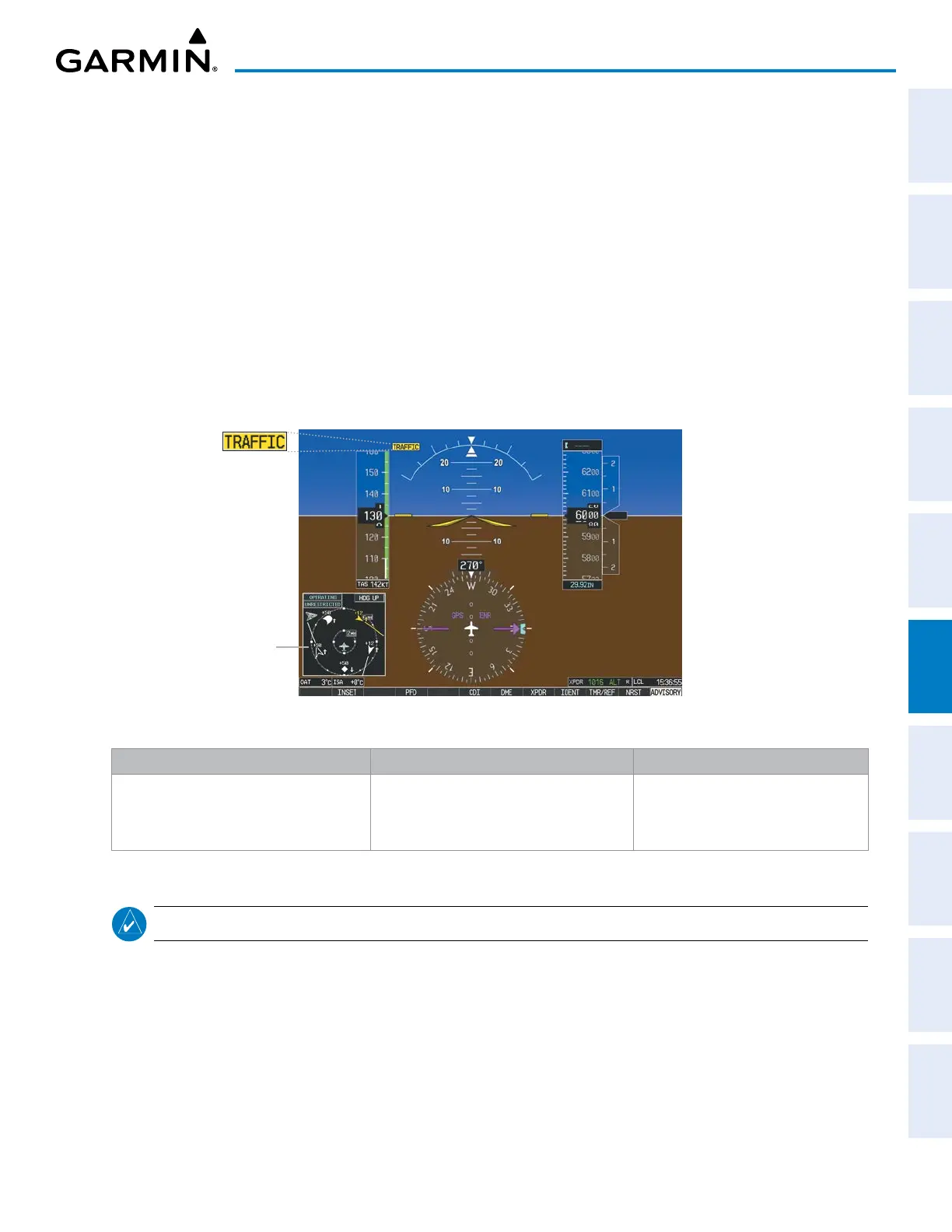

Figure 6-89 Traffic Annunciation (PFD)
Inset Map
Displays When
TA is Detected
Bearing Relative Altitude Approximate Distance (nm)
“One o’clock” through “Twelve
o’clock”or “No Bearing”
“High”, “Low”, “Same Altitude” (if within
200 feet of own altitude), or “Altitude not
available”
“Zero miles”, “Less than one mile”,
“One Mile” through “Ten Miles”, or
“More than ten miles”
Table 6-31 TA Descriptive Voice Announcements
NOTE: ADS-B traffic voice alerts are suppressed when below 500 feet.
