GE MEDICAL SYSTEMS
DIRECTION 2317229, REVISION 3 LOGIQ™ 180 BASIC SERVICE MANUAL
6 - 2 Section 6-2 - Power Supply Adjustment
Section 6-2
Power Supply Adjustment
This system has SMPS Assy, which contains two power supply modules; HVPS Assy, LVPS Assy.
6-2-1 Caution
6-2-2 Access to Adjustments
For more information on how to remove the SMPS Assy (FRU No.703), please refer to the section 8-3-
46.
CAUTION
To avoid injury of electrical hazard, disconnect the main power cable from the power outlet when
adjusting the power supply.

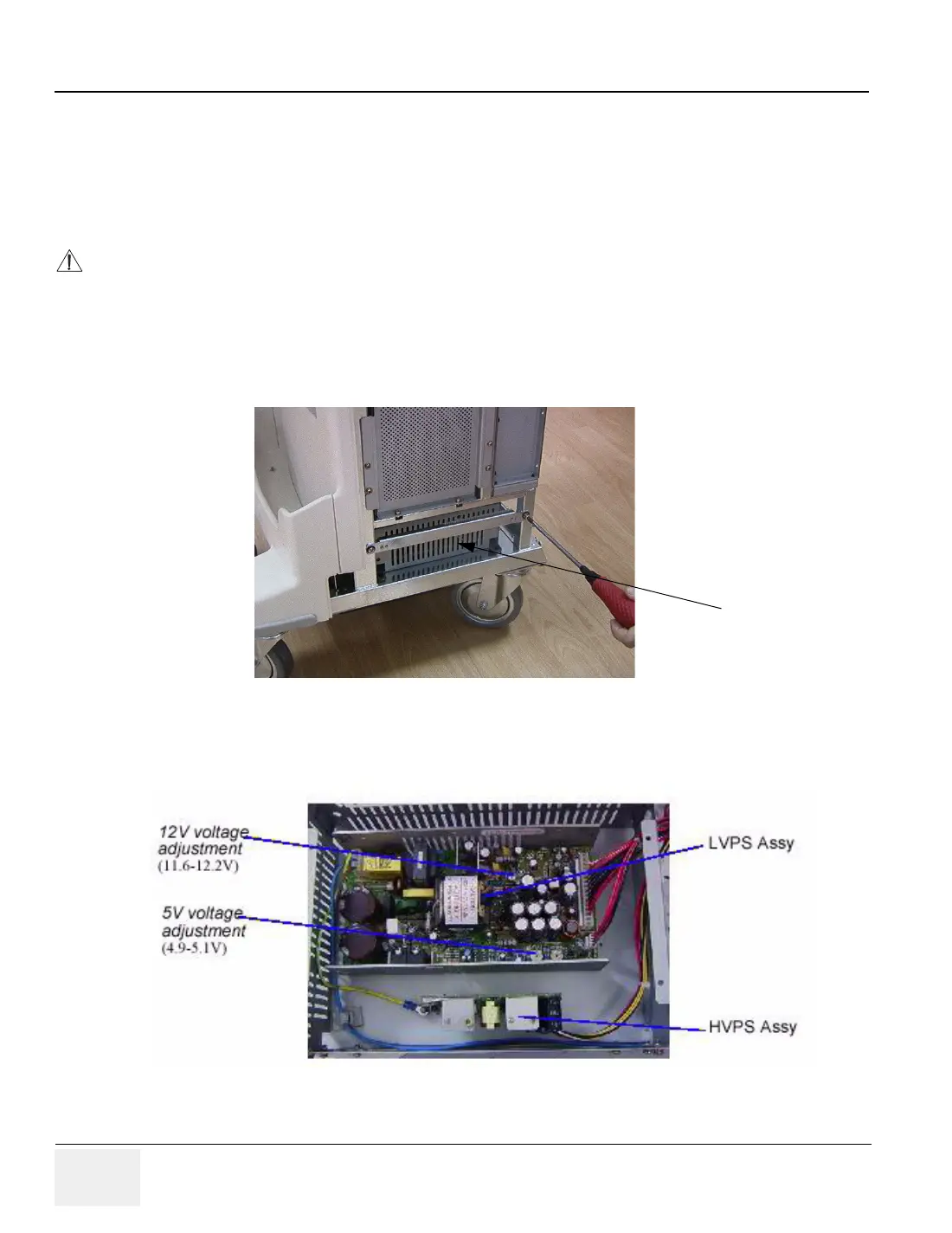

Figure 6-36 Remove the SMPS Assy
Figure 6-37 HVPS Assy and LVPS Assy
SMPS Assy
To Next Page
