GE MEDICAL SYSTEMS
DIRECTION 2317229, REVISION 3 LOGIQ™ 180 BASIC SERVICE MANUAL
Chapter 3 Installation 3 - 23
3-6-4 Peripherals Connections
3-6-4-1 This section indicates pin assignment for each connector
A.) Pin Assignment for Parallel Port ( for V7.0HC systems)

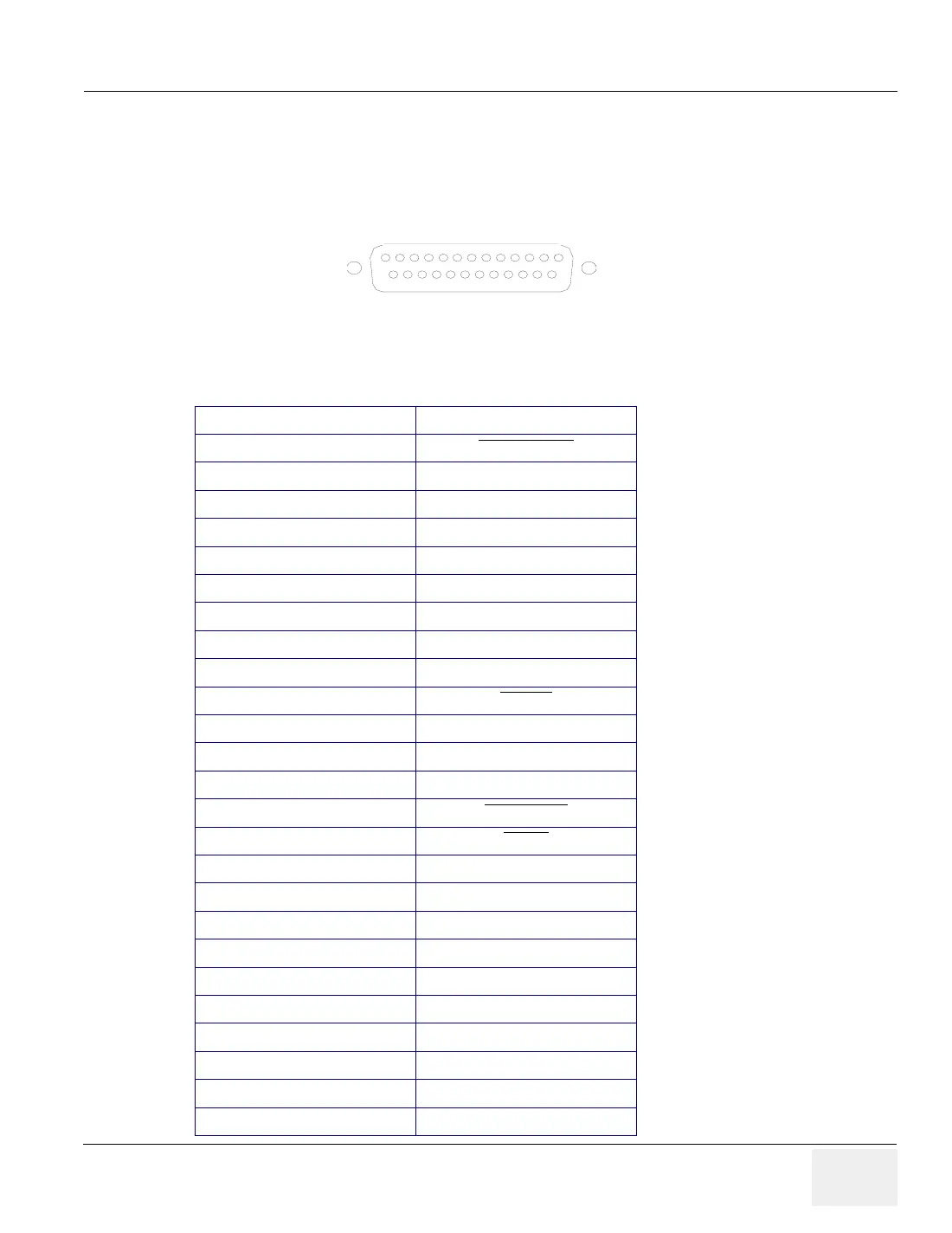

Figure 3-23 Connector: Female D type, 25 Pin on the Rear Panel
Table 3-6 Parallel Port (25 Pin Connector) Details
Pin Number Signal
Pin1 STROBE\WRITE
Pin 2 DATA 1
Pin 3 DATA 2
Pin 4 DATA 3
Pin 5 DATA 4
Pin 6 DATA 5
Pin 7 DATA 6
Pin 8 DATA 7
Pin 9 DATA 8
Pin 10 ACKNLG
Pin 11 Busy
Pin 12 PE
Pin 13 SLCT
Pin 14 Not Connected
Pin 15 ERROR
Pin 16 INIT
Pin 17 SELECT-IN
Pin 18 GND
Pin 19 GND
Pin 20 GND
Pin 21 GND
Pin 22 GND
Pin 23 GND
Pin 24 GND
Pin 25 GND
