DIRECTION 2317229, REVISION 3 LOGIQ™ 180 BASIC SERVICE MANUAL
9 - 10 Section 9-1 - Overview
9-1-7 Circuit Board Assembly

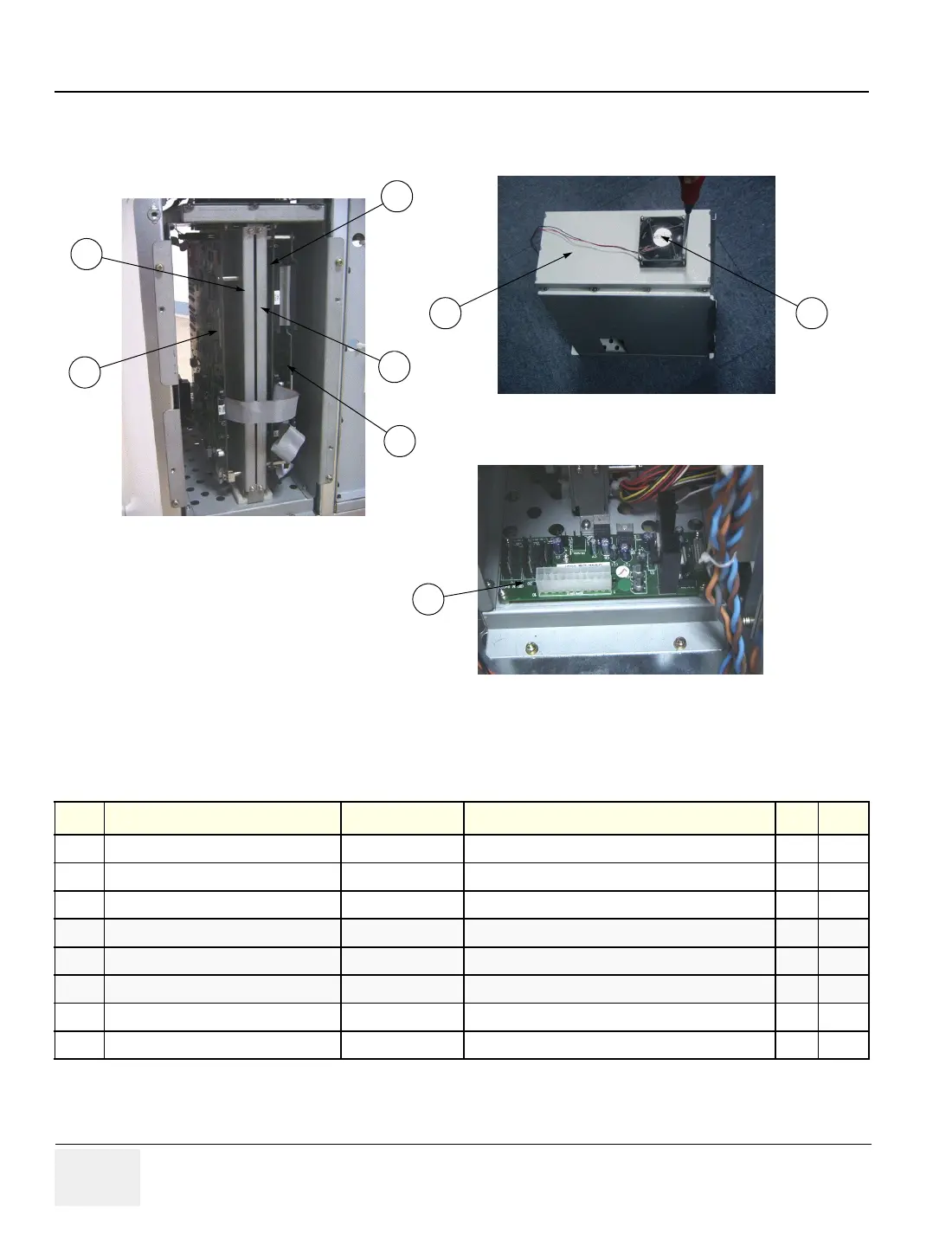

Figure 9-63 Circuit Board Assembly
Table 9-29 Circuit Board Assembly
Item Part Name Part No. Description Qty FRU
601 Nest Box 2326061 the box to fix the PCB 1 2
602 Single PCB Bracket 2326052 Bracket 1 2
603 Multi PCB Bracket 2326051 Bracket 1 2
604 CPU Assy 2352811 Board 1 1
605 DSC Assy 2352813 Board 1 1
606 FEB Assy 2352815-2 Board 1 1
607 Power Distribution 2300762 Board 1 1
608 Fan 2300226 DC Fan 1 1
601
602
603
604
605
606
607
608
