DIRECTION 2317229, REVISION 3 LOGIQ™ 180 BASIC SERVICE MANUAL
7 - 12 Section 7-2 - Power On Diagnostics
Monitor Test (Contd.,)
NOTE: The patterns in Figure 7-49 to Figure 7-52 are written on the overlay where as the pattern in
Figure 7-53 to Figure 7-55 is written on the image memory.
Figure 7-49 to Figure 7-51 are also available in reverse video.
7-2-7 Key Operation History
When this option is selected from the Main Menu the following appears indicating a maximum of 32 keys
last activated. The history of keys used is stored even after powered off.

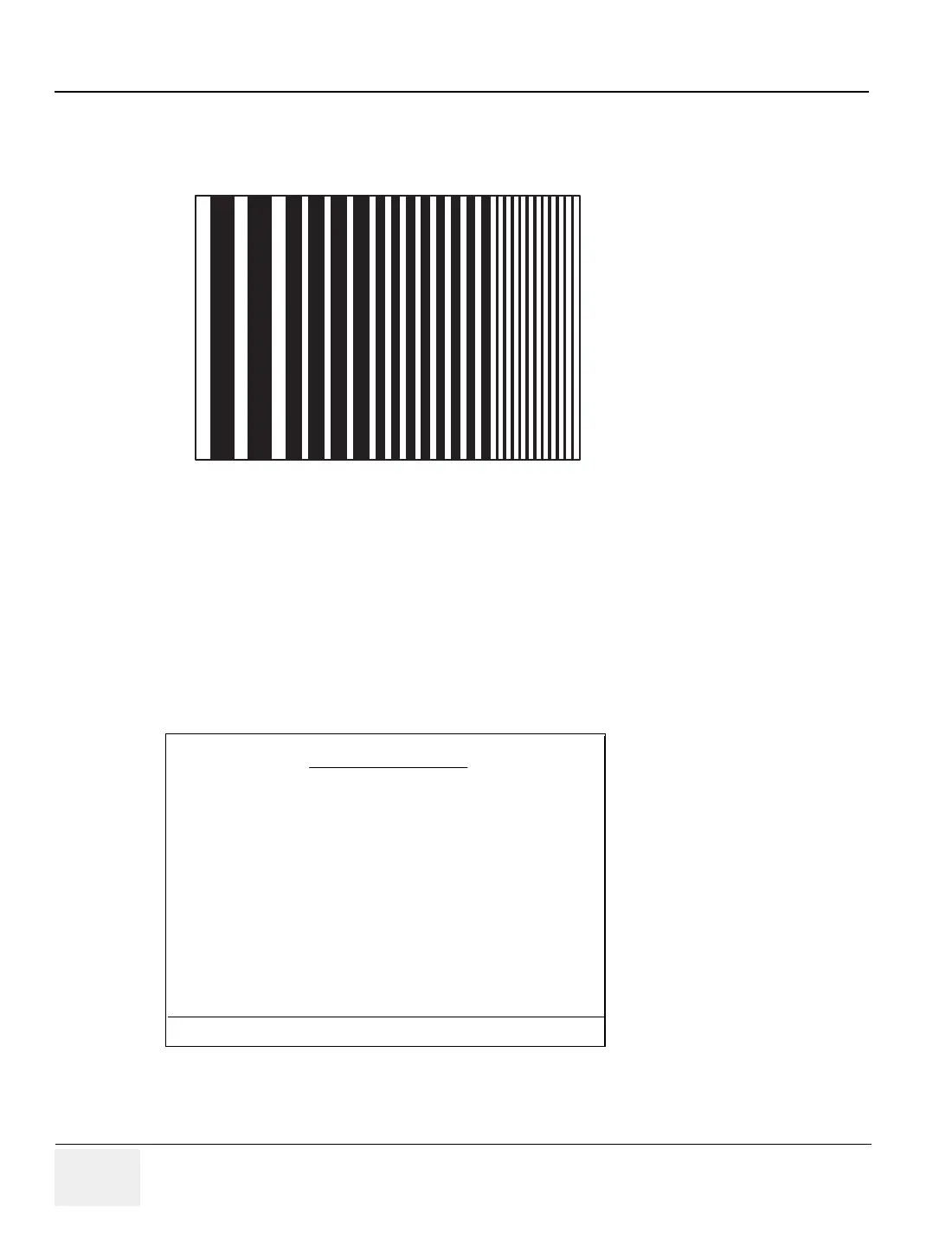

Figure 7-55 Monitor Test
Figure 7-56 Key Operation History
KEY OPERATION HISTORY
KEY OPERATED KEY OPERATED
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30
31.
32.
PRESS EXT_VIDEO TO QUIT
