9-1-5 Probe Port and Front Panel

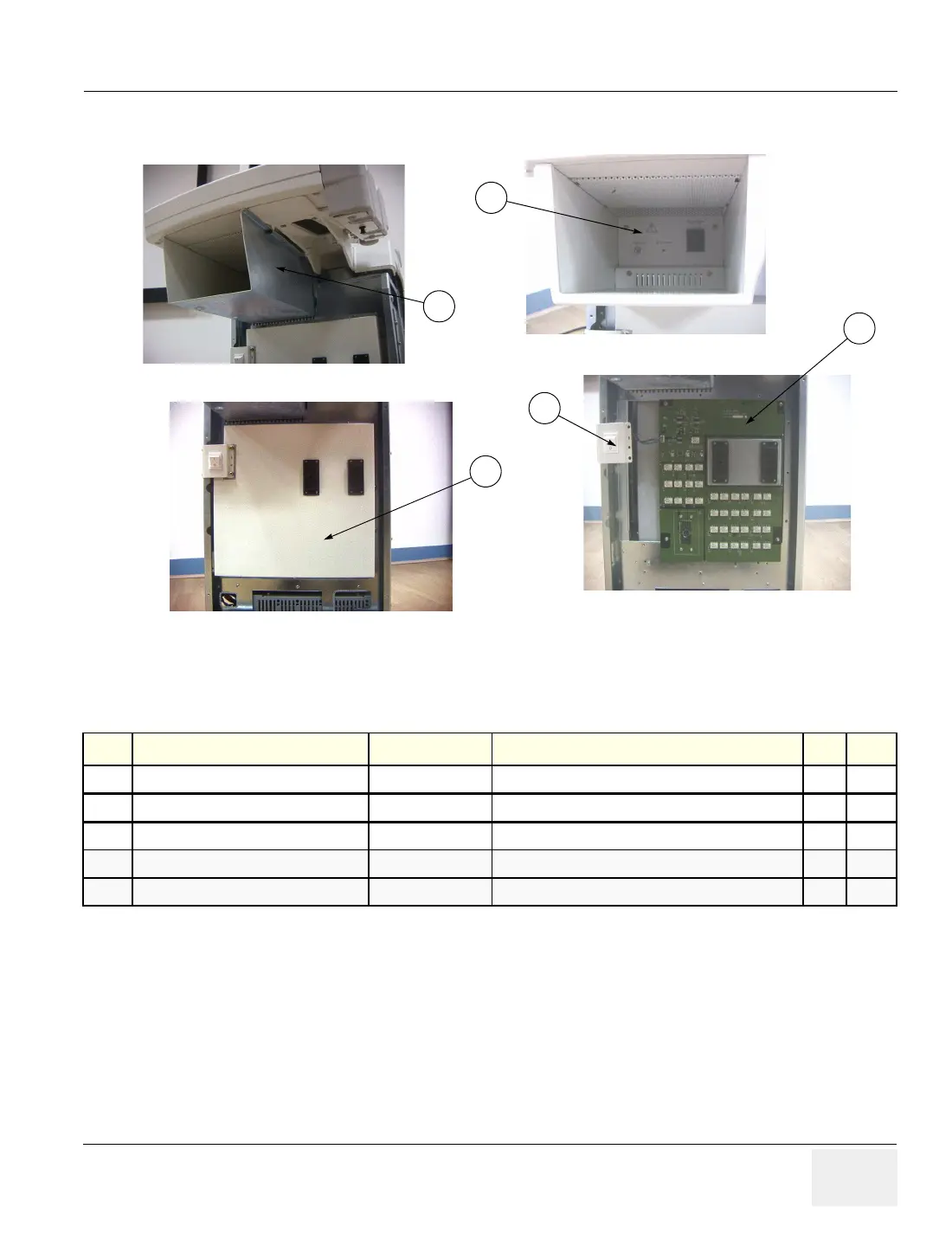

Figure 9-61 Probe Port and Front Panel
Table 9-27 Probe Port and Front Panel
Item Part Name Part No. Description Qty FRU
401 Printer Bracket Assy 2347371 Include the back bracket assy (P/N:2346982) 1 2
402 Back Breakout Assy 2346982 Print input port include breaker 1 2
403 Shield Panel 2326058 Shield panel above the relay board assy 1 2
404 Relay board Assy 2341406 Board include Bracket Probe 1 1
405 Power S/W Assy 2148226 Power on/off switch include the bracket 1 1
401
402
403
404
405
