GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
6 - 12 Section 6-3 - Monitor Arm and/or Monitor Range of Motion Adjustment
Monitor arm vertical adjustment
If the monitor rises or falls when it is released, perform a vertical adjustment.

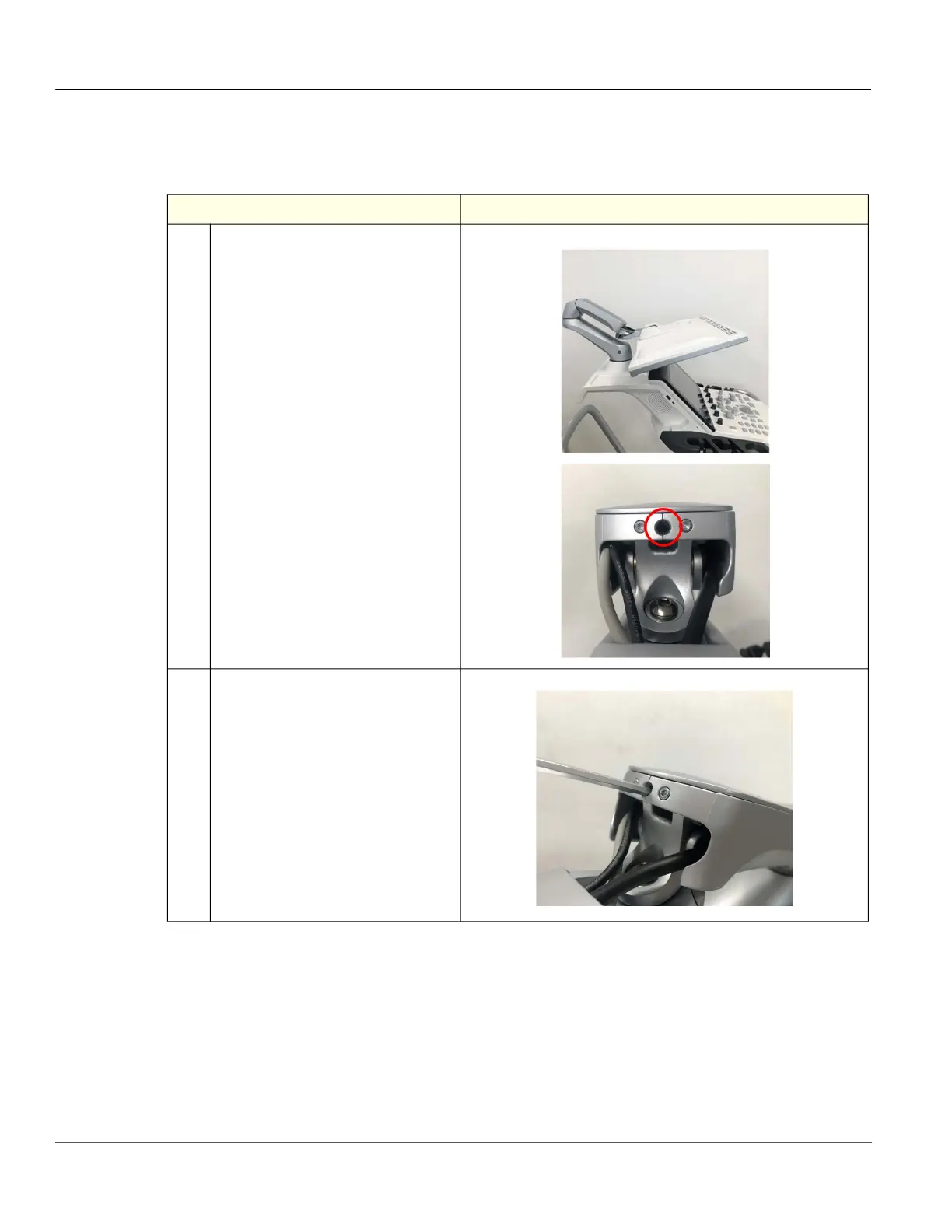

Table 6-5 Monitor Arm Vertical Adjustment
Step Corresponding Graphic
1.
Tilt the monitor down to access the vertical
adjustment screw.
Monitor Arm Vertical Adjustment Screw
2.
If the monitor was rising, turn the adjustment
screw clockwise to increase the friction,
using a 4 mm hex wrench.
If the monitor was falling, turn the adjustment
screw counterclockwise to decrease the
friction.
The monitor should stay in the position it is
released at.
NOTE: The heavier the monitor, the more
friction will be required.
