GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
Chapter 3 LOGIQ Totus Setup 3 - 15
3-5-4 Connections on the rear I/O panel
NOTE: Accessory equipment connected to the analog and digital interfaces must be certified according
to the respective IEC standards (e.g. IEC60950-1 or IEC62368-1 for data processing
equipment and IEC60601-1 for medical equipment). Furthermore, all complete configurations
shall comply with the valid version of the LOGIQ Totus standard IEC60601-1-1. Everybody who
connects additional equipment to the signal input part or signal output part of LOGIQ Totus,
configures a medical system, and is therefore responsible that the LOGIQ Totus complies with
the requirements of the valid version of IEC60601-1-1. If in doubt, consult the technical service
department or your local representative for GE HealthCare.
Connect Ethernet
Connect the Ethernet cable to the Ethernet connector on the external I/O (rear side of LOGIQ Totus).
Connect USB Flash Drive
For information “USB Hard Disk Drive and USB Flash Drive” in Chapter 9 of the LOGIQ Totus User
Manual (latest revision).

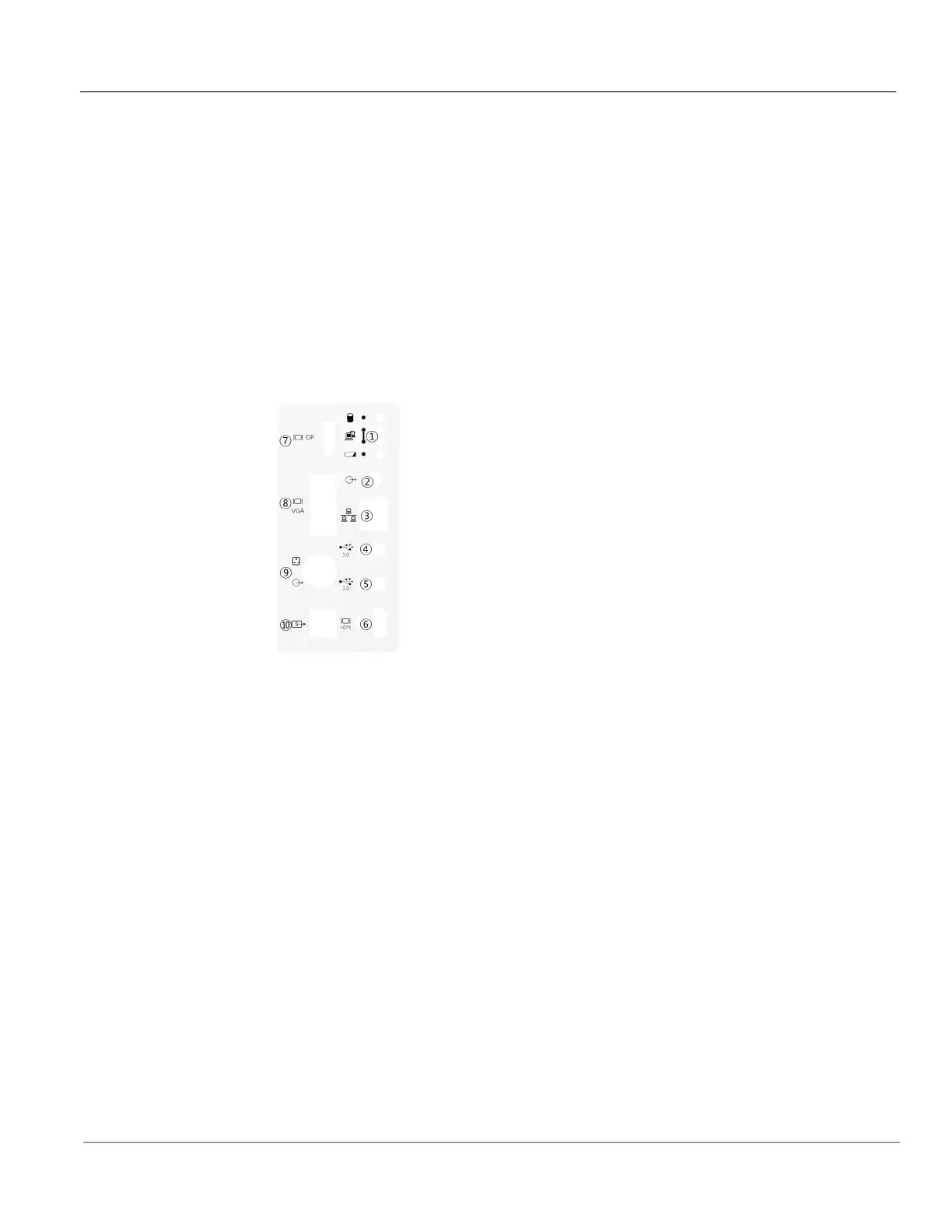

Figure 3-6 I/O Rear Panel
Possible shock hazard. Do not remove covers or
panels. No user serviceable parts are inside.
Refer servicing to qualified service personnel.
1.) Network/Disk/Battery Indicators
2.) Audio out connector
3.) Ethernet connector
4.) USB 3.0 port
5.) USB 3.0 port
6.) HDMI connector
7.) DP connector
8.) VGA connector
9.) Composite connector
10.)S-Video connector
