GE HealthCare CONFIDENTIAL
Direction 5936427, Rev. 1 LOGIQ Totus Basic Service Manual
3 - 12 Section 3-4 - Preparing for Setup

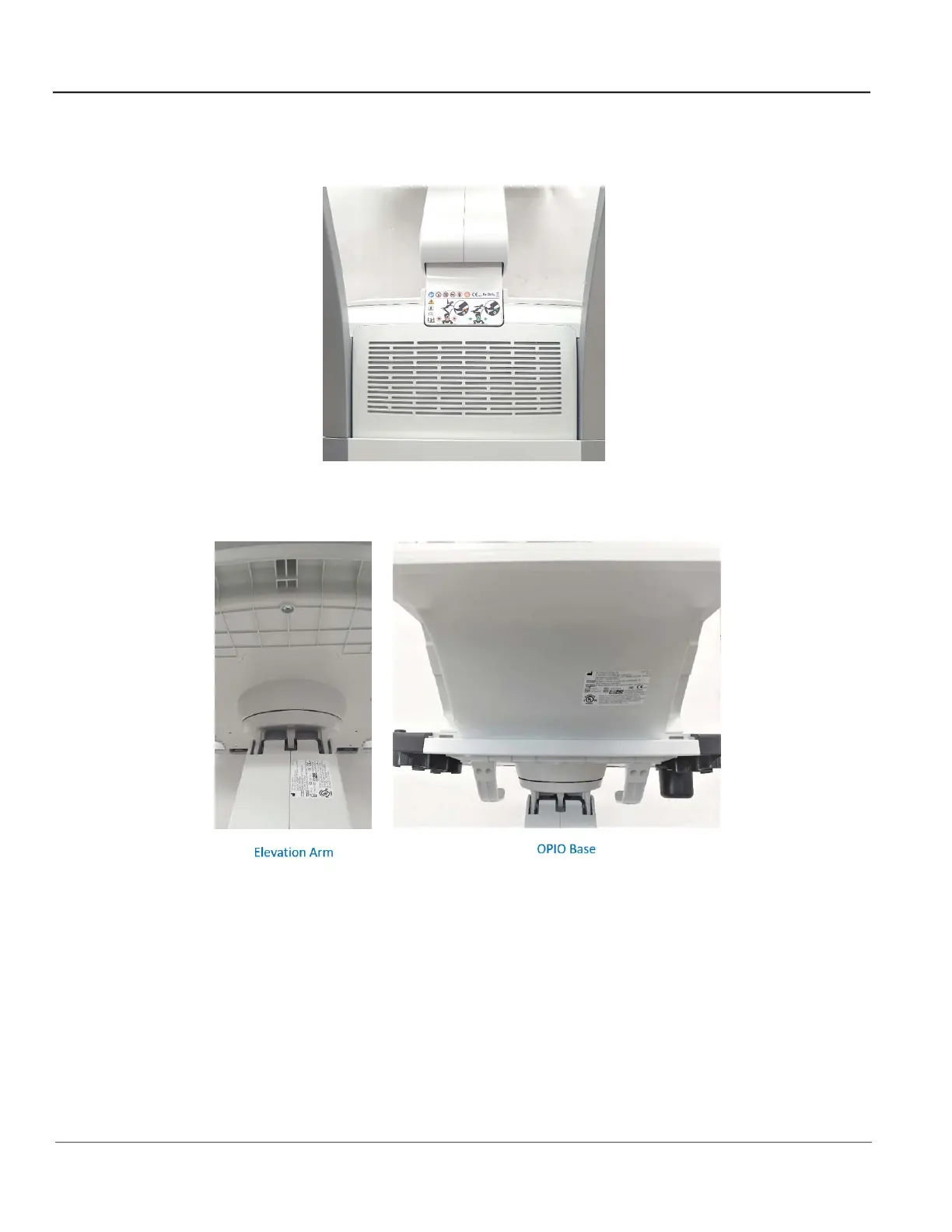

3-4-3 Location of Multi Caution label and rating label
3-4-4 EMI Protection
The LOGIQ Totus has been designed to minimize the effects of Electro-Magnetic Interference (EMI).
Many of the covers, shields, and screws are provided primarily to protect the LOGIQ Totus from image
artifacts caused by this interference. For this reason, it is imperative that all covers and hardware are
installed and secured before the LOGIQ Totus is put into operation.
2-2-3 "EMI limitations" on page 2-6 for more information about EMI protection.
Figure 3-3 Multi Caution Label
Figure 3-4 Rating Label (Elevation Arm/OPIO Base)
