GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-5 - Replacing Cables 8 - 53
8-5-8-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

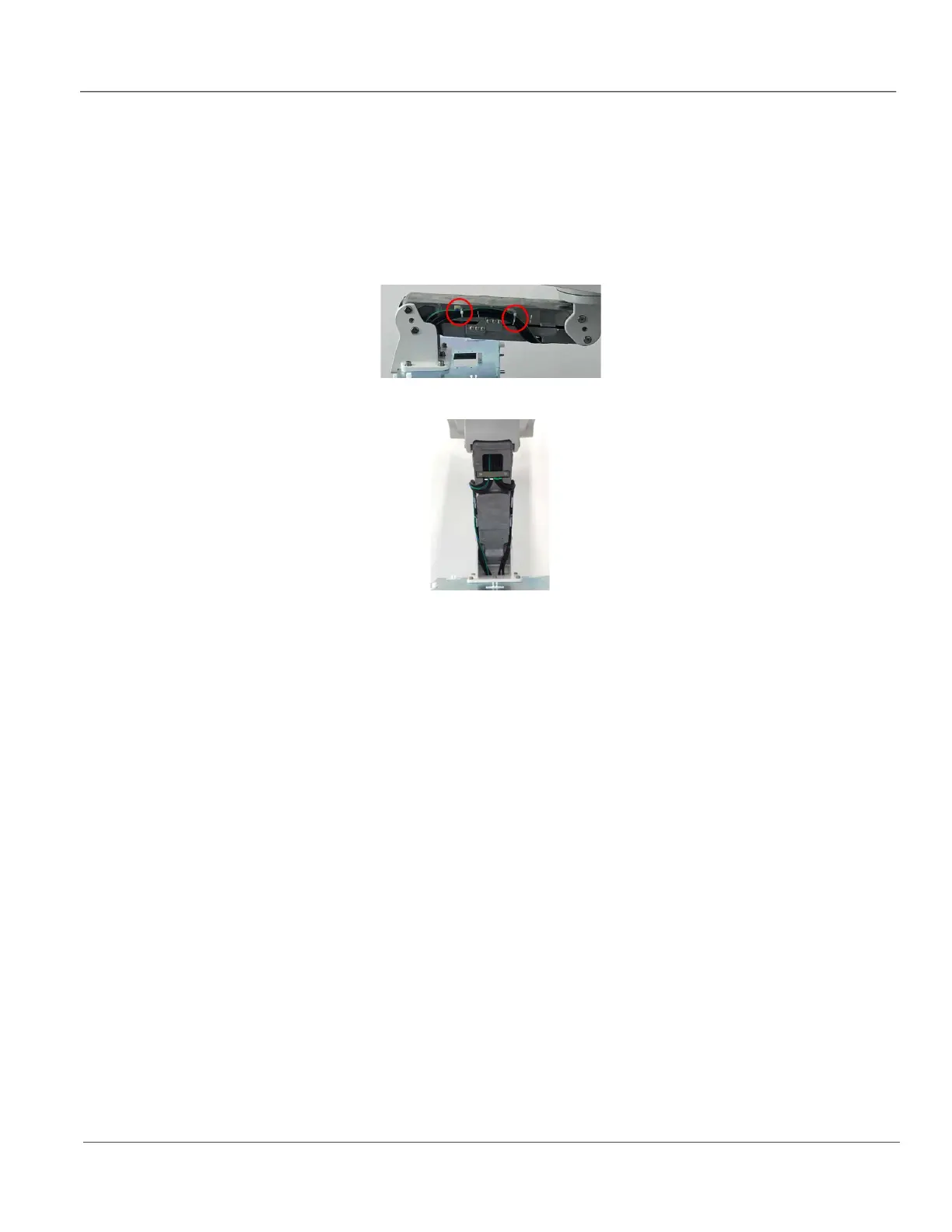

NOTE: Fix UBE To OPIO Touch Panel HDMI Cable with Cable Tie as below figure.
- Align the marks on UBE To OPIO Touch Panel HDMI Cable, GND Cable (Chassis To OPIO) and UBE
To Monitor HDMI Cable and fix the cables using Cable Tie, DACT-100A
-Align the marks on cables and fix the cables using Cable Clamp CPFDM14-A.
To Next Page
