GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-7 - Replacing OPIO 8 - 101
8-7-11 Replacement of the Trackball assy-U_FLT20UFA-GJ
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-7-11-1 Preparations
1.) Remove the OPIO Top Cover Set -T as described in 8-7-2 "Replacement of the OPIO Top Cover
Set-T" on page 8-89
2.) Remove the UOPIO Assy-T as described in 8-7-10 "Replacement of the UOPIO-T Assy" on page
8-98
8-7-11-2 Removal Procedure
8-7-11-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-47 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 10 minutes Philips Screwdriver
Cut resistant gloves
Knee Pad
Step Corresponding graphic
1.

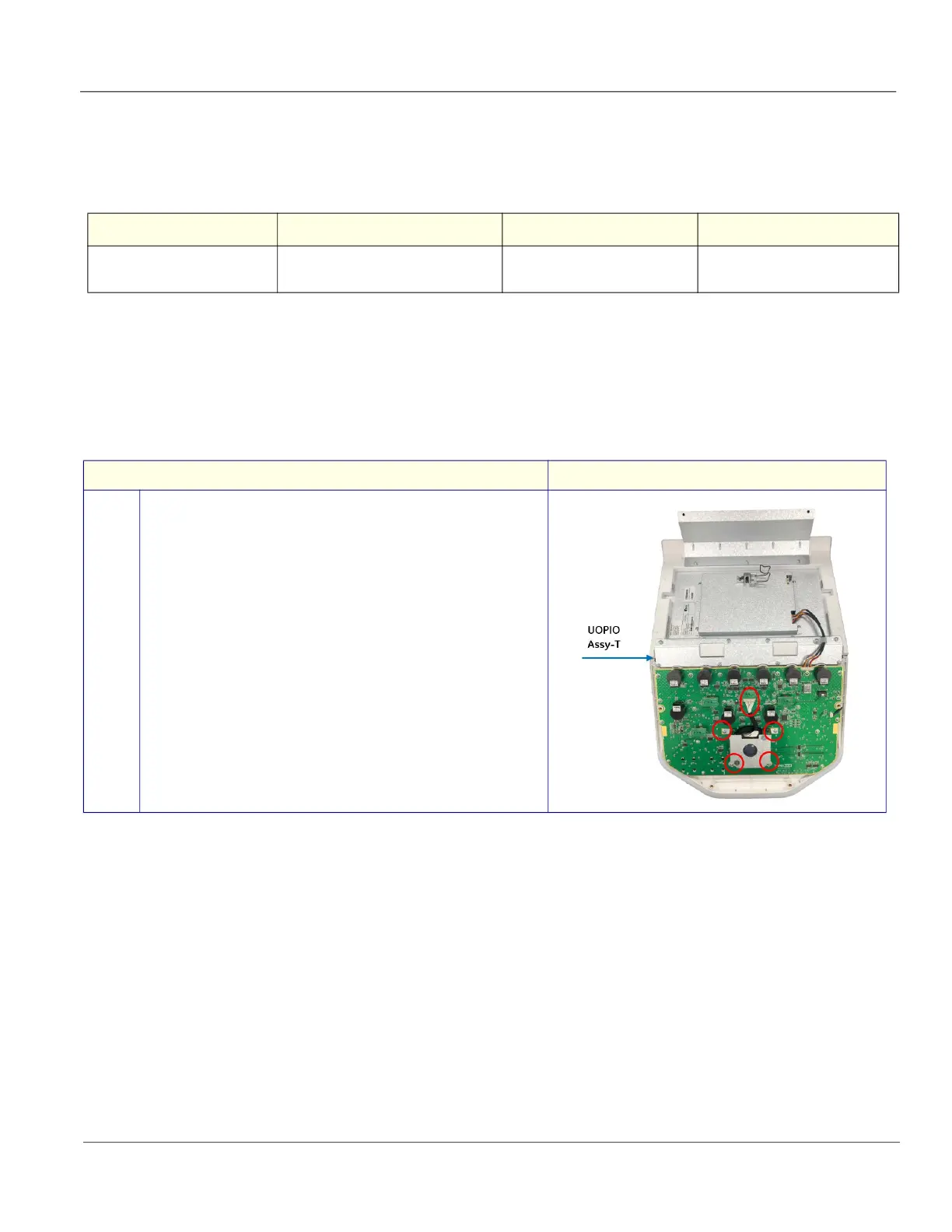

Disconnect the trackball cable and unscrew 4 screws to remove
the OPIO Laser Color Trackball with Cable from the UOPIO
Assy-T
To Next Page
