DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-7 - Replacing OPIO 8 - 123
8-7-25-2 Removal Procedure
8-7-25-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

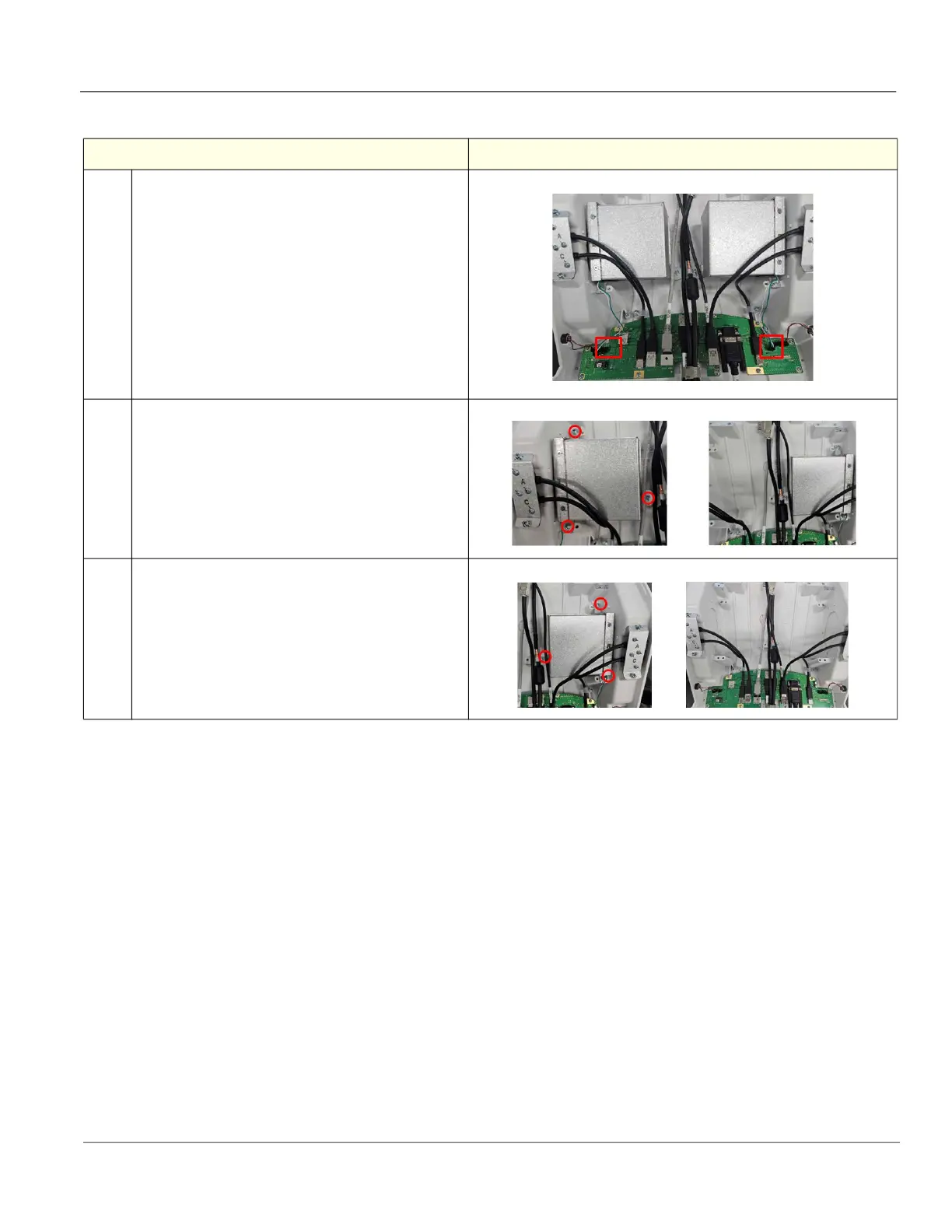

Steps Corresponding Graphic
1. Disconnect the OPIO HUB To Speaker from the
console.
2. Unscrew 3 screws to remove the Unity Speaker Assy
L from the console.
3. Unscrew 3 screws to remove the Unity Speaker Assy
R from the console
