Parts
Lists
Fastener
Har
dwar
e
FRU
Kit
,
PN

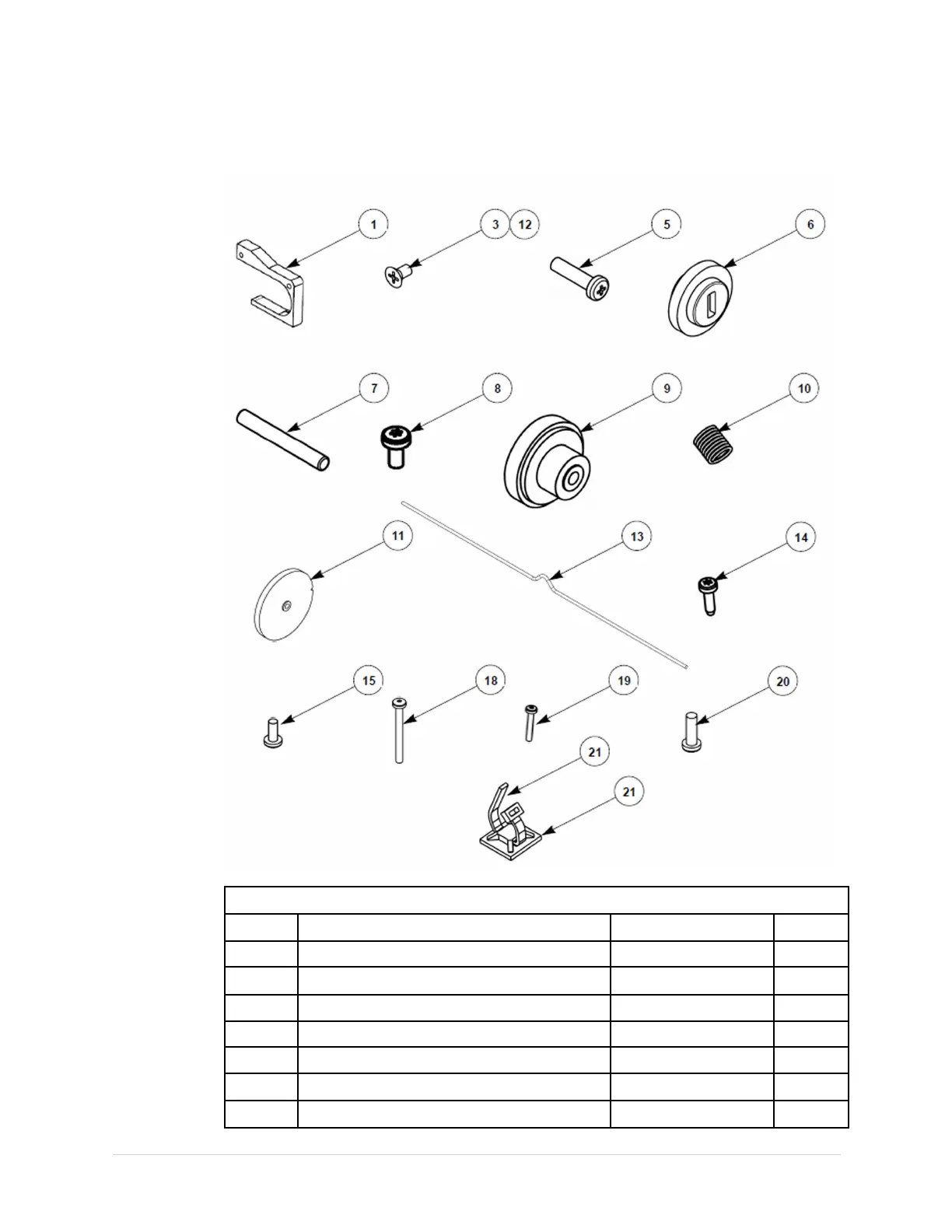

2035708-001
Fastener
Hardware
Kit
,
PN
2035708-001
Item
Item
Description
Where
Used
Qty
1
ADAPTER
REDUCING
1
3
SCR
FH
#4-40X1/4"
ZINC
AHNL
.DIN965
2
5
SCR
PLASTIC-2.5X10-V2A
P
ANHEAD
-Z
2
6
GE
AR
WHEEL
1
7
BE
ARING
PIN
2
X
15,8
2
8
SCR
DIN7985-M3X5-4.8-Z-A2F
(ISO7045)
10
9
GE
AR
WHEEL
45/14T
1
2028451-183E
MAC™
1600
121
120
122
Table of Contents
Table of Contents
3
Introduction
7
Intended User
7
Indications for Use
7
Contraindications
7
Prescription Device Statement
7
Regulatory and Safety Information
8
Safety Conventions
8
Safety Hazards
8
Parts and Accessories Information
9
Responsibility of the Manufacturer
9
Responsibility of the Purchaser/Customer
9
Symbols
10
Training
13
Equipment Identification
13
Product Label
13
Serial Number Format
14
Product Codes
14
Service Information
15
Service Requirements
15
Additional Assistance
15
Manual Information
15
Intended Audience
15
Manual Purpose
15
Document Conventions
15
Related Documents
17
Equipment Overview
19
Front View
19
Side View
20
Rear View
21
Keyboard
22
Keyboard (Stress Option)
24
Block Diagram
26
Hardware/Firmware Architecture
27
Troubleshooting
29
General Fault Isolation
29
Power up Self-Test
29
Poor Quality Ecgs
30
Visual Inspection
30
Event Logging
31
Setting up Event Logging
31
Exporting the Event Log
33
Performing Diagnostic Tests
33
Accessing the System Diagnostics Function
33
Testing the Display
35
Testing the Speaker
36
Testing the Keyboard
37
Testing the Acquisition Module
38
Checking Battery Status
38
Testing the Writer
39
Testing the RS232 Port
42
Testing the LAN Option
43
Testing the Modem
44
Testing the USB Port
45
Testing the Patient Lead Wires
46
Equipment Problems: ECG Data Noise
46
Error Codes
47
Acquisition Error Codes
47
Printer Error Codes
49
Frequently Asked Questions
50
Maintenance
50
System Setup
53
Clinical
55
Navigating the User Interface
55
Maintenance
59
Recommended Maintenance
59
Required Tools and Supplies
59
FRU Replacement Procedures
60
High Level FRU Identification
60
Preparing System for FRU Replacement
61
Replacing the Patient Cable
61
Replacing Barcode Reader or Barcode Reader Cable
62
Replacing the Paper Tray Assembly
64
Replacing the Battery
64
Replacing the Keyboard
67
Replacing the Display Assembly
71
Replacing the Internal Modem (Option)
71
Replacing the Power Supply Assembly
72
Replacing the Acquisition Board Assembly
75
Replacing the KISS Pump Assembly (Option)
77
Replacing the Printer Assembly
80
Replacing the Printer Board
86
Replacing the Printhead
88
Replacing the Optical Sensors
92
Replacing the Mainboard/Ete Module Assembly
94
Functional Checkout
99
Visual Inspection
100
Functional Checkout Procedures
101
Electrical Safety Checks
102
Updating Software
104
Conditioning the Battery Pack
106
Parts Lists
109
Ordering Parts
109
General Information
109
Field Replaceable Units (Frus)
110
MAC 1600 Upper Level Assembly, PN 2032093
110
Power Supply FRU Kit, PN 2035703-001
117
Mainboard ETE Assembly FRU Kit, PN 2035704-001
117
Acquisition Assembly FRU Kit, PN 2035705-001
117
Cable Harness FRU Kit, PN 2035707-001
117
Display Cover Assembly FRU Kit, PN 2035706-001
118
Printer Assembly FRU Kit, PN 2035702-001
118
Paper Tray and Printer Door FRU Kit, PN 2035711-001
118
Display Assembly FRU Kit, PN 2035700-001
118
Printer Board Assembly FRU Kit, PN 2036813-001
119
KISS Pump Assembly FRU Kit, PN 2036814-001
119
KISS Pump Hardware FRU Kit, PN 2036815-001
119
Internal Modem FRU Kit, PN 2036816-001
119
Printhead FRU Kit, PN 2036817-001
120
Optical Sensor and Bracket FRU Kit, PN 2036818-001
120
Fastener Hardware FRU Kit, PN 2035708-001
121
Middle and Base Plastic FRU Kit, PN 2036812-001
122
Plastics Kit, PN 2035709-001
122
Keyboards, Non-Stress
123
Keyboards, Stress
124
Data Matrix Barcode Scanner Kits
125
Power Cords
126
Technical Specifications
129
Electromagnetic Compatibility
133
Electromagnetic Compatibility (EMC)
133
Guidance and Manufacturer's Declaration - Electromagnetic Emissions
133
Guidance and Manufacturer's Declaration - Electromagnetic Immunity
134
Guidance and Manufacturer's Declaration - Electromagnetic Immunity
136
Recommended Separation Distances
137
EMC Exceptions Disclosure
139
EMC-Compliant Supplies & Accessories
141
Introduction
141
Standard Accessories
141
