Maintenance
8.
Connect
the
device
to
AC
power
and
power
on
the
system.
9.
Perform
the
applicable
checkout
procedures.
Refer
to
“Functional
Checkout”
on
page
99
.
Replacing
the
K
eyboard
1.
Disconnect
the
system
from
AC
power
.
2.
Remove
the
paper
tray
as
described
in
“Replacing
the
Paper
Tray
Assembly”
on
page
64
.
3.
Remove
the
battery
as
described
in
“Replacing
the
Battery”
on
page
64
.
4.

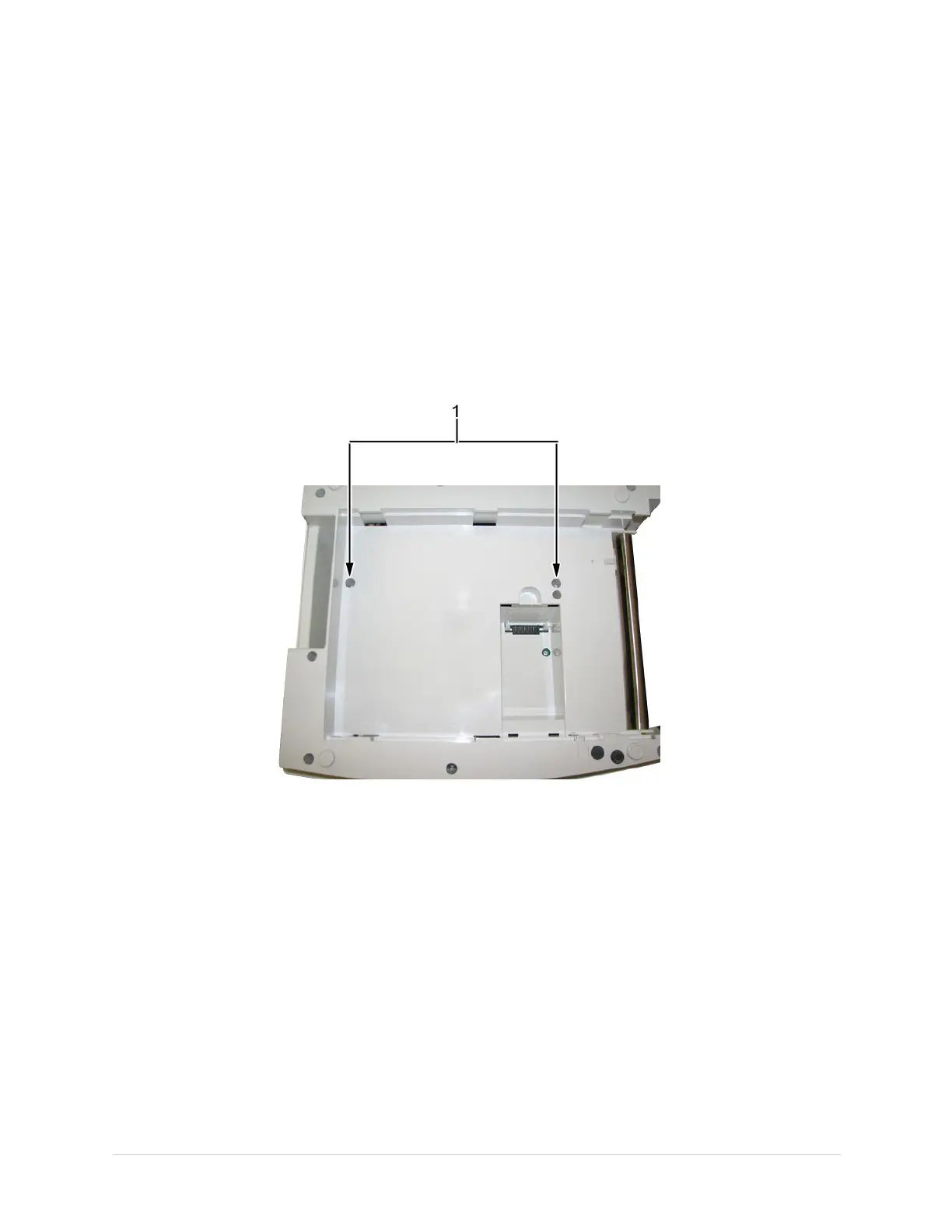

Remove
the
two
screws
(1)
from
the
bottom
of
the
device.
5.
Turn
the
device
ov
er
,
so
it
is
right
side
up.
2028451-183E
MAC™
1600
67
66
68
