Maintenance
10.Reassembleacquisitionboardassembly(systemswiththeKISSoption).
a.Reassembleitems37,38,and39intotheplasticbezelasshowninthe
previousillustration.
b.Tightentheplasticnutlock(item38)withasmalladjustablewrench.
c.Handtightentheluerplug(item39)ontotheluerconnector(item37).
d.Reconnectthegrayhosetotheluerconnector(item37).
e.Reversethedisassemblystepstoreassemble.
11.Performtheapplicablecheckoutprocedures.
Referto“FunctionalCheckout”onpage99.
ReplacingtheKISSPumpAssembly(Option)
1.Separatethemiddleplasticandbaseplasticassembliesasdescribedin
“ReplacingthePowerSupplyAssembly”onpage72,steps1through8.

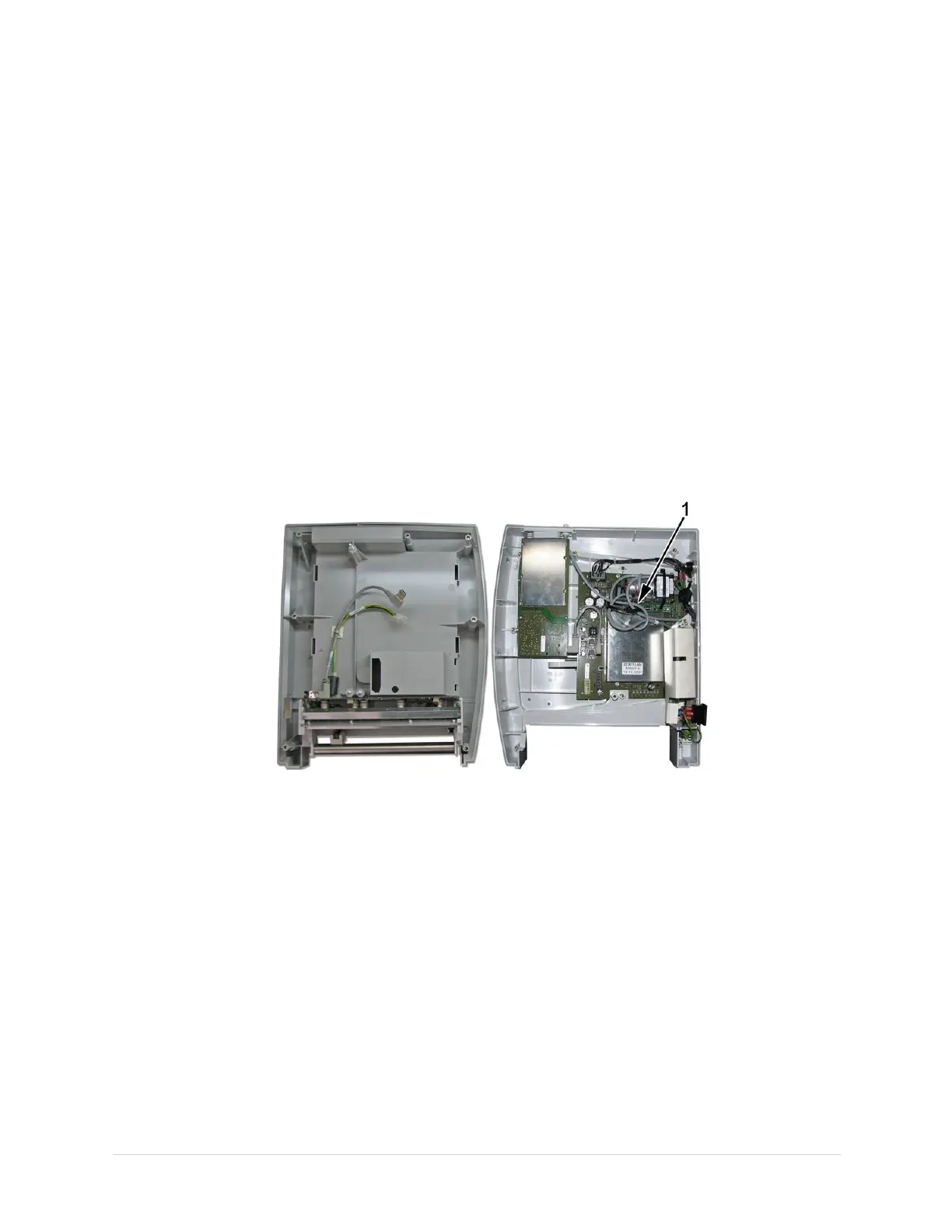

2.Usingthefollowingillustration,identifytheKISSpumpassembly(1).
3.Turnthedeviceoverandremovethekeyboardbezel.
4.Removethetworearpanelscrews.
2028451-183EMAC™1600
77
