GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 3 - Installation 3-63

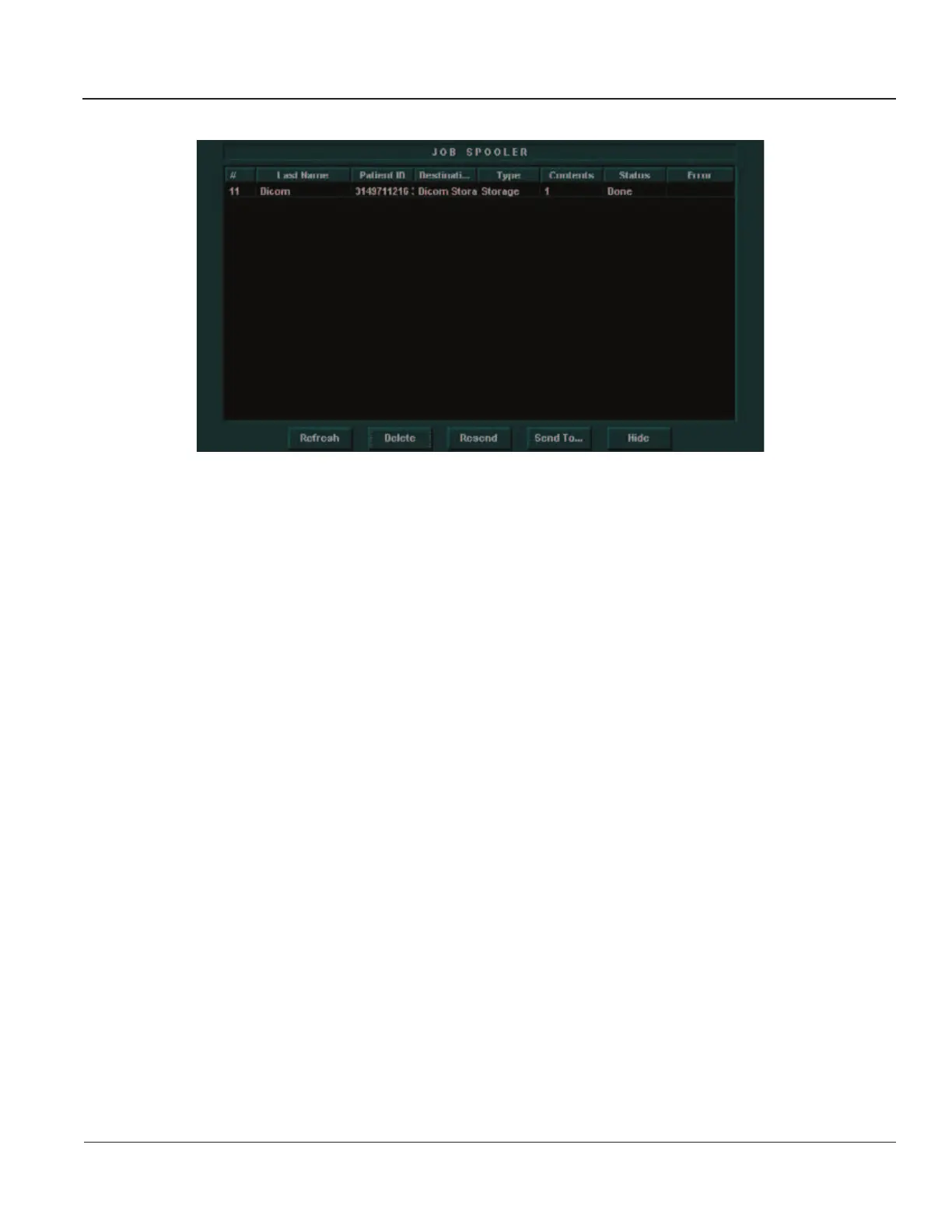

5) Press <Ctrl+S> to view the status of the spooler, as shown below:
Figure 3-45 Job Spooler
The Status column can contain the following options:
• Hold: Images are in the spooler buffer but transmission has not begun as the exam is
active.
• Active: Images are being transmitted over the network.
• Done: Transmission is complete and all the images have been transmitted over the
network.
• Fail: Transmission failed or is incomplete. An error message will be displayed in the Error
column.
3-7-6 Connecting Directly to EchoPAC
Note: The EchoPAC station will reject any images that have a future date. Ensure that the clock on
the Vivid™ 3 ultrasound unit lags behind that of the EchoPAC system by a minute or two.
1) Press Config on the alphanumeric keyboard. The System Configuration window is displayed.
2) Trackball to the Connectivity tab and press Select. The Connectivity tab is displayed, with the
Views subsidiary tab selected by default, as shown in
Figure 3-36 on page 3-55.
3) Trackball to the Dataflow button and press Select. The full list of data flows is displayed, as shown
in
Figure 3-43 on page 3-60.
4) Expand the Remote Archive - Remote Storage branch. A service called Remote Servers is
displayed.
5) Expand the Remote Servers branch. A service called Remote Archive - Remote Storage is
displayed.
6) Trackball to the Services tab and press Select. The Services tab is displayed, as shown in
Figure 3-39 on page 3-57.
