GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
3-36 Section 3-6 - System Configuration
3-6-3 System Tab
1) Press Config on the alphanumeric keyboard. The System Configuration window is displayed.
2) Trackball to the System tab and press Select. The software information is displayed in the upper
portion of the tab, as shown below:

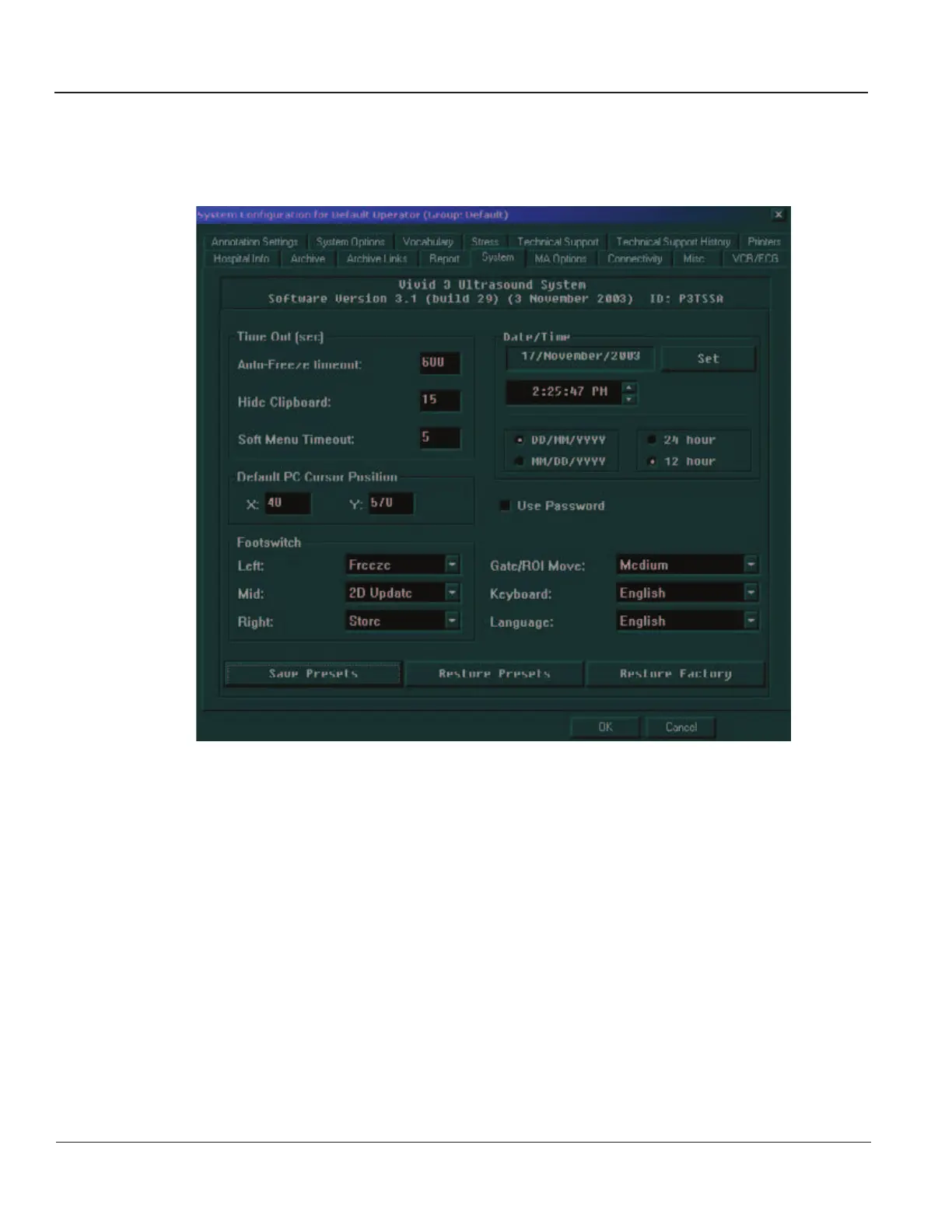

Figure 3-22 System Tab
Note: To avoid corruption of the archives, do not change the date.
3) In the STANDBY timeout field of the Time Out (sec) area, enter the amount of time (in seconds)
after which the system switches to standby mode when it is not being used.
4) In the Date/Time area, set the date and time, as follows:
• Trackball to the Set button and press Select. Use the alphanumeric keyboard to select the
current date.
• Select the format of the date and time display, for example, DD/MM/YYYY.
• Select the hour mode, for example, 24 hour or 12 hour.
• In the Default PC Cursor Position area, specify the default location of the PC cursor on the
screen by entering the X and Y coordinates into the X and Y fields. The
Figure 3-22, above
indicates the recommended default factory setup for X and Y.
5) In the Footswitch area, define the functions that will be performed when each of the three pedals on
the footswitch is used by selecting the relevant function from the Left, Mid and Right drop-down lists.
6) Select the system language from the Language dropdown list.
7) Trackball to the OK button and press Select.
