GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-19
7-3-6 Front End Controller (FEC) Diagnostic Tests (for RFT Configuration)
The FEC diagnostic tests include the following:
• Board Test: General board test which activates the remaining tests sequentially. Each of these
tests can also be performed individually.
• Self Test: An FEC self test generated by the DSP on the FEC board.
• BF Cache Test: Checks the access to the BF cache memory that stores the data for the focuser.
• TEE Temp Test: Checks the TEE probe temperature sensor.
• Thr Temp Test: Diagnoses the temperature threshold for TEE probes.
• Pencil ID Test: Checks the pencil ID circuit in the FEC.
Note: Before performing any of the FEC tests, perform the IMP, VME Bus and RFT tests, as
described beginning on page
7-13. If an FEC test is performed without first performing these
tests, and errors are identified, you must perform the RFT test, and then the VME Bus test and
the IMP test, to ensure that the FEC board is the source of the error.
1) Access the FE Diagnostics dialog box - see
Accessing the Front End Diagnostic Options on page 7 - 6.
2) In the FE Diagnostics dialog box, trackball to the FEC tab and press Select,
OR
Trackball to the FEC button in the Data Flow Map and press Select.
The FEC tab is displayed, as shown below:

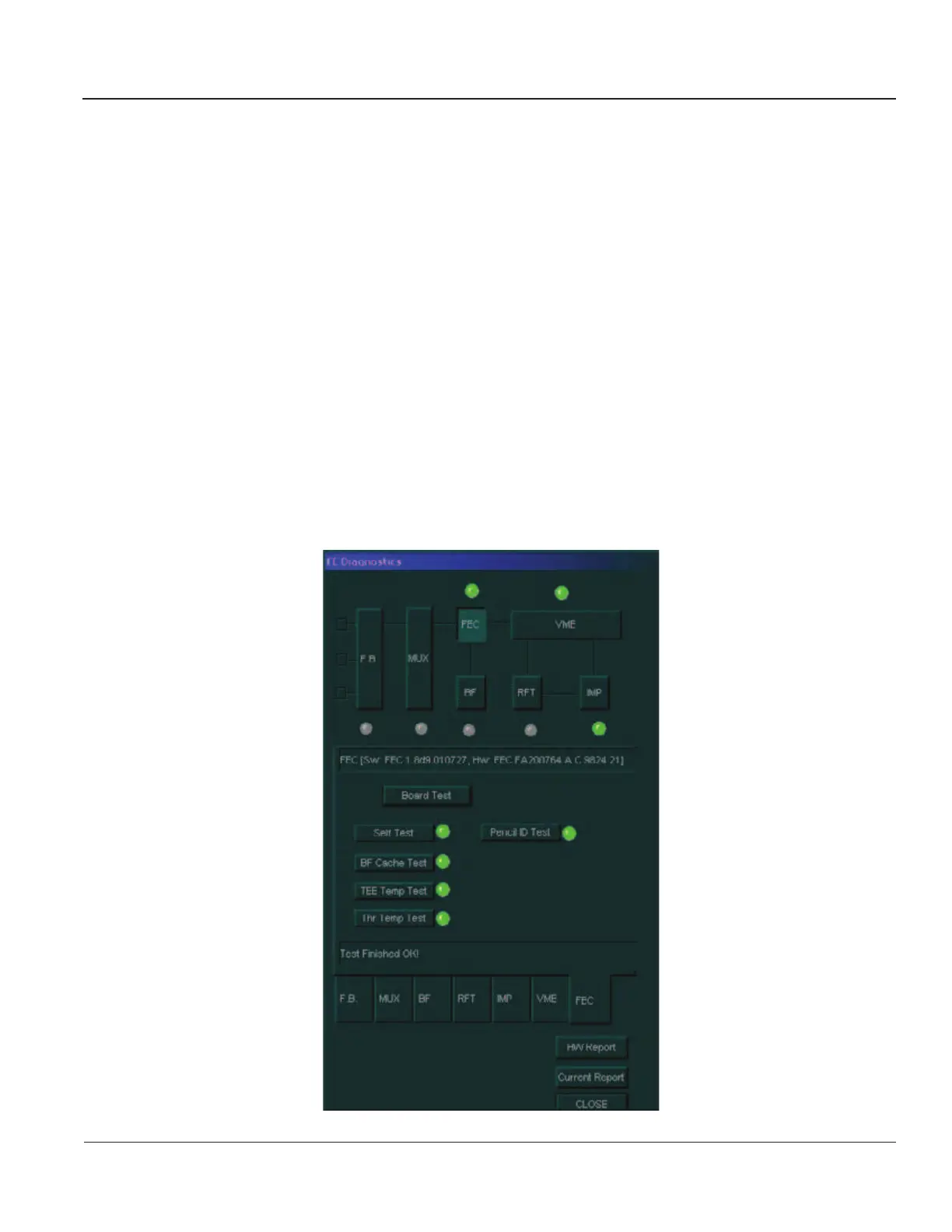

Figure 7-10 FEC Tab - FE Diagnostics Dialog Box
