IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
Chapter 5 - Components and Function (Theory) 5-3
Section 5-3
Block Diagrams
5-3-1 System Block Diagrams
The following system block diagrams are included in this section:
•
System Block Diagram - Vivid™ 3 BT03 - RFI Configuration (see below).
• System Block Diagram - Vivid™ 3 BT03 - RFT Configuration on page 5 - 4
•
System Cabling Diagram - Vivid™ 3 BT03 - RFI Configuration on page 5 - 5.
• System Cabling Diagram - Vivid™ 3 BT03 - RFI Configuration on page 5 - 5.

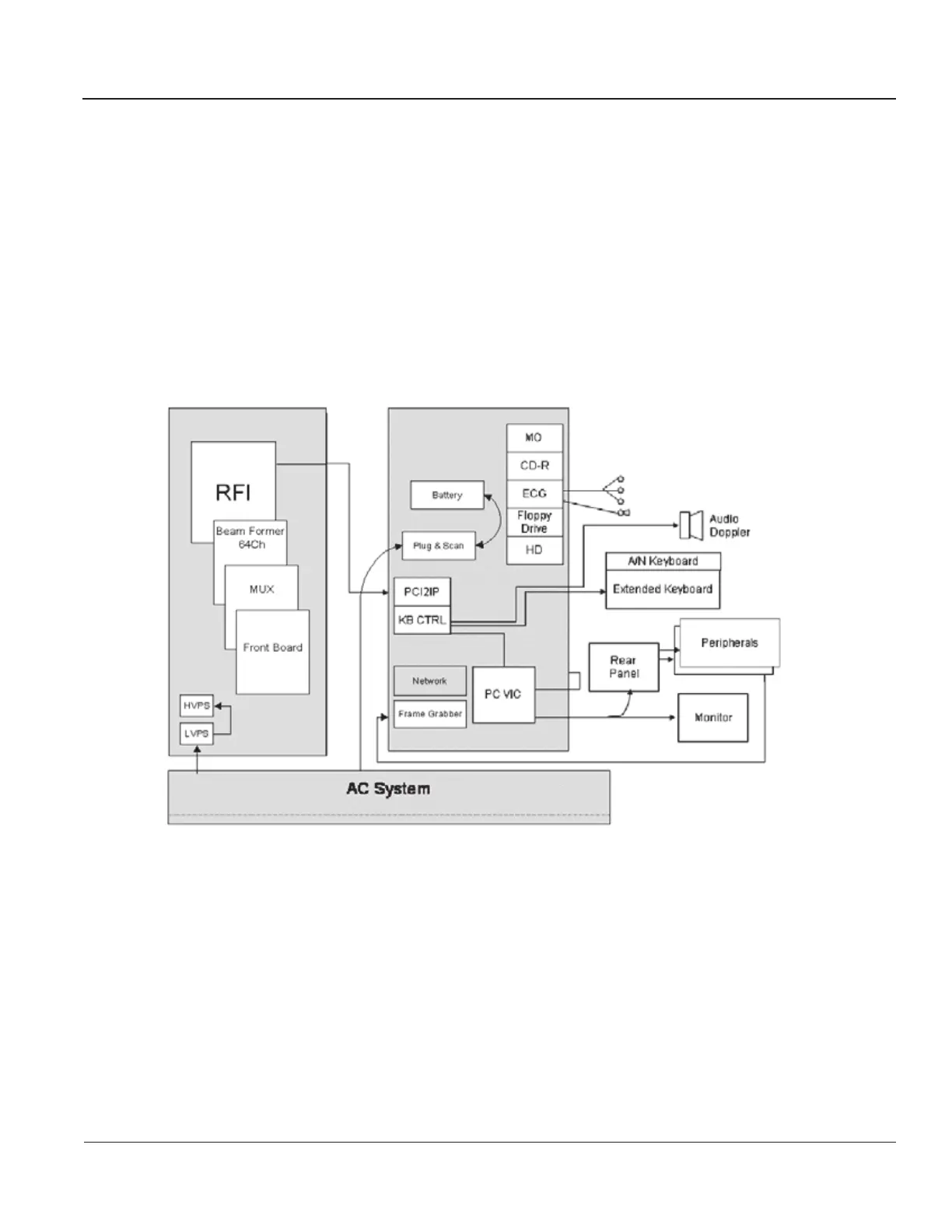

Figure 5-1 System Block Diagram - Vivid™ 3 BT03 - RFI Configuration
