GE Vivid 3 Service Manual
4
of 1
of 1 rating
317 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
GE M
EDICAL
S
YSTEMS
D
IRECTION
2300164-100
, R
EVISION
7
V
IVID
™ 3 P
RO
/V
IV
ID
™ 3 S
ERVICE
M
ANUAL
Chapter 5 - Co
mponents and
Function (The
ory)
5-47
5-7-4

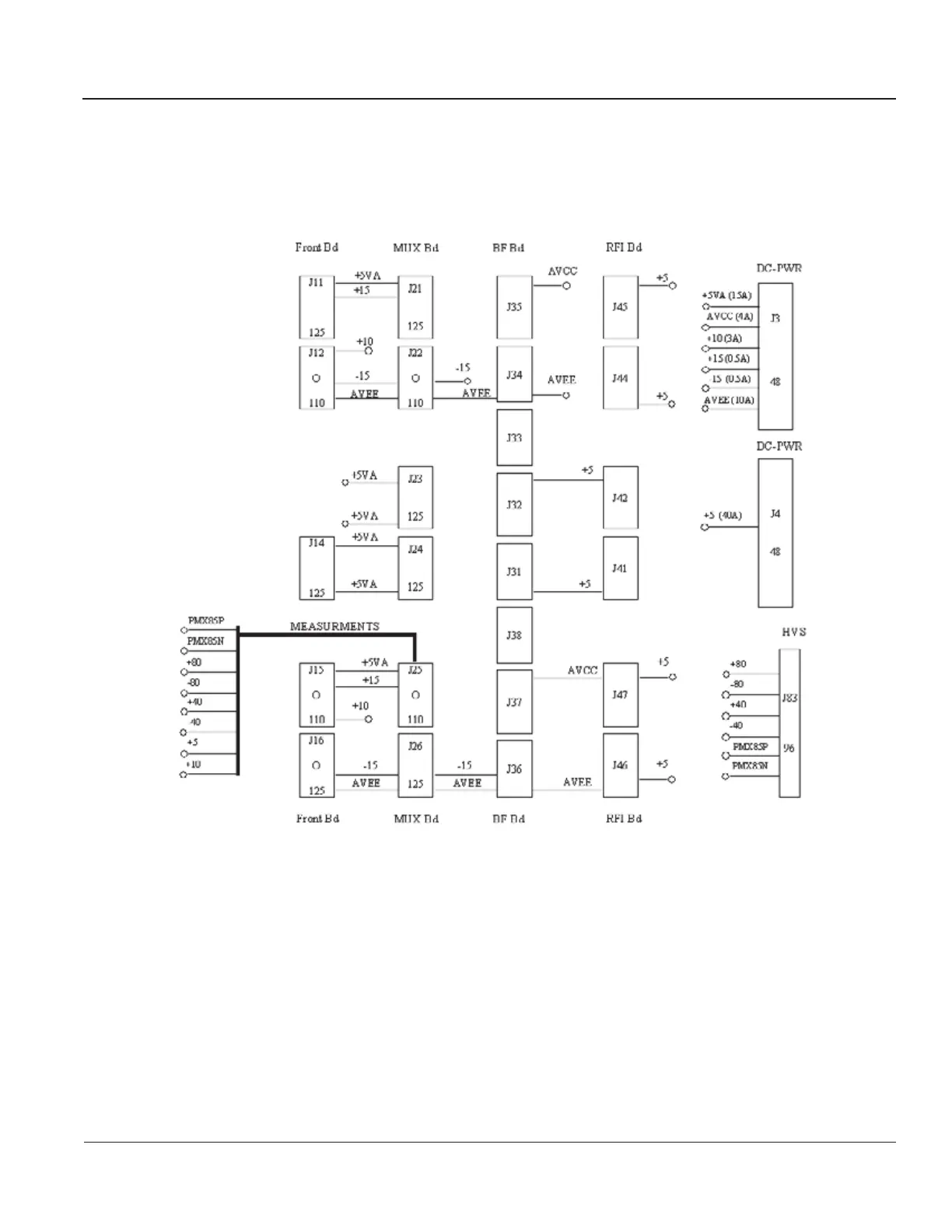

Front End DC Power Distribution
Figure 5-32 D
C Distribut
ion: Front End C
rate (Vivid™ 4 Systems with
RFI Confi
guration)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
220
222
Table of Contents
Default Chapter
9
Table of Contents
9
CHAPTER 1 Introduction
25
Overview
25
Purpose of Chapter 1
25
Purpose of Service Manual
25
Typical Users of the Basic Service Manual
26
VIVID™ 3 Models Covered in this Manual
27
System History - Hardware and Software Versions
29
Purpose of Operator Manual(S)
29
Important Conventions
30
Conventions Used in this Manual
30
Safety Considerations
32
Introduction
32
Human Safety
32
Mechanical Safety
32
Electrical Safety
33
Dangerous Procedure Warnings
34
Product Labels and Icons
35
Product Label Locations
35
Label Descriptions
37
VIVID™ 3 External Labels
39
EMC, EMI, and ESD
49
Electromagnetic Compatibility (EMC)
49
Electrostatic Discharge (ESD) Prevention
49
Standards Used
50
Lockout/Tagout Requirements (for USA Only)
50
Customer Assistance
51
Contact Information
51
CHAPTER 2 Pre-Installation
52
Purpose of Chapter 2
52
Console Requirements
53
Unit Environmental Requirements
53
Cooling Requirements
53
Lighting Requirements
53
Time and Manpower Requirements
53
Electrical Requirements
54
EMI Limitations
56
Probe Environmental Requirements
57
Facility Needs
58
Purchaser Responsibilities
58
Mandatory Site Requirements
59
Site Recommendations
59
Networking Pre-Installation Requirements
60
Connectivity Installation Worksheet
62
CHAPTER 3 Installation
64
Purpose of Chapter 3
64
Installation Reminders
65
Average Installation Time
65
Installation Warnings
65
Safety Reminders
66
Receiving and Unpacking the Equipment
67
Unpacking the Wooden Shipping Crate
67
Unpacking the Cardboard Shipping Carton
72
Unpacking and Removing the Unit from the Cardboard Shipping Carton
72
Preparing for Installation
76
Confirming Customer Order
76
Verifying the Shipping Crate Contents
76
Component Inspection
77
System Voltage Confirmation
82
Video Formats Confirmation
83
Ensuring Protection from EMI
84
Completing the Hardware Installation
85
Connecting the Footswitch
85
Connecting Peripherals
86
Connecting Probes
91
Connecting the ECG
92
Connecting the Unit to a Power Source
94
Switching the System ON/OFF
96
System Configuration
98
Adjusting the Display Monitor
98
Hospital Info Tab
98
System Tab
99
Connectivity Tab
100
Archive Tab
100
Annotation Settings Tab
102
System Options Tab
104
Printers Tab
106
2300164-100, Revision
106
VIVID ™ 3 Pro /V
106
VCR/ECG Tab
108
Technical Support Tab
110
Technical Support History Tab
112
Connectivity Setup
113
Introduction
113
Physical Connection
113
Setting up for Connectivity
115
Setting up the Network Connection
118
Setting up for Communication with a Prosolv Workstation
120
Connecting Directly to Echopac
126
Storing and Transporting the Unit
131
Disconnecting the Unit When Storing
131
Preparing the Unit for Transport
131
Safety Precautions for Moving the VIVID™ 3 Unit
132
Wooden Shipping Crate and Packaging Materials
132
Cardboard Shipping Carton and Packaging Materials
133
Packing the Unit into the Wooden Shipping Crate
134
Assembling the Wooden Shipping Crate
135
Packing the Unit in the Cardboard Shipping Carton
137
Assembling the Cardboard Shipping Carton
138
Completing the Installation Paperwork
139
System Installation Details
139
Product Locator Installation
139
User Manual(S)
140
CHAPTER 4 Functional Checks
141
Overview
141
Purpose of Chapter 4
141
General Procedures
142
Power ON/OFF and Boot-Up Tests
142
Diagnostic Power Supply Test
142
Functional Check
143
Basic Controls
143
Peripherals
144
Mechanical Functions
146
Back End Processor Tests
147
Image Testing: 2D/M/Cfm/Doppler
151
Probe Image Quality Tests
151
Probe Image Quality Tests
158
C358 Curved Probe Image Quality Tests
159
Probe Image Quality Tests
161
Probe 10S Image Quality Tests
165
Pencil) Probe Image Quality Test
165
System Turnover Checklist
166
Software Configuration Checks
166
Site Log
173
CHAPTER 5 Components and Function (Theory)
175
Overview
175
General Information
176
Block Diagrams
177
System Block Diagrams
177
Front End
181
General Information
181
Front Board Assembly (FB)
190
MUX Board
192
Beamformer Board (BF)
193
Radio Frequency Interface (RFI) Board
194
Front End Controller Board (FEC) (RFT)
197
RF and Tissue Processor Board (RFT)
198
Image Port Board (IMP)
199
Back Plane Board (Motherboard)
199
Back End Processor
200
Introduction
200
Central Processing Unit (CPU)
205
Keyboard Controller
208
Multifunction I/O Controller
209
Frame Grabber (RFI Systems Only)
209
Pc2Ip
209
Plug and Scan Card and Battery
209
Network Onboard
209
SCSI Card
209
Floppy Drive
210
Hard Disk
210
Magneto-Optical Drive (MOD)
211
CD Read Write (CDRW)
211
ECG Module
211
Modem
212
PC-VIC Assembly
213
External Peripherals
215
Introduction
215
VIVID™ 3 Power Distribution
216
Electrical Power
216
AC System
217
AC Distribution Box
219
Front End DC Power Distribution
221
Front End Cooling System
223
General Description
223
Location in the Unit
223
Common Service Platform
224
Introduction
224
Ilinq Interactive Platform Features
224
Global Service User Interface (GSUI)
225
CHAPTER 6 Service Adjustments
228
Input AC Voltage Configuration
228
Secondary Voltage Configuration
228
AC Input Cord
228
Front End Voltages and Signal Indicators
229
RFI Leds
231
Image Port (IMP) Leds
231
Front End Controller (FEC) Leds
232
RF and Tissue Processor (RFT)
232
Beamformer (BF)
232
Channels Multiplexer (MUX)
233
Front Board Assembly (FB)
233
Back End Power Supply Voltages
234
VIC Video Signal Setting
234
Video Format Confirmation
234
Monitor Operation
235
VIVID™ 3 Samsung 15" and 17" Monitor Operation
235
Image Quality Calibration
238
Image Quality Calibration for the VIVID™ 3 15" and 17" Samsung Monitors
238
Calibration
240
Accessing the Calibration Options
240
Monitor Calibration
242
Beamformer Calibration
243
Video Grabbing Calibration
243
CHAPTER 7 Diagnostics/Troubleshooting
246
Diagnostics
246
Diagnostic Tools
246
Diagnostic Procedure Summary
246
Accessing the Diagnostic Menu
247
Performing Front End (FE) Diagnostics
249
Accessing the Front End Diagnostic Options
250
Radio Frequency Interface (RFI) Diagnostic Tests (for RFI Configuration)
255
Image Port (IMP) Diagnostic Tests (for RFT Configuration)
257
VME Bus (VME) Diagnostic Tests (for RFT Configuration)
259
RFT Diagnostic Tests (for RFT Configuration)
261
Front End Controller (FEC) Diagnostic Tests (for RFT Configuration)
263
Beamformer (BF) Diagnostic Tests
265
Front Board Assembly (FB) Diagnostic Tests
269
