9.4 Port Status Indication

 Select the Basics:System dialog.

The device view shows the device with the current configuration. The

status of the individual ports is indicated by one of the symbols listed

below. You will get a full description of the port's status by positioning

the mouse pointer over the port's symbol.

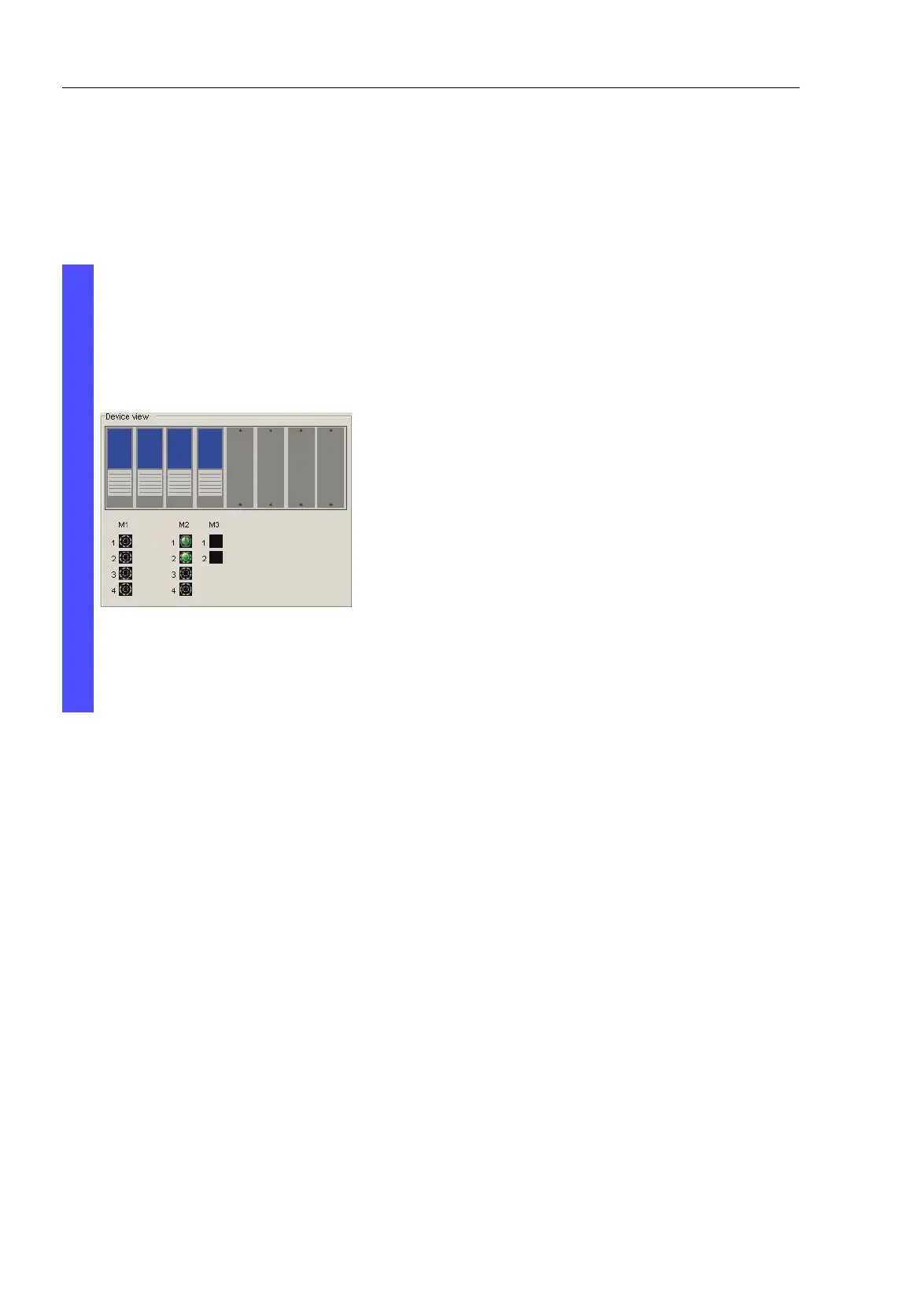

Figure 54: Device View
