10 EtherNet/IP
EtherNet/IP, which is accepted worldwide, is an industrial communication
protocol standardized by the Open DeviceNet Vendor Association (ODVA)
on the basis of Ethernet. It is based on the widely used transport protocols
TCP/IP and UDP/IP (standard). EtherNet/IP thus provides a wide basis,
supported by leading manufacturers, for effective data communication in the
industry sector.

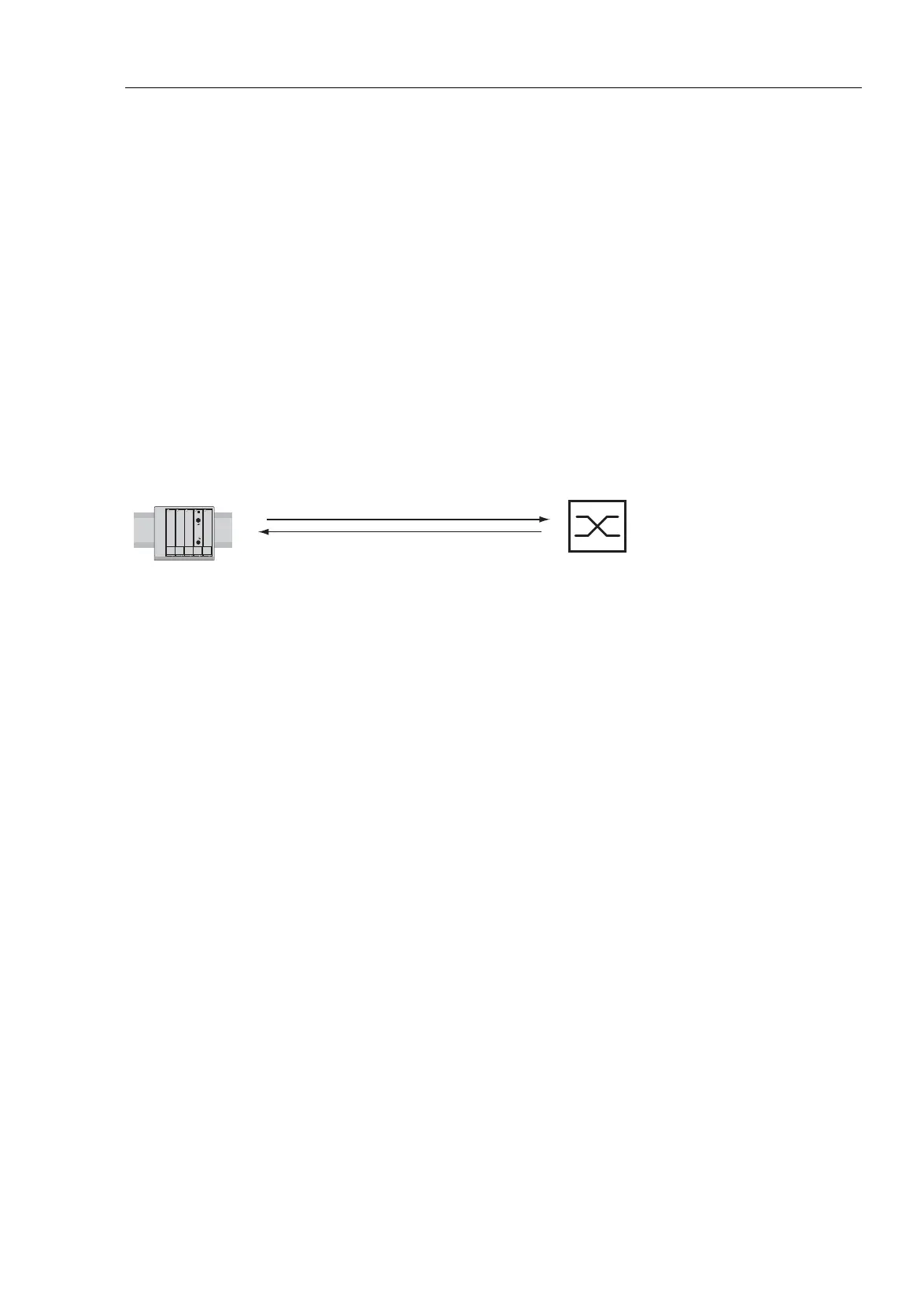

Figure 60: Communication between the controller (PLC) and the switch
EtherNet/IP adds the industry protocol CIP (Common Industrial Protocol) to
the Ethernet as an application level for automation applications. Ethernet is
thus ideally suited to the industrial control technology sector.
UDP/IP Unicast
EtherNet/IP-Stack
Controller
UDP/IP Unicast/Multicast
