124 75 Series Mobile Computer User Guide

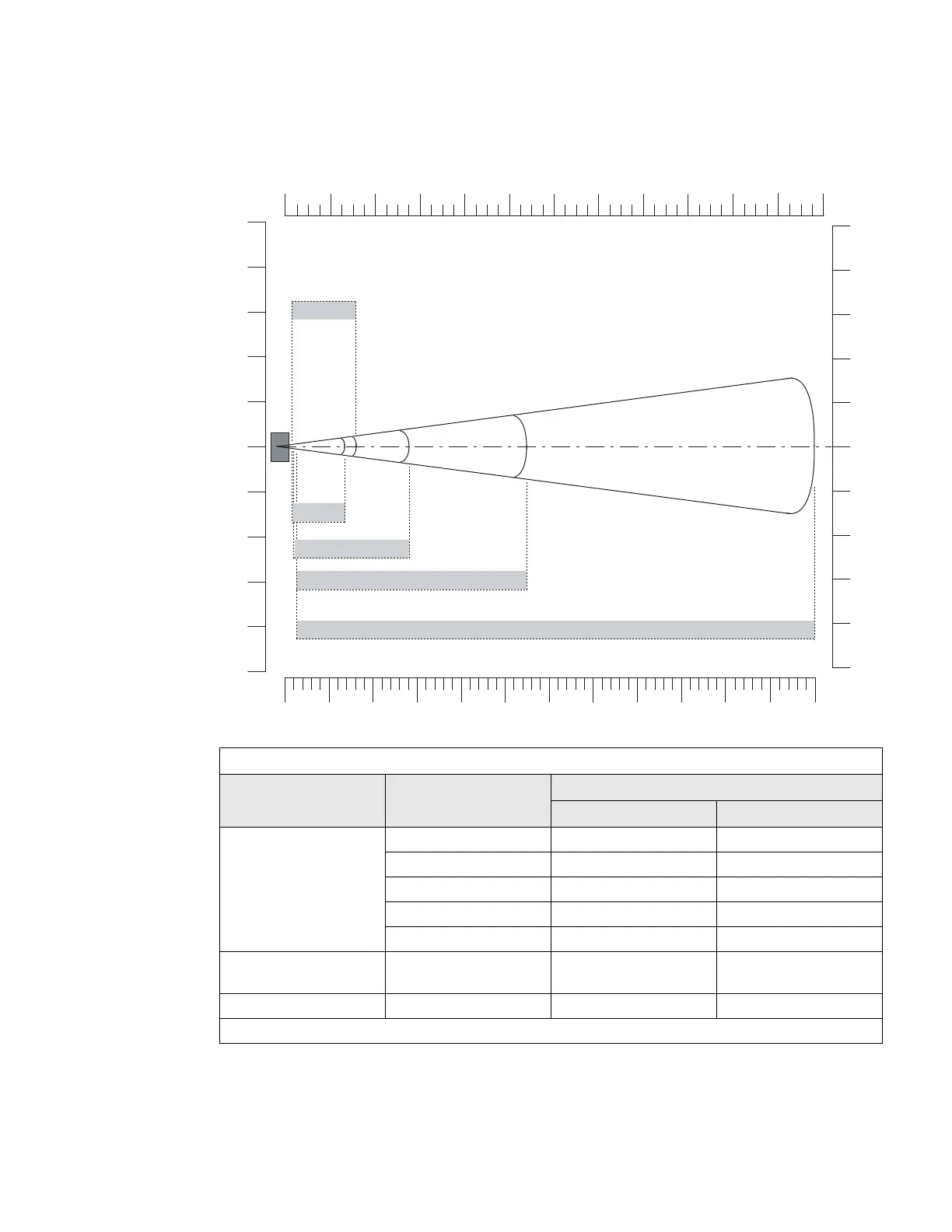

EX25 Typical Reading Distance (1D)
Typical reading distances are measured in an office environment (200 lux).
The following graphics do not include the 0.24 cm (0.09 in) setback for the CK75.
EX25 1D Symbologies Typical Reading Distances with 0.24 cm (0.09 in) Setback
Symbology Density
Distance
Minimum Maximum
Code 39 0.25 mm (10 mils) 15 cm (5.91 in) 135 cm (53.15 in)
0.5 mm (20 mils) 16 cm (6.30 in) 280 cm (110.24 in)
1 mm (40 mils) 25 cm (9.84 in) 550 cm (216.54 in)
1.4 mm (55 mils) 40 cm (15.75 in) 720 cm (283.46 in)
2.5 mm (100 mils) ** 1200 cm (472.44 in)
Code 128
retro-reflective
2.5 mm (100 mils) ** 1300 cm (511.81 in)
EAN 100% 0.33 mm (13 mils) 15 cm (5.91 in) 160 cm (62.99 in)
** Minimum distance depends on bar code width and scan angle.
