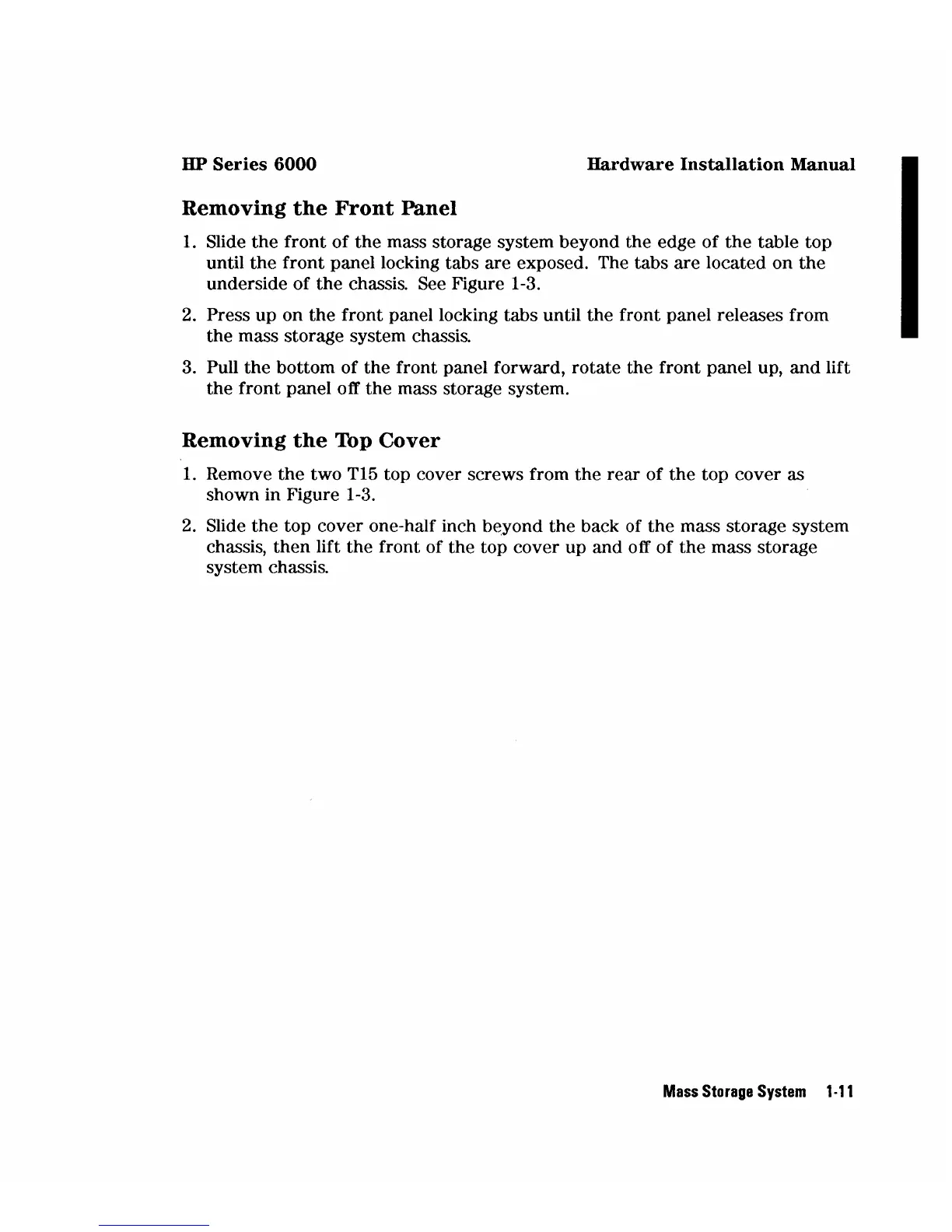

HP
Series
6000
Hardware
Installation
Manual
Removing
the
Front
Panel
1.
Slide
the
front of
the
mass storage system beyond the edge of
the
table top
until
the
front panel locking tabs are exposed. The tabs are located on
the
underside of
the
chassis. See Figure 1-3.
2.
Press up on
the
front panel locking tabs until the front panel releases from
the mass storage system chassis.
3. Pull
the
bottom of the front panel forward, rotate the front panel up,
and
lift
the front panel off the mass storage system.
Removing
the
Top
Cover
1.
Remove
the
two
T15
top cover screws from
the
rear of
the
top cover as
shown in Figure 1-3.
2.
Slide
the
top cover one-half inch beyond the back of
the
mass storage system
chassis,
then
lift the front of the top cover up and off of
the
mass storage
system chassis.
Mass
Storage
System
1·11
