Hardware
Installation
Manual HP
Series
6000

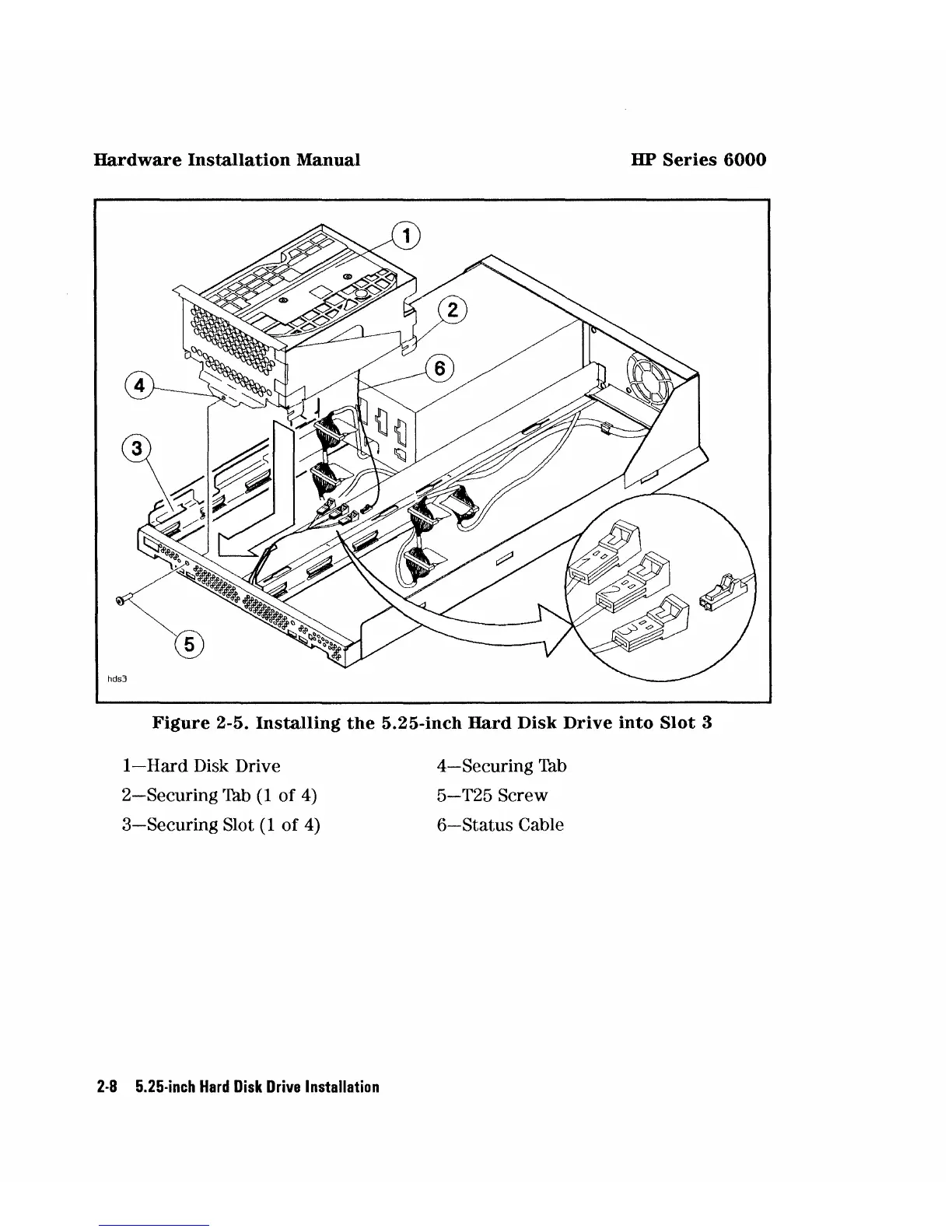

Figure
2-5.
Installing
the
5.25-inch Hard
Disk
Drive
into
Slot
3
I-Hard
Disk Drive
2-Securing
Tab
(1
of
4)
3-Securing
Slot
(1
of
4)
2·8
5.25·inch
Hard
Disk
Drive
Installation
4-Securing
Tab
5-T25
Screw
6-Status
Cable
