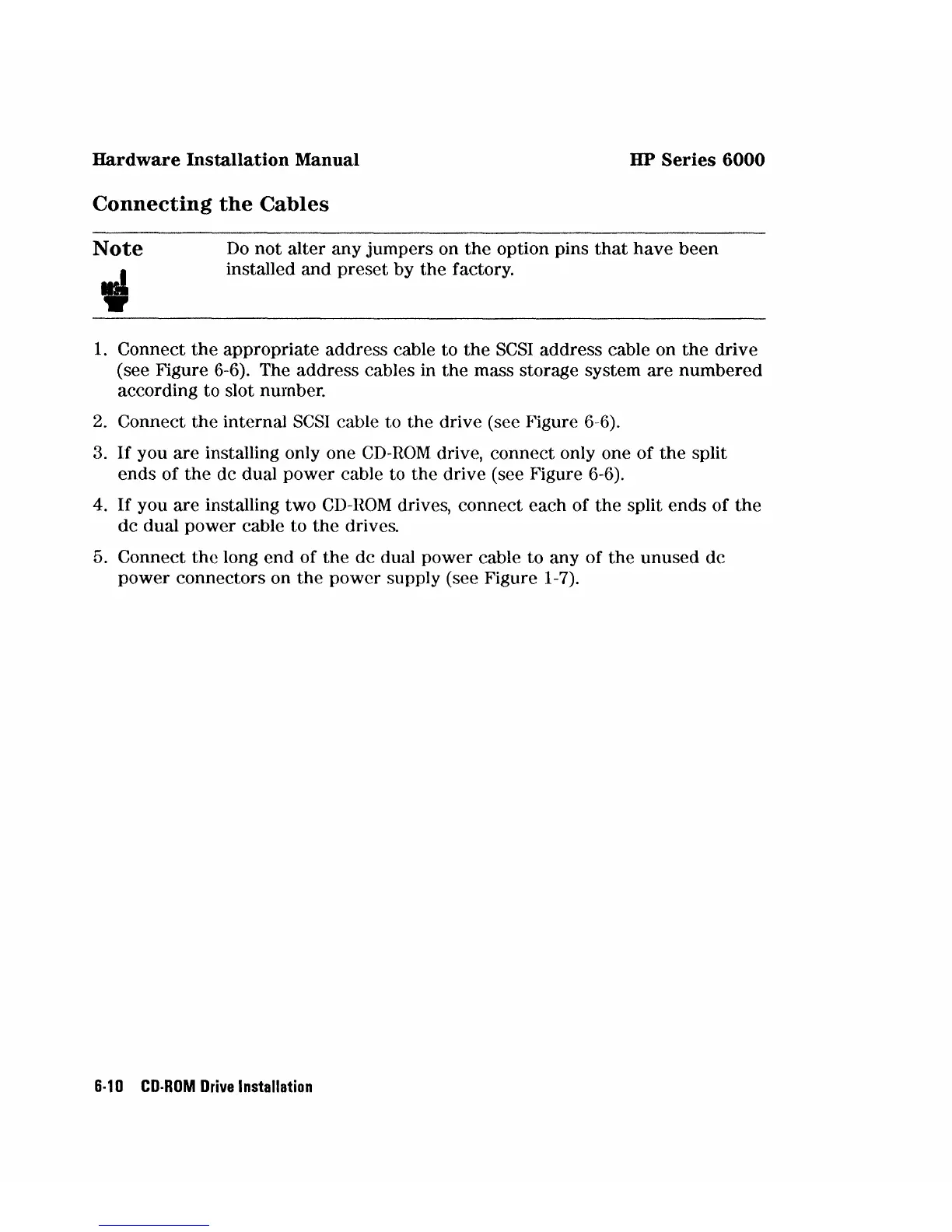

Hardware Installation Manual
HP
Series
6000
Connecting
the
Cables
Note
Do
not
alter any jumpers on
the
option pins
that
have
been
installed and preset by the factory.
1.
Connect
the
appropriate address cable to
the
SCSI
address cable on
the
drive
(see Figure 6-6). The address cables in
the
mass storage system are numbered
according to slot number.
2.
Connect
the
internal
SCSI
cable to the drive (see Figure 6-6).
3.
If
you are installing only one
CD-ROM
drive, connect only one of
the
split
ends of
the
dc dual power cable to the drive (see Figure 6-6).
4.
If
you are installing two
CD-ROM
drives, connect each of
the
split ends of
the
dc dual power cable to
the
drives.
5.
Connect
the
long end of
the
dc dual power cable to any of
the
unused dc
power
connectors on
the
power supply (see Figure 1-7).
6·10
CD·ROM
Drive
Installation
