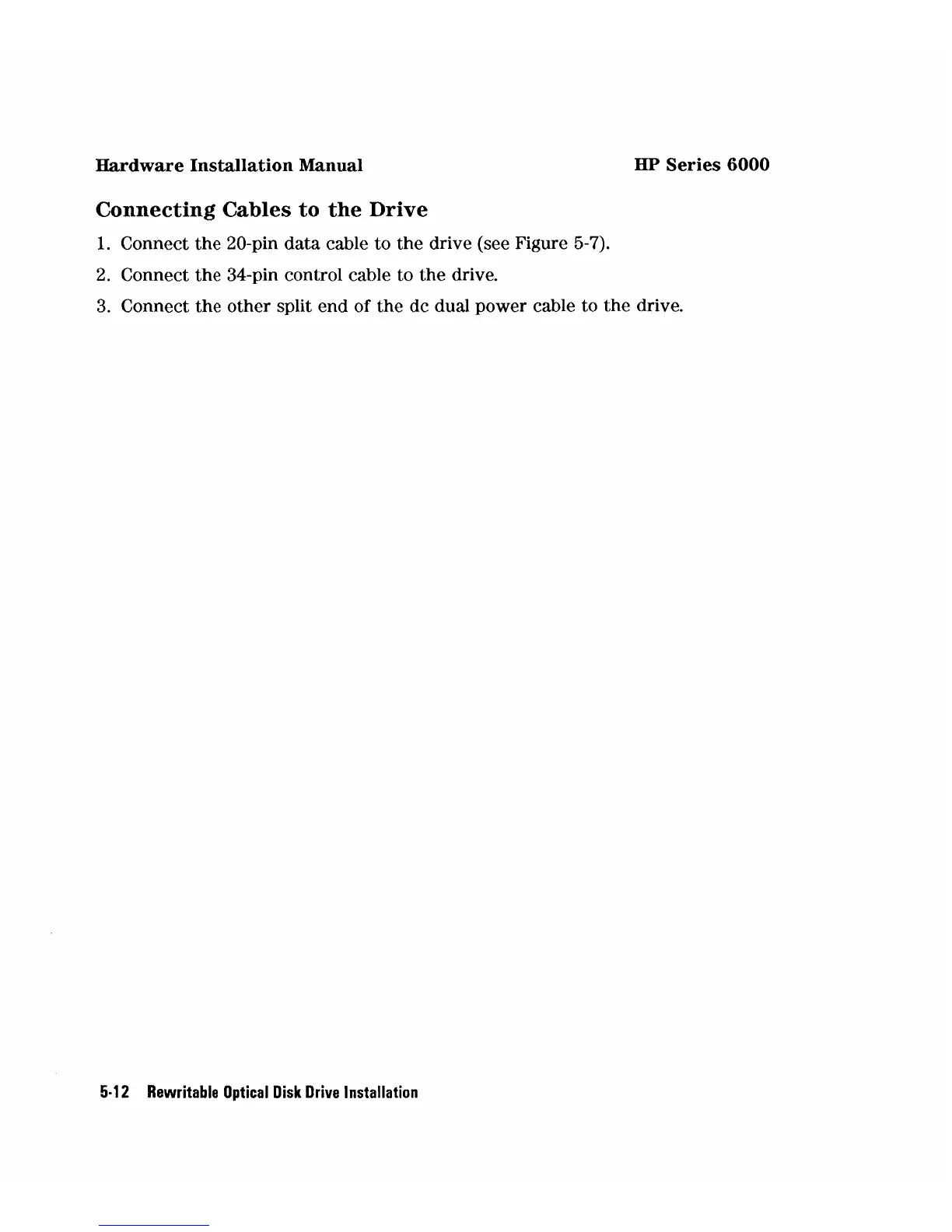

Hardware
Installation
Manual
HP
Series
6000
Connecting
Cables
to
the
Drive
1.
Connect the 20-pin
data
cable to the drive (see Figure 5-7).
2.
Connect the 34-pin control cable to the drive.
3.
Connect the other split end of the dc dual power cable to
the
drive.
5·12
Rewritable
Optical
Disk
Drive
Installation
