Your Workstation’s Front Panel
Your Workstation’s Front Panel
Before powering on your system, you should become familiar with the system unit
controls. Figure 1-1. shows the system unit front panel controls.

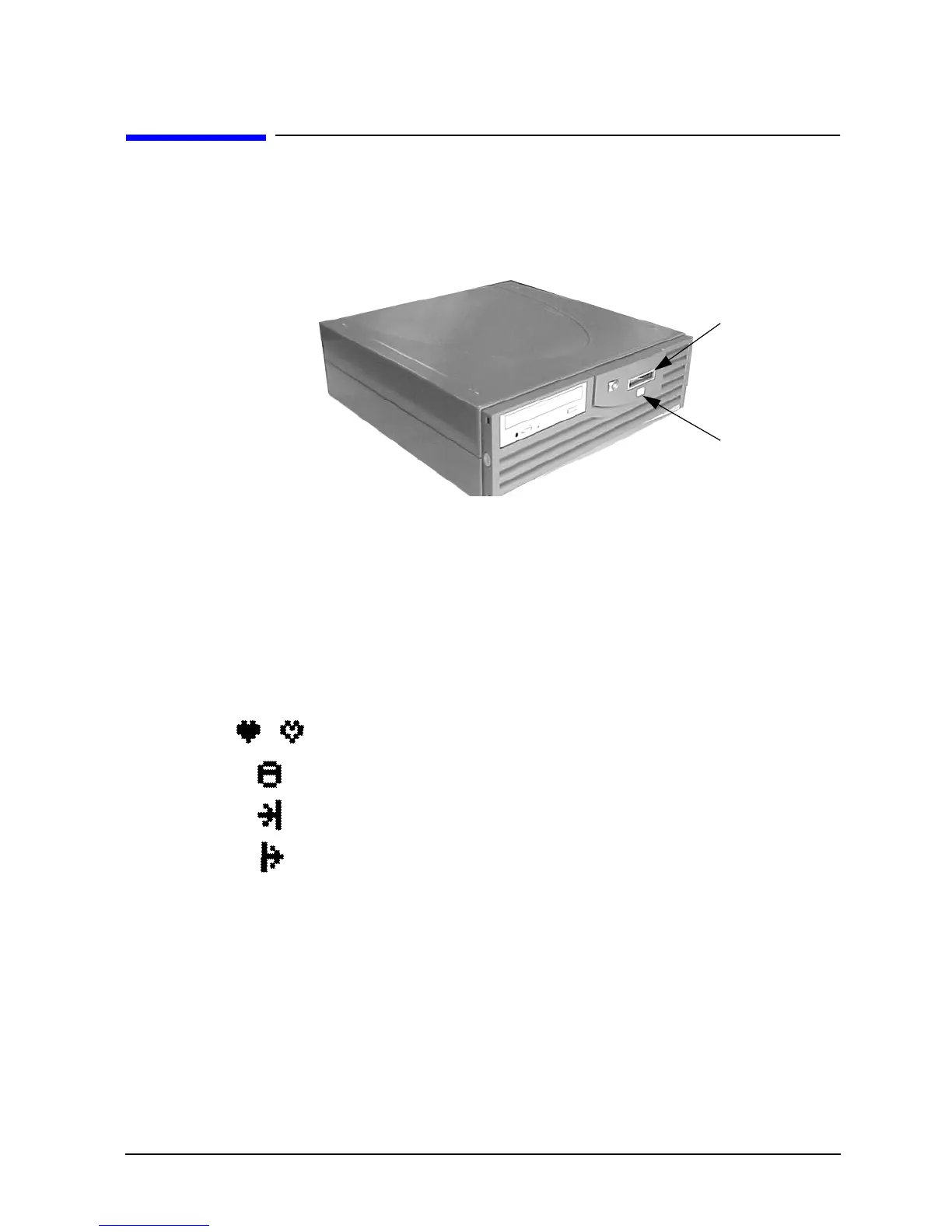

Figure 1-1. System Unit Front Panel
System LCD
The Liquid Crystal Display (LCD) is located on the front panel. The LCD has two
16-character lines. The LCD displays messages about the state of the system, including
chassis codes. The symbols in Figure 1-2. appear in the LCD if you have the HP-UX 10.20,
11.0 or 11i operating system booted on your system. They represent the different system
activities shown:
Figure 1-2. LCD Symbols for System Activities
System Power Button
The power button is used to turn the system unit on and off. When you turn your
workstation off, the operating system executes an automatic shutdown -h command. This
prevents any damage to programs and data on your system disk. Turning the power switch
back on again automatically boots up the HP-UX 10.20, 11.0 or 11i operating system if
your system has been configured to auto boot.
LCD
Power
Button
Operating system running (heart beat)
Disk access in progress
Network receive in progress
Network transmit in progress
