Appendix G
Remove/Replace Flexible Disk Drives
Replacing the Flexible Disk Drive
201
Replacing the Flexible Disk Drive
To replace the flexible disk drive, follow the procedure in this section. Note that this procedure
assumes you already have a SCSI card and cable installed in your system.
1. Remove the current flexible disk drive if you have not already done this. Otherwise skip this
step. To remove the flexible disk drive, follow the procedure in the section “Removing the
Flexible Disk Drive” found in this appendix.
2. Place the new flexible disk drive in the flexible disk drive bracket and screw the bracket
mounting screws into the two threaded holes located on both sides of the disk drive. See
Figure
G-10.

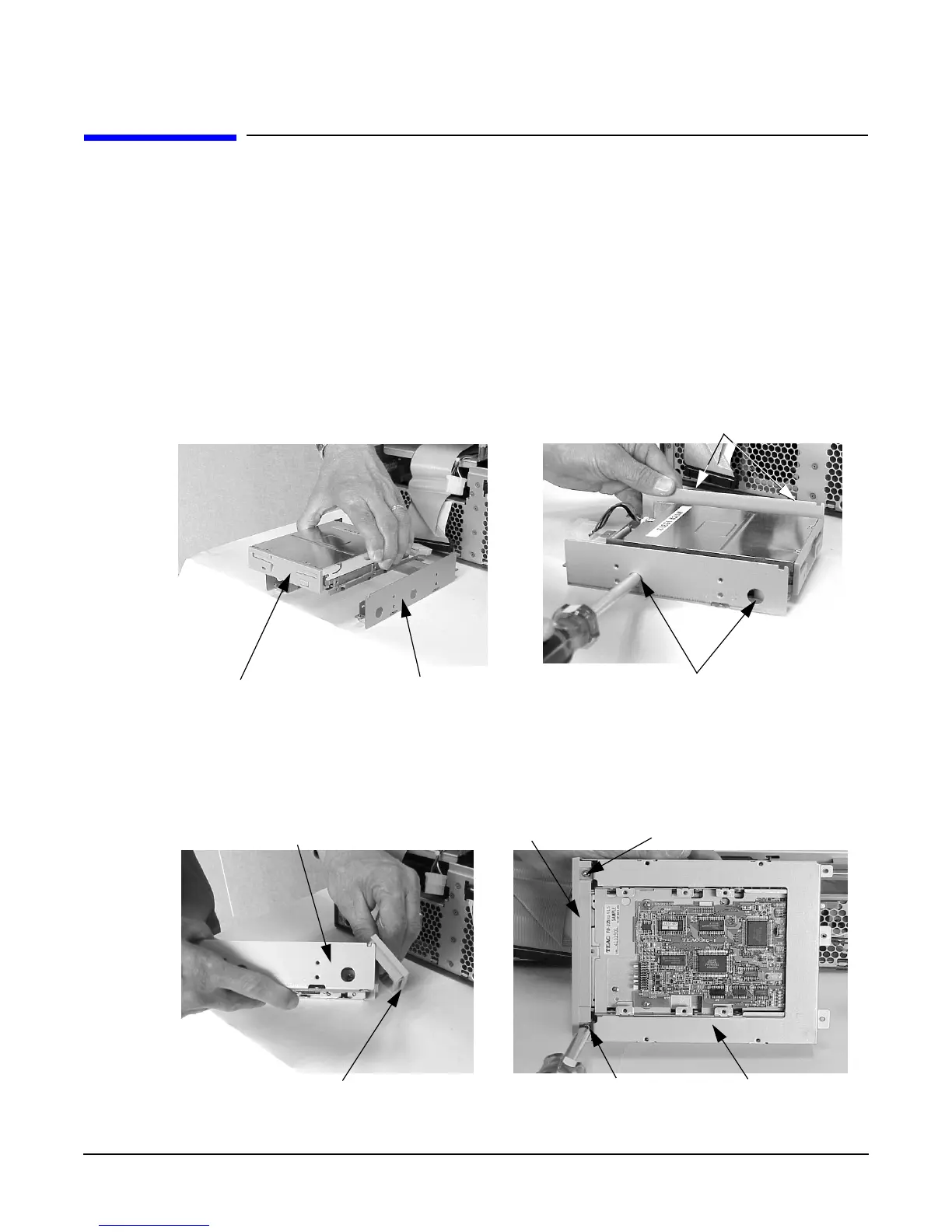

Figure G-10 Unscrew the Four Flexible Disk Drive Mounting Screws
3. Replace the flexible disk drive bezel by rotating it inward toward the disk drive’s bracket and
screw in the bezel mounting screws. See
Figure G-11.
Figure G-11 Screwing in the Flexible Disk Drive Bezel’s Mounting Screws
Bracket Mounting
crews
Bracket Mounting Screws
Flexible Disk Drive
Bracket
Flexible Disk Drive
Bezel Mounting Screw
Mounting Screw
Flexible Disk Drive’s
Bottom Side
Flexible Disk Drive’s
Bracket
Bezel
To Next Page
