Replacing the Audio Card
To replace the audio card, follow this procedure:
NOTE PCI slot one is the recommended PCI card slot to use when installing the audio
card.
To determine the correct numbering for the PCI card slots, see the PCI card
slot openings on the back of the workstation. You will also find PCI card slot
numbers on the PCI cage inside of the workstation and on the PCI backplane
board.
1. Remove the audio card if you have not already done this. Otherwise, skip this step. To
remove the audio card, follow the procedure in the section “Removing the Audio
Card” found in this chapter.
2. Remove the bulkhead blank from slot one of the PCI cage. You will have to unscrew its
bulkhead screw to remove it. See Figure 3-81.

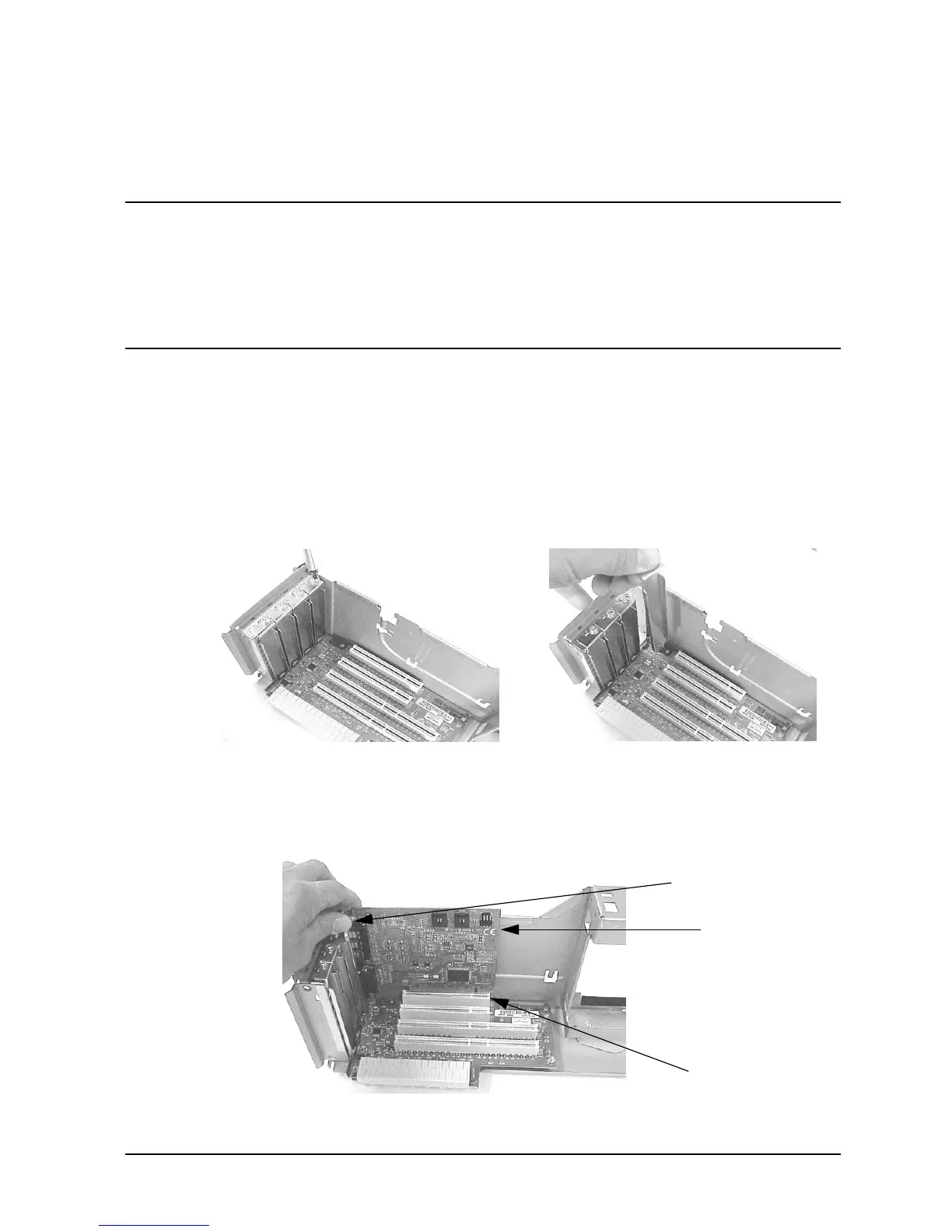

Figure 3-81. Remove the Bulkhead Blank from the PCI Cage
3. Remove the audio card from its anti-static bag and insert it into slot one of the PCI card
cage. See Figure 3-82.
Figure 3-82. Insert the Audio Card into Slot One of the PCI Cage
Unscrew bulkhead screw Remove bulkhead blank
Audio Card
PCI Slot 1
Audio Card Bulkhead
Audio Card’s
Rear Edge
