Chapter 3 77
Remove/Replace System Components
Removing/Replacing System Components
Removing the Fan Modules
The HP B2600 workstation has two fan modules to keep it cool. There is a fan module
located in the system area and one in the PCI area. See Figure 3-61. This section explains
how to remove these fan modules.
Note that fan errors will be displayed on the LCD if the fans are running too slow or
stopped. The fan error for a stopped fan is D01
n
and the fan error for a slow fan is D02
n
where
n
is the number of the fan with the error. See Table 3-1.

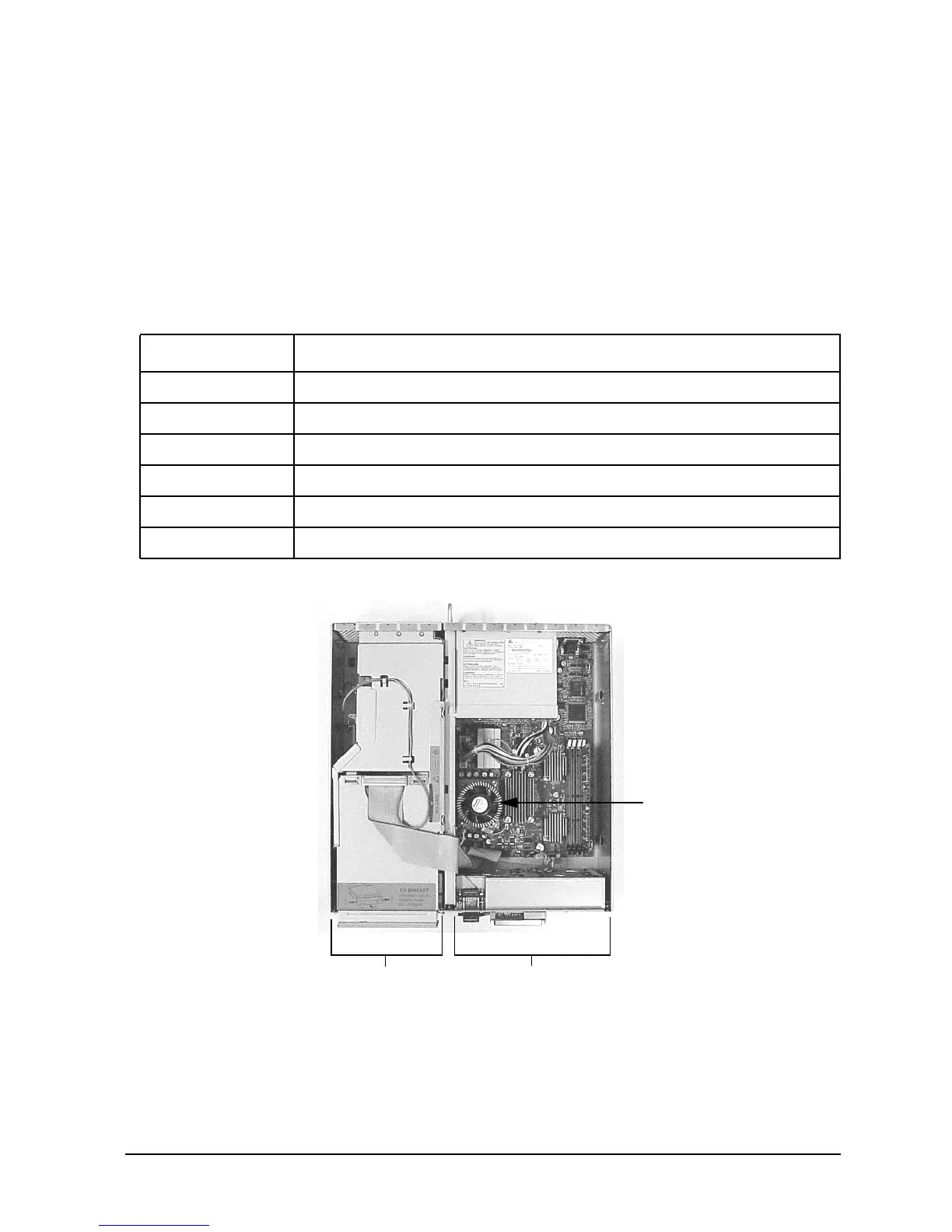

Figure 3-61. System and PCI Fan Areas
Table 3-1. System Area and PCI area Fan Numbers
Fan Number Description
1 Power Supply Fan
2 Right System Area Fan (as you face the system’s front)
3 Left System Area Fan (as you face the system’s front)
5 Left PCI Area Fan (as you face the system’s front)
6 Right PCI Area Fan (as you face the system’s front)
7 CPU’s Turbo-Cooler Heatsink
PCI Area
System Area
FRONT
CPU Turbo-Cooler
Heatsink
