Chapter 1: Installing the Emulation Probe
Connecting the Emulation Probe to a LAN
# Specific emulator entry specifying hardware address
# (link-level address) and ip address.
hpprobe.div.hp.com:\
:tc=hp64700.global:\
:ha=080009090B0E:\
:ip=192.6.29.31
In this example, the “ha=080009090B0E” identifies the link-level
address of the emulation probe. The “ip=192.6.29.31” specifies the IP
address that is assigned to the emulation probe. The node name is
“hpprobe.div.hp.com”.
3 Connect the emulation probe to your network.
This connection can be made by using either LAN connector on the
emulation probe.

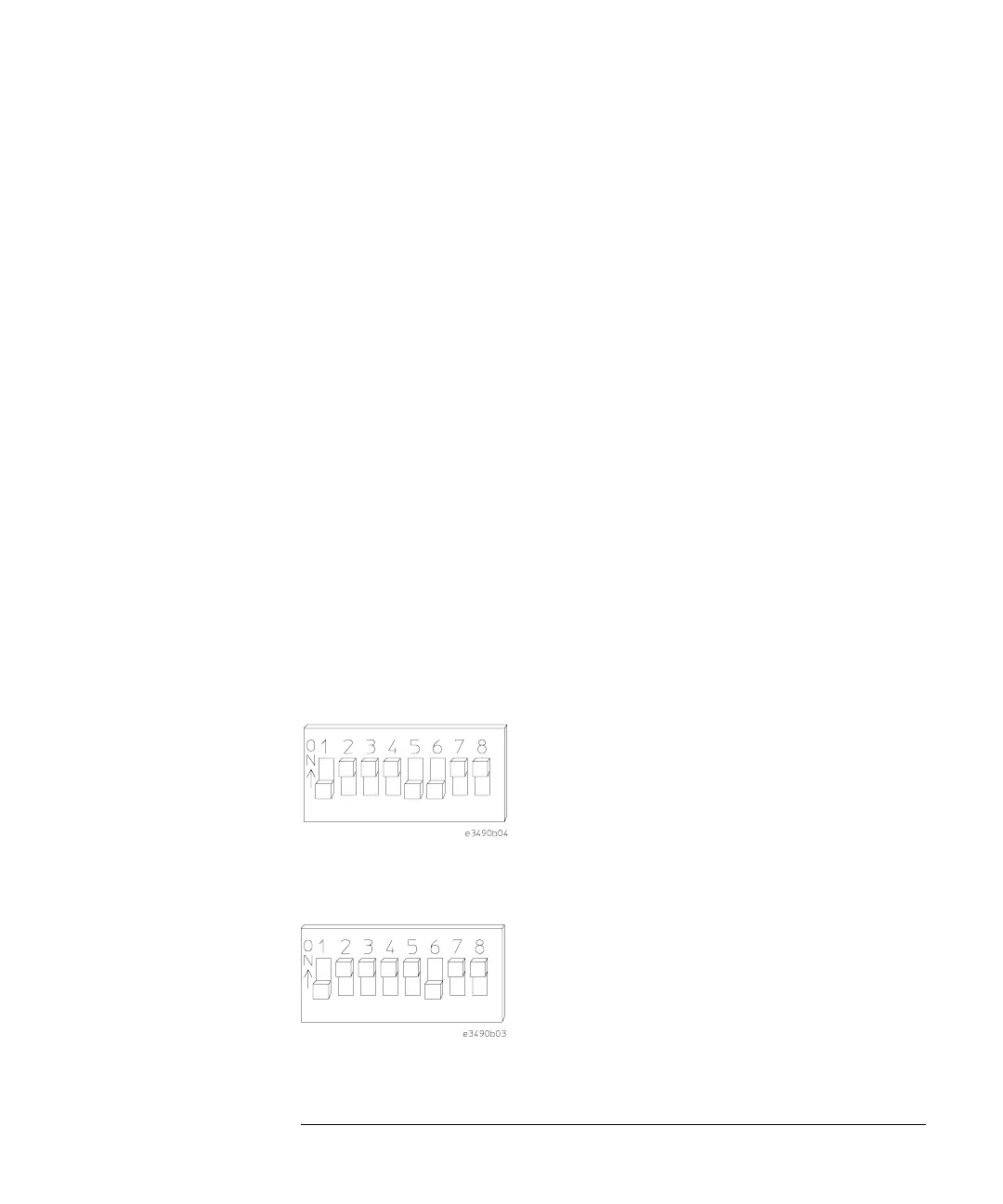

4 Set the configuration switches to indicate the type of connection
that is to be made.
Switch S1 must be set to OFF, indicating that a LAN connection is
being made.
Switch S6 must be set to OFF to enable BOOTP mode.
Switch S5 should be set to OFF if you are connecting to the BNC
connector.
Switch S5 should be set to ON if you are connecting to the 10BASE-T
connector.
If you are using the 10BASE-T connector, see “To set the 10BASE-T
