Table 2-1 iLO 2 MP Status LEDs (continued)
LED StateiLO 2 MP Status LED
Flashing green.iLO 2 MP Heartbeat
Flashing green.BMC Heartbeat
iLO 2 MP Reset Button
The iLO 2 MP Reset button enables you to reset the iLO 2 MP and reset the user-specific values
to factory default values. A momentary press causes a soft reset of the iLO 2 MP when the button
is released. A greater than four second press causes a soft reset of the iLO 2 MP upon release and
resets local user accounts and passwords to factory default values.
Resetting Local User Accounts and Passwords to Default Values
If iLO 2 MP user passwords are lost, or iLO 2 MP local user accounts are disabled and logging
in through LDAP directory server is unsuccessful because the directory server is down or directory
settings have not been configured properly in LDAP command, you can reset local user accounts
and passwords to their default values.
To reset local user accounts and passwords to default values, follow these steps:
1. Connect a serial terminal (or serial-cabled laptop with serial emulation) to the console serial
port.
2. Press and hold the iLO 2 MP Reset button for more than four seconds. The iLO 2 MP reboots
to factory default settings automatically.
3. Respond to the prompt to reset local user accounts and passwords to default values.
Console Serial Port and Auxiliary Serial Port
Figure 2-5 shows the console serial port connector with numbered labels for each pin on each
port.

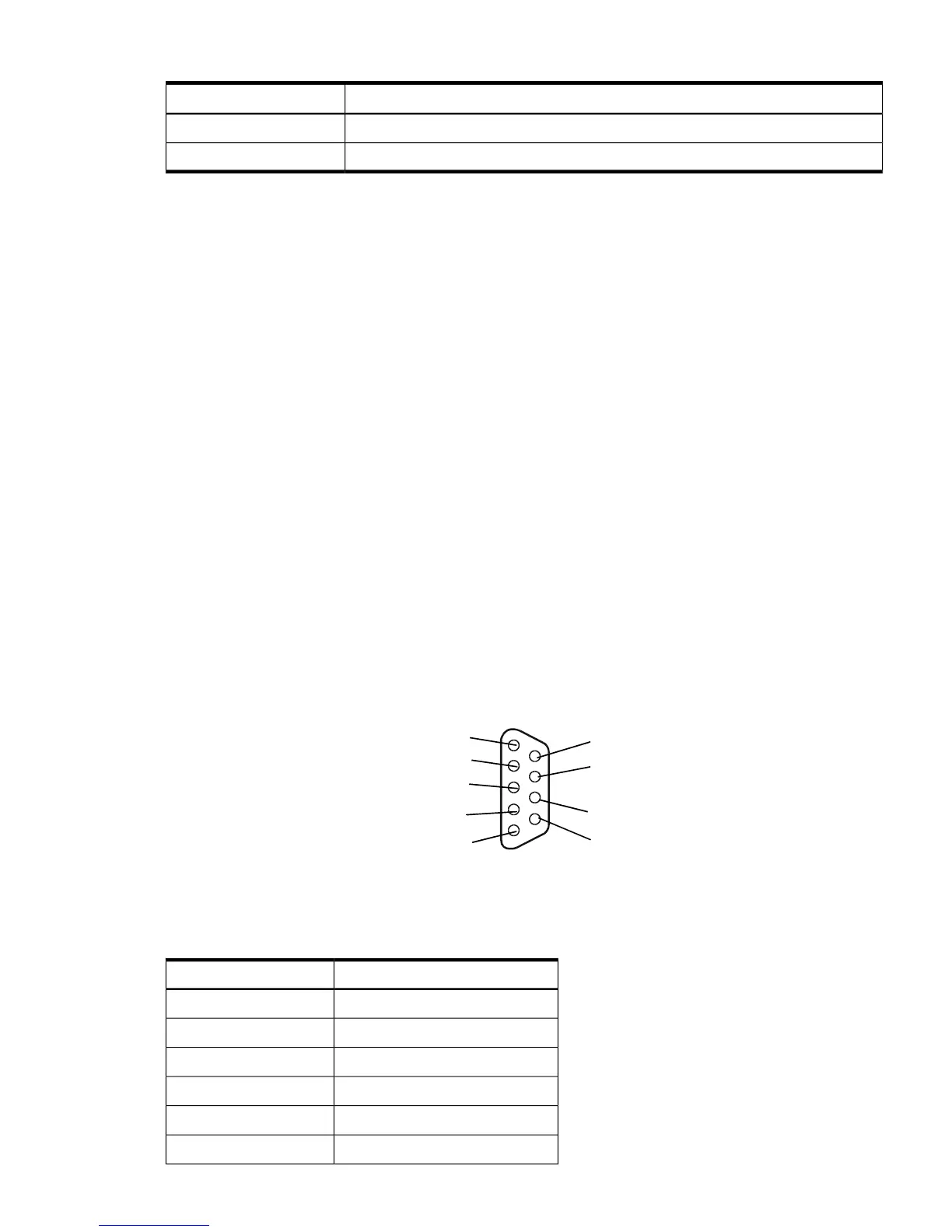

Figure 2-5 Console Serial Port (RS-232) Connector
5
4
3
2
1
9
8
7
6
Table 2-2 maps the console serial port connector pin number to its signal description on each
port.
Table 2-2 Console Serial Port Pinouts
Signal DescriptionPin Number
Not used1
Receives data2
Transmits data3
Not used4
Ground5
Not used6
iLO 2 MP Reset Button 31
