1-52
Static Virtual LANs (VLANs)
Special VLAN Types

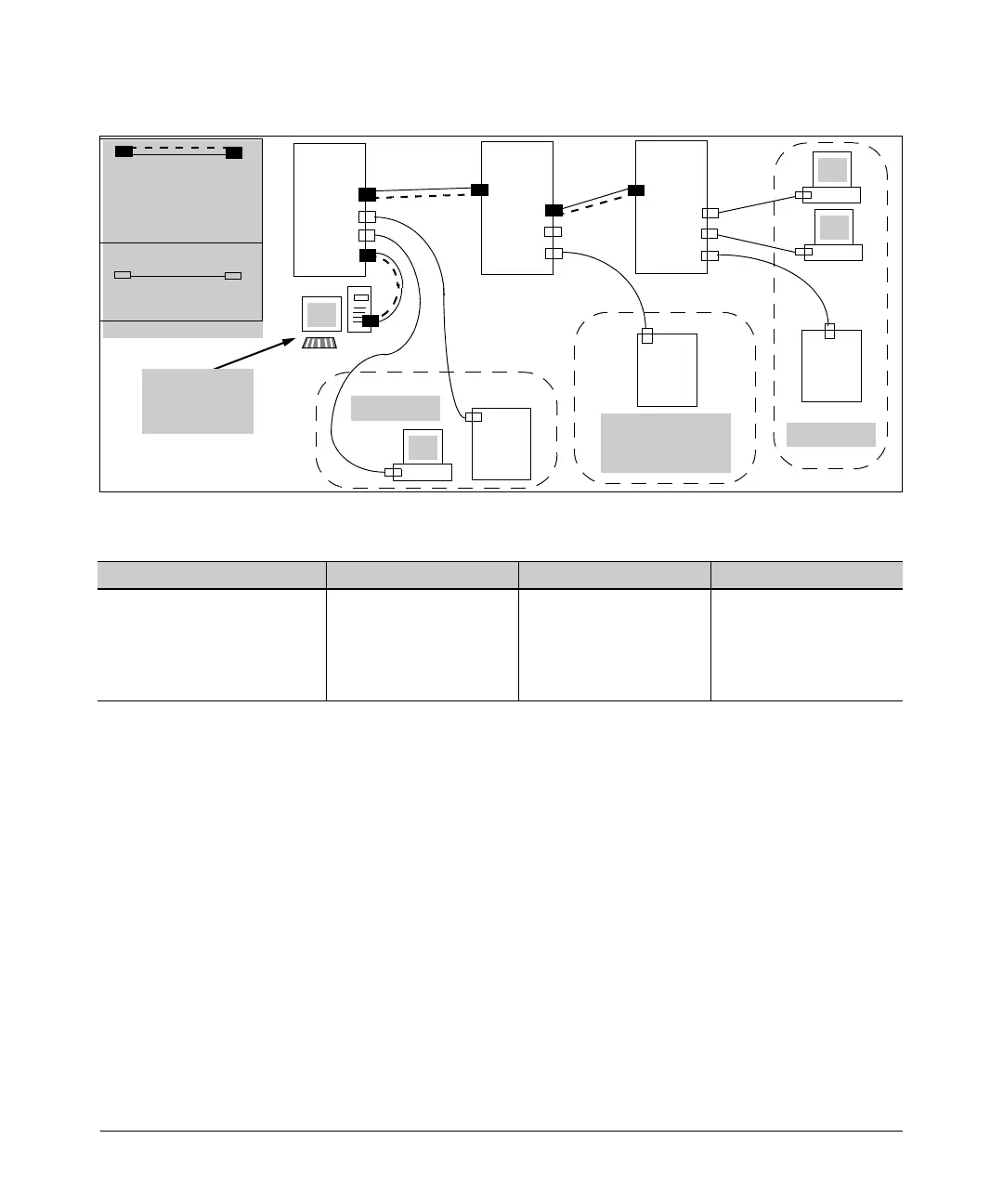

Figure 1-34. Example of Management VLAN Control in a LAN
Table 1-7. VLAN Membership in Figure 1-34
Preparation
1. Determine a VID and VLAN name suitable for your Management VLAN.
2. Plan your Management VLAN topology to use HP switches that support
this feature. (Refer to page 1-50.) The ports belonging to the Management
VLAN should be only the following:
• Ports to which you will connect authorized management stations
(such as Port A7 in figure 1-34.)
• Ports on one switch that you will use to extend the Management VLAN
to ports on other HP switches (such as ports A1 and B2 or B4 and C2
in figure 1-34 on page 1-52.).
Hubs dedicated to connecting management stations to the Management VLAN
can also be included in the above topology. Note that any device connected
to a hub in the Management VLAN will also have Management VLAN access.
Switch
A
3
Port A1
Port A3
Port A6
Port A7
4
1
Switch
B
Port B2
Port B4
Port B5
Port B9
Switch
C
Port C2
Port C3
Port C6
Port C8
Server
Server
Server
2
Links with Ports
Configured as Members of
the Management VLAN
and other VLANs
Links Not Belonging to the
Management VLAN
System
Management
Workstation
Marketing
Shipping
System Server
(on the
DEFAULT_VLAN)
Switch A1 A3 A6 A7 B2 B4 B5 B9 C2 C3 C6 C8
Management VLAN (VID = 7) Y NNYYYNNY NNN
Marketing VLAN (VID = 12) NNNNNNNNNYYY
Shipping Dept. VLAN (VID = 20) N YYNNNNNNNNN
DEFAULT-VLAN (VID = 1) YYYYYYYYYYYY
