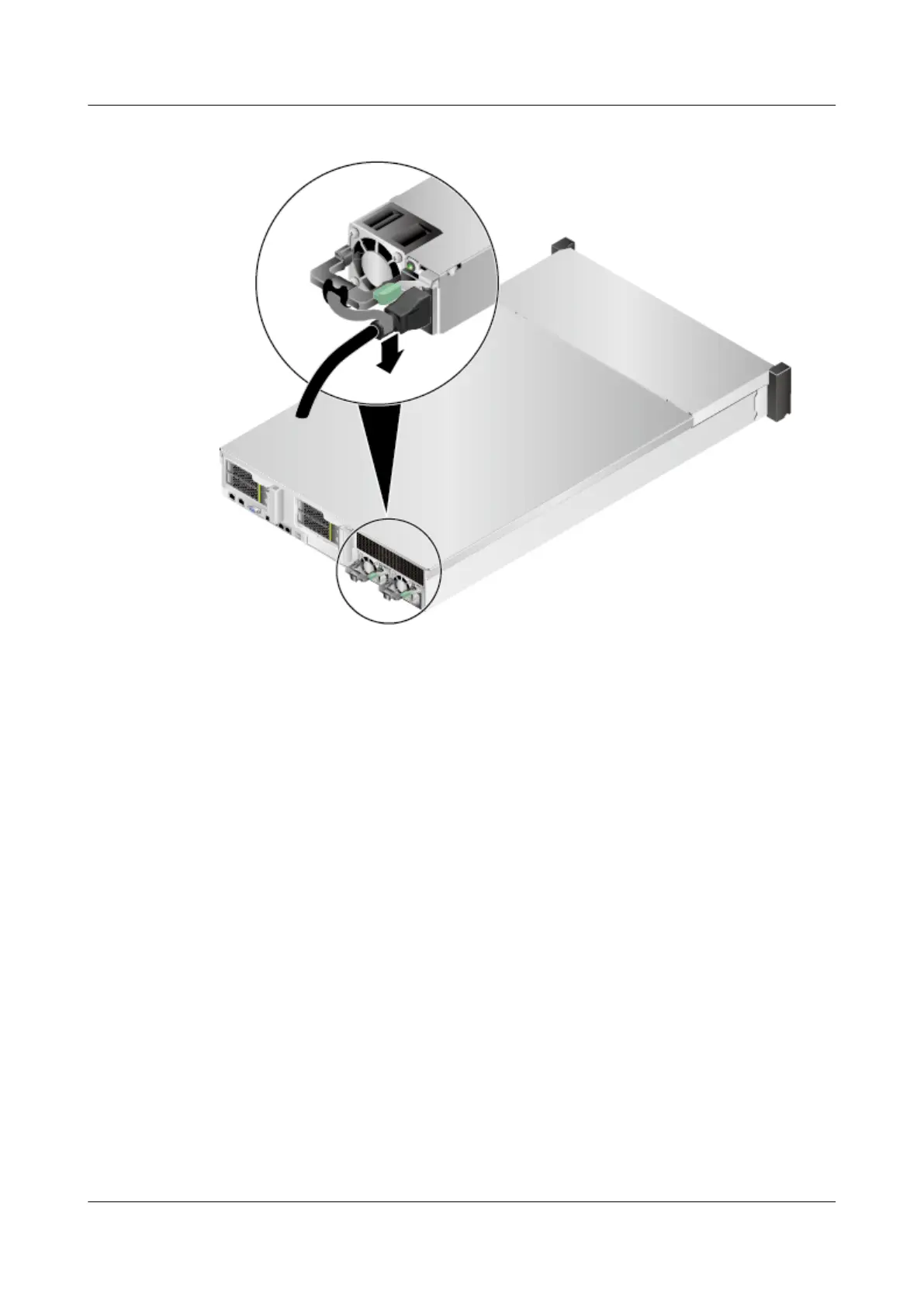

Figure 4-24 Securing a power cable
Step 4 Insert the other end of the power cable into the AC power socket on the cabinet. The AC
power socket is located horizontally at the rear of the cabinet. Select a jack on the power
socket for connection.
Step 5 Bind the power cable to the CMA using cable ties.
----End
Connecting Cables to a DC PSU
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Connect cables to a DC PSU.
Connect the power cables to the wiring terminal on the PSU until the power cables are
latched. See (1) in Figure 4-25.
l Connect the OT terminal on the negative power cable (black) to the NEG(-) wiring
terminal on the PSU.
l Connect the OT terminal on the positive power cable (blue) to the RTN(+) wiring
terminal on the PSU.
Loosen and remove the screw from the ground hole, connect one end (OT terminal) of the
ground cable to the removed screw, install the screw on the ground hole, and tighten the
screw. See (2) in Figure 4-25.
