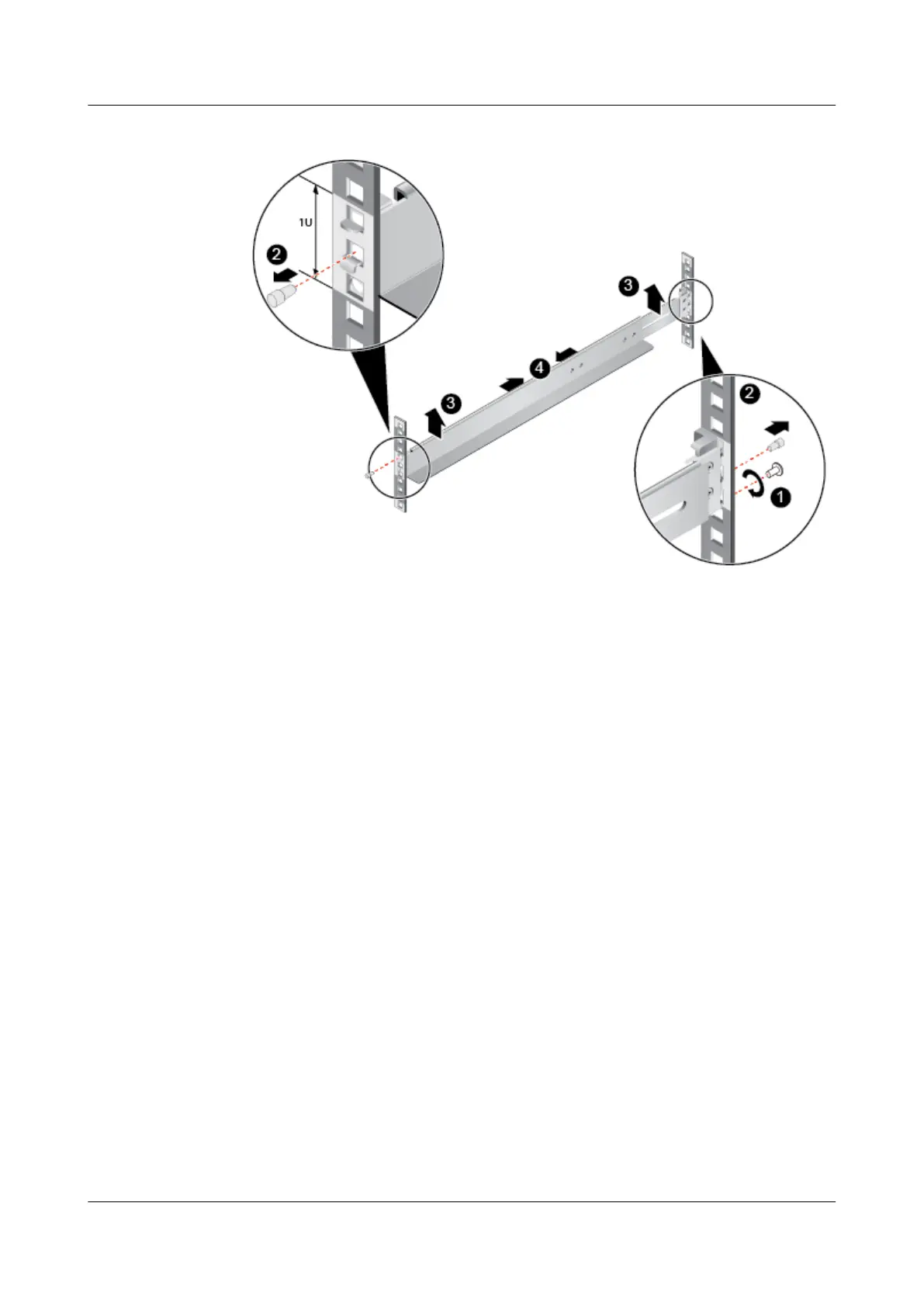

Figure 3-4 Removing an adjustable guide rail
Step 8 Remove the other guide rail in the same way.
----End
3.3.3 Removing the Server and Holding Rails
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Disconnect all power cables and signal cables from the server.
Step 4 Remove the server.
1. Loosen the captive screws on the server panel using a screwdriver. See (1) in Figure 3-5.
2288H V5 Server
User Guide
3 Basic Operations
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 46
